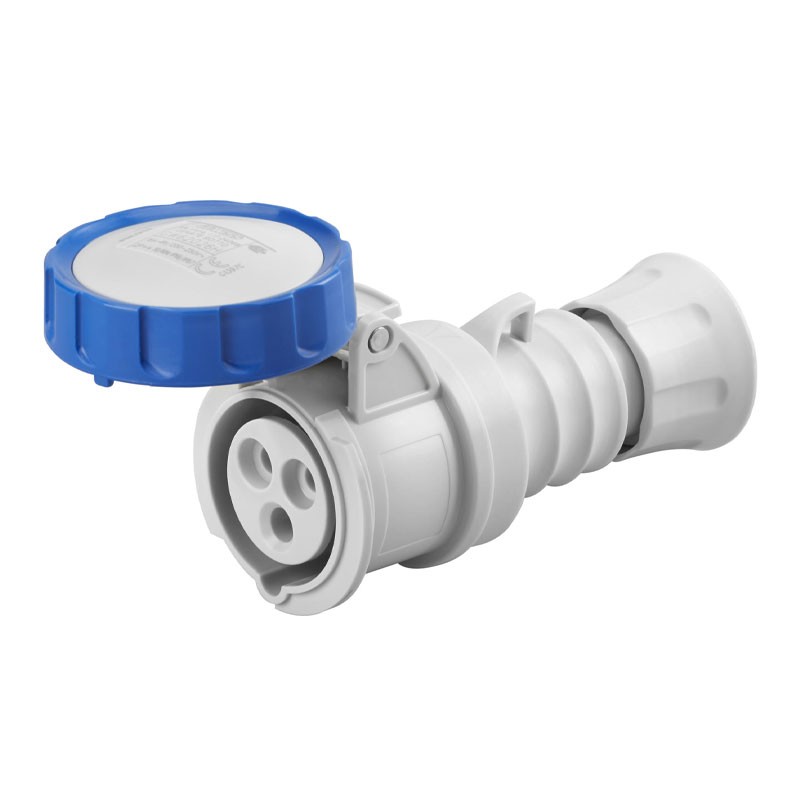

Gewiss mobile socket 2P+E 32A IP67 blue 220V GW62037H
GEW GW62037H
8011564798663
Gewiss straight HP mobile socket, with the following characteristics:
- Rated voltage: 200 - 250V
- Frequency: 50/60 Hz
- Rated current 32A
- Poles: 2P+T
- Degree of protection IP67
€20.86
Items Available: 124
: 35
Features:
- Gewiss Series
- Blue color
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 2.5-6 mm² flexible cables - 2.5-10 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Temperature range -25 +55 °C
- Wiring type: screw
- Material Type: Halogen free according to EN 60754-2
- Electrocod code: 2211
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 2000
- Interrupting capacity at 1,1 Un: 40A
- Insulation resistance: > 10 MΩ
- Admissible overload :42A
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 200/250VAC
- Poles: 2P+E
- Degree of protection: IP67
- Installation: Mobile
- Amps: 32A
