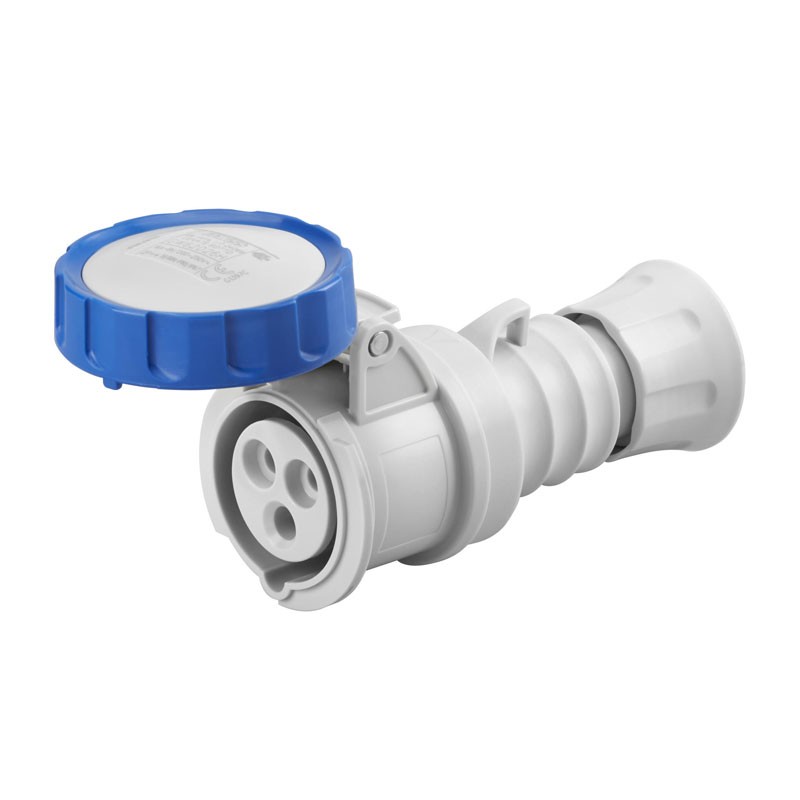

Gewiss mobile socket 2P+E 16A IP67 blue 220V GW62026H
GEW GW62026H
8011564798465
Gewiss straight HP mobile socket, with the following characteristics:
- Rated voltage: 200 - 250V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P+T
- Degree of protection IP67
€12.79
Items Available: 889
: 378
Features:
- Gewiss Series
- Blue color
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 7.5-13.8 mm
- Operating temperature -25 +55 °C
- Wiring type: screw
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 2211
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Interrupting capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Admissible overload :22A
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
The interlock is easy, feels good en closes easy
I prodotti rispettano la descrizione.
Consegna velocissima.
Ottimo dialogo con il personale.
Lo consiglio.
Data sheet
- Type: Sockets CEE
- Voltage: 200/250VAC
- Poles: 2P+E
- Degree of protection: IP67
- Installation: Mobile
- Amps: 16A
