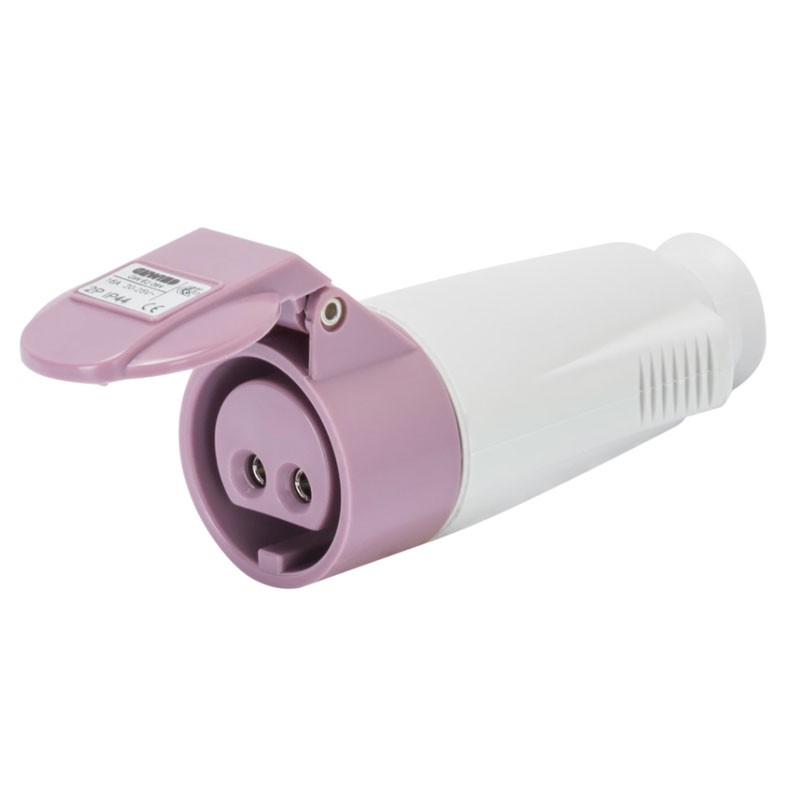

Gewiss mobile socket 2P 16A IP44 purple 24V GW62064
GEW GW62064
8011564008069
Gewiss straight mobile socket, with the following characteristics:
- Nominal voltage: 20-25V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P
- Degree of protection IP44
Gewiss mobile socket 2P 16A IP44 purple 24V GW62064
€12.23
€12.23
Tax included
Tax included
Pay in installments with Klarna
Items Available: 57
Features:
- Gewiss Series
- Violet color
- Shock resistance IK08
- Reference h: /
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature -25 +40 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 2210
- Screw wiring
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Interrupting capacity at 1,1 Un: 156A
- Insulation resistance: > 10 MΩ
- Allowable overload: 22 A
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
There are no reviews
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 20/25VAC
- Poles:
- 2P
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 16A
