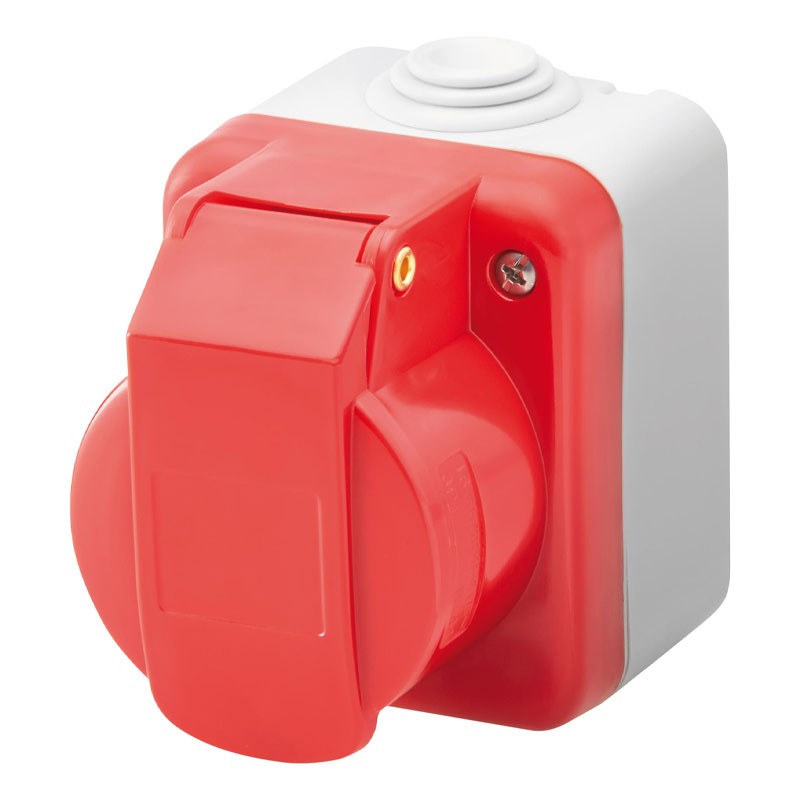

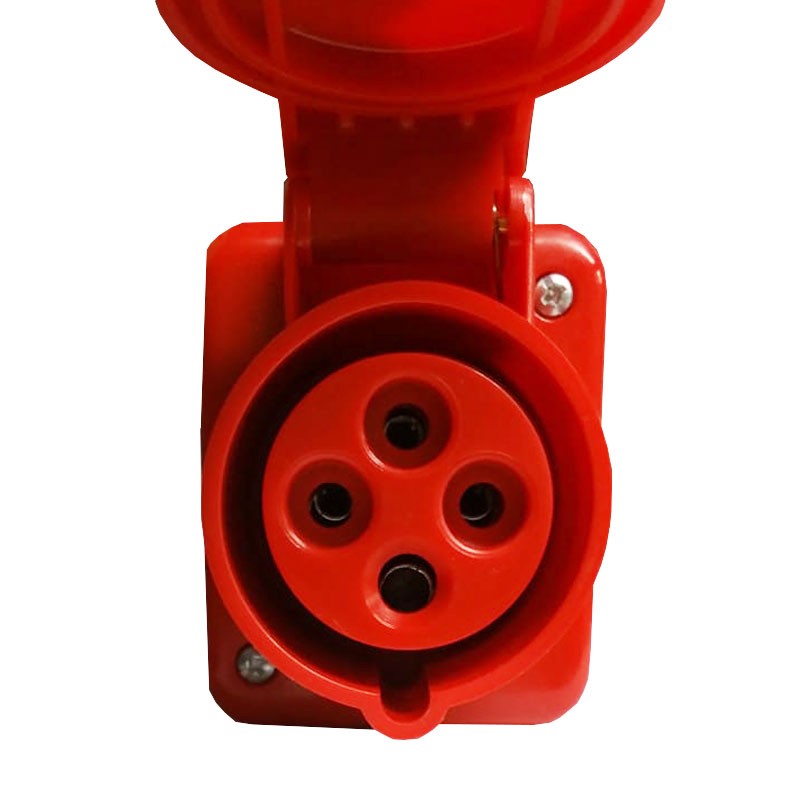

Gewiss industrial wall socket 3P+E 16A IP44 GW26223


GEW GW26223 8011564002128

Gewiss industrial wall socket, with the following characteristics:

  • Rated voltage: 400 Vac
  • Rated current 16A
  • Number of poles: 3P+T
  • Degree of protection IP44
Request info about this product

Gewiss industrial wall socket 3P+E 16A IP44 GW26223

€12.77
€12.77

Gewiss industrial wall socket 3P+E 16A IP44 GW26223

€12.77
Tax included
klarna Pay in installments with Klarna
qty

Gewiss industrial wall socket 3P+E 16A IP44 GW26223

€12.77

Buy it within and receive it from Friday, 26 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Gewiss Series
  • Color: grey RAL 7035
  • N. holes Ø 23 breakable: lateral 1 / On the bottom 1
  • N. holes Ø 23 with cable gland: 1
  • Breakable type: removable with tool
  • Insulation class II
  • Cover screws: corrosion-resistant steel
  • Screw tightening torque: 0.8 Newton/meter

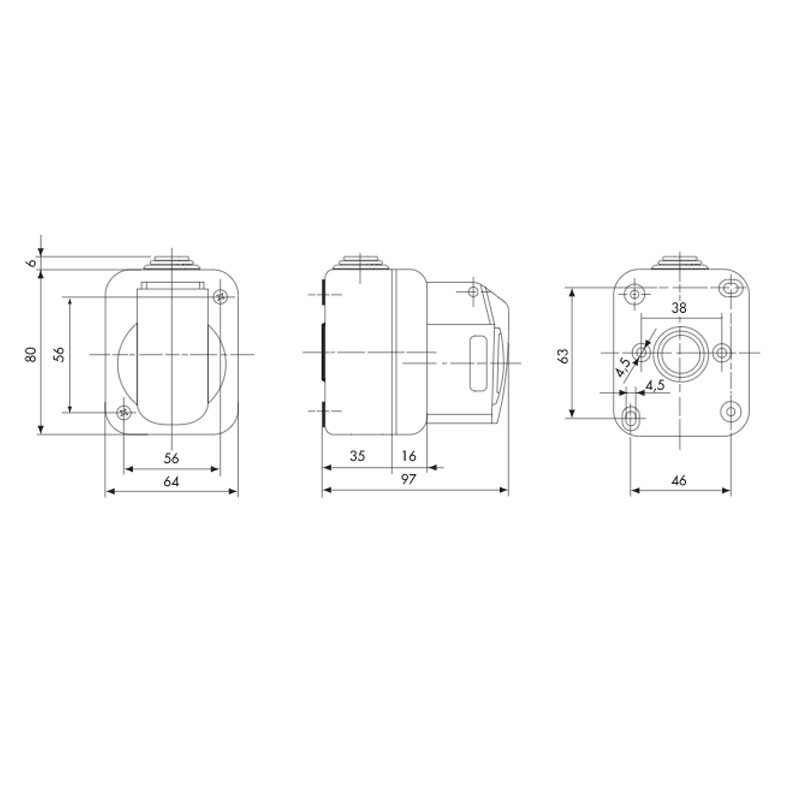

  • External dimensions BxHxP (mm): 64x80x97
  • Reference h: 6
  • Glow wire resistance: 650 °C
  • Thermopressure with ball: 70 °C
  • Reference standard: IEC 309
  • Installation temperature: -25 +60 °C
  • Electrocod code: 2210
  • Ware number: 85366990

Data sheet

Type:
Sockets CEE
Voltage:
220/250VAC
Poles:
3P+T
Degree of protection:
IP44
Installation:
Wall-mounted
Amps:
16A
