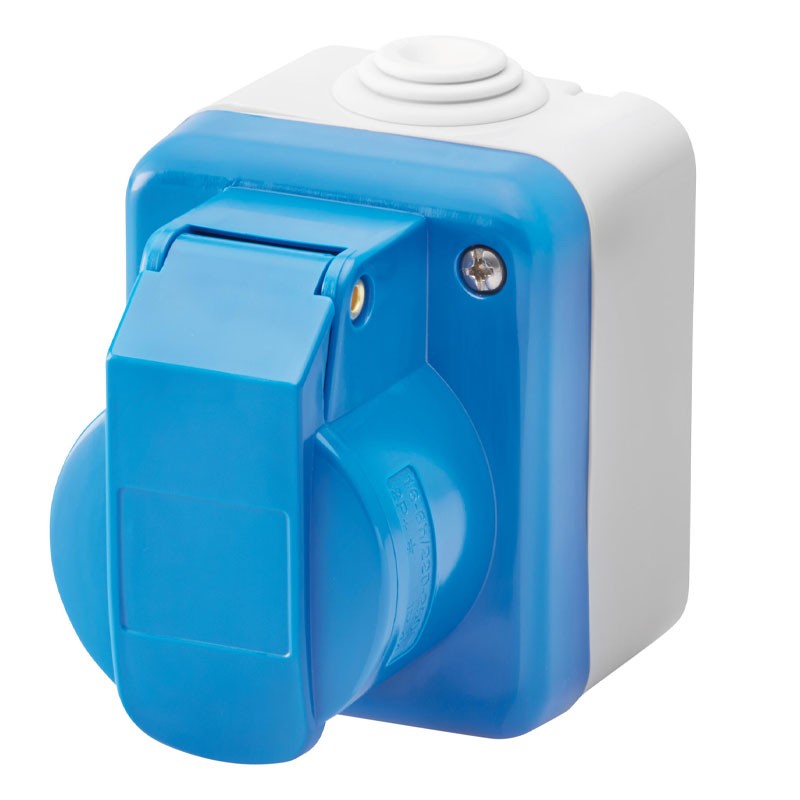

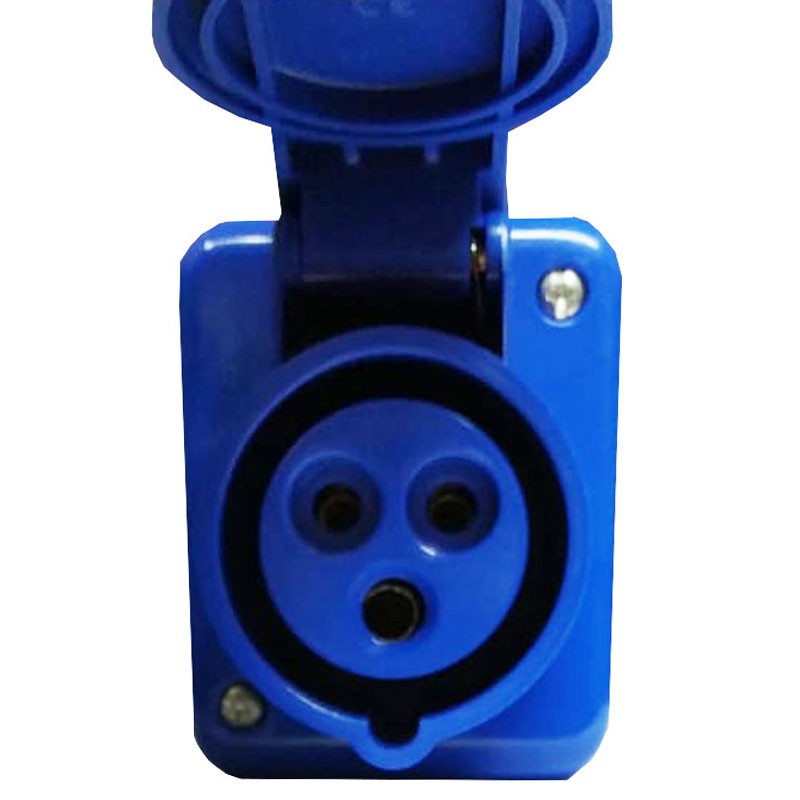

Gewiss industrial wall socket 2P+E 16A IP44 GW26222
GEW GW26222
8011564002111
Gewiss industrial wall socket, with the following characteristics:
- Nominal voltage: 230 Vac
- Rated current 16A
- Number of poles: 2P+T
- Degree of protection IP44
€12.11
Items Available: 162
: 53
Features:
- Gewiss Series
- Color: grey RAL 7035
- N. holes Ø 23 breakable: lateral 1 / On the bottom 1
- N. holes Ø 23 with cable gland: 1
- Breakable type: removable with tool
- Insulation class II
- Cover screws: corrosion-resistant steel
- Screw tightening torque: 0.8 Newton/meter

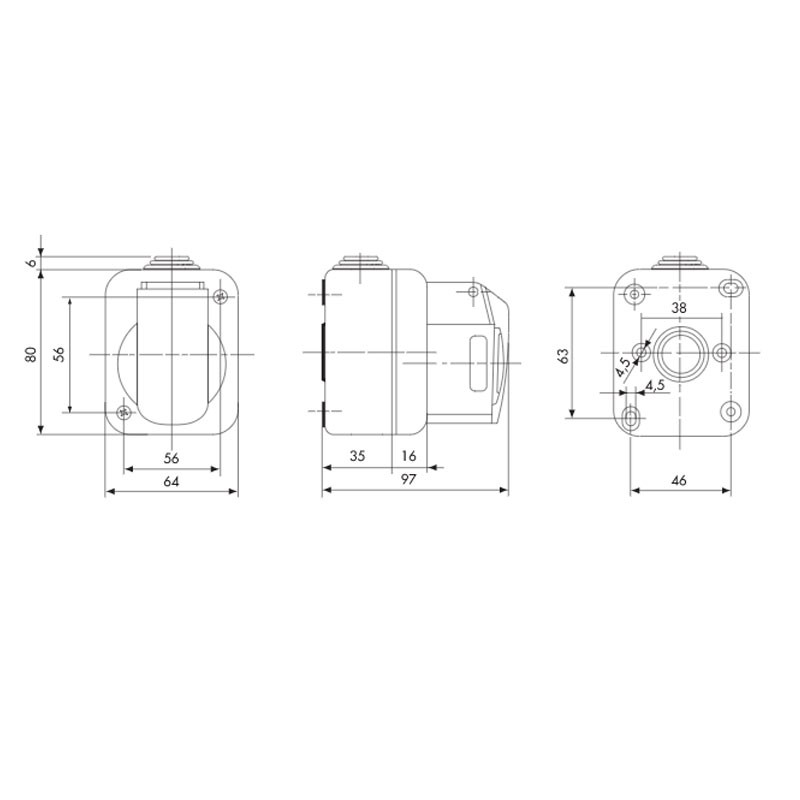

- External dimensions BxHxP (mm): 64x80x97
- Reference h: 6
- Glow wire resistance: 650 °C
- Thermopressure with ball: 70 °C
- Reference standard: IEC 309
- Installation temperature: -25 +60 °C
- Electrocod code: 2210
- Ware number: 85366990
Data sheet
- Type: Sockets CEE
- Voltage: 230V
- Poles: 2P+E
- Degree of protection: IP44
- Installation: Wall-mounted
- Amps: 16A
