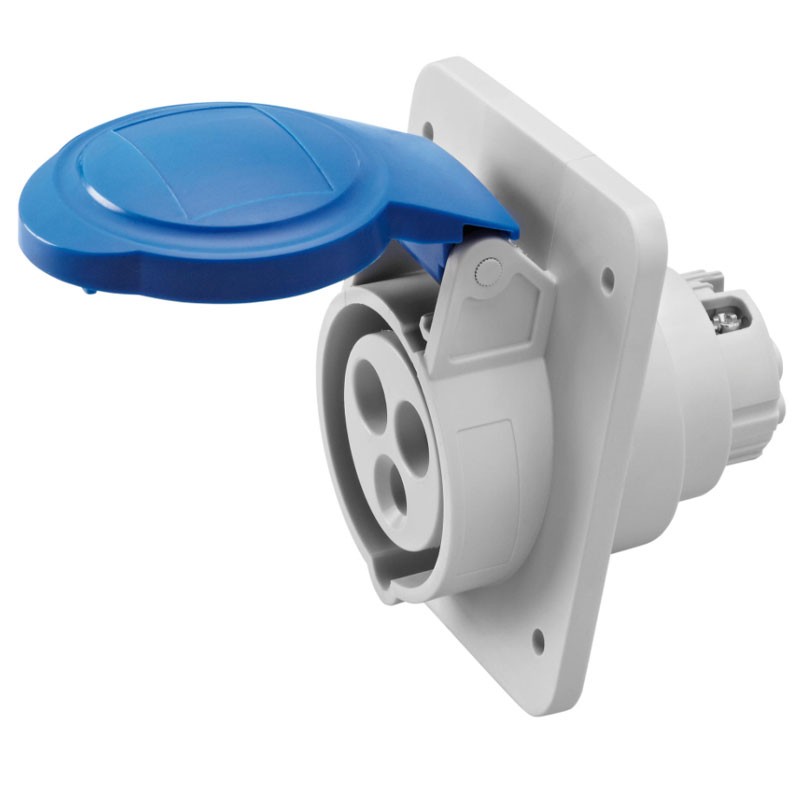

Gewiss flush-mounted socket 2P+E 32A IP44 blue 220V GW62216H
GEW GW62216H
8011564799073
Gewiss 10° HP recessed fixed socket, with the following features:
- Rated voltage 200 - 250V
- Number of poles 2P+T
- Rated current 32A
- Degree of protection IP44/IP54
- Blue color
Gewiss flush-mounted socket 2P+E 32A IP44 blue 220V GW62216H
€10.50
€10.50
Tax included
Tax included
Pay in installments with Klarna
Items Available: 41
Features:
- Gewiss Series
- Shock resistance: IK09
- Reference h:6

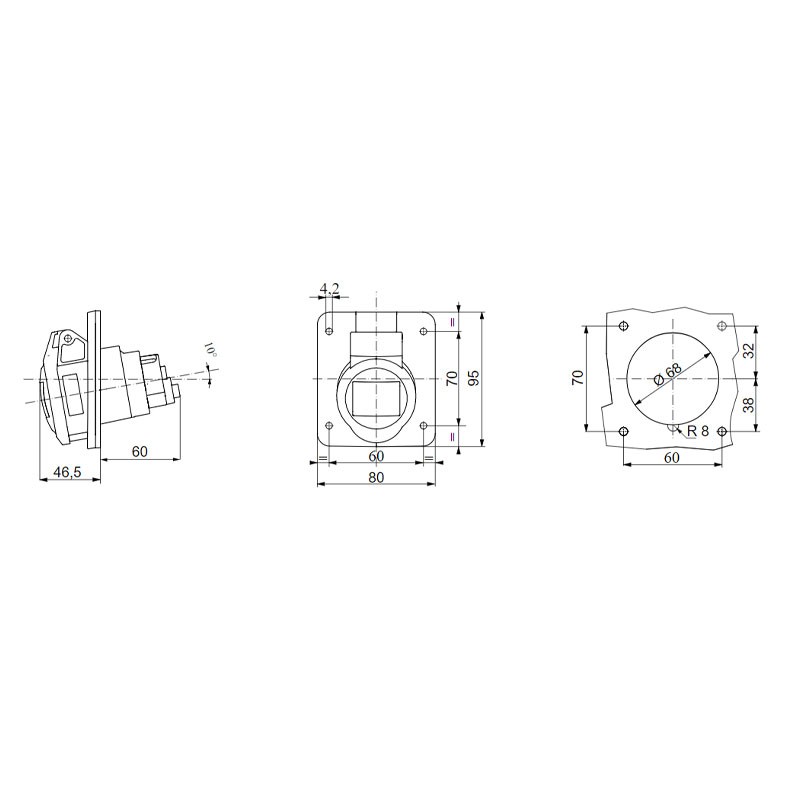

- Flange dimensions (mm) 95x80
- Frequency 50/60 Hz
- Terminal clamping capacity: 2,5-6 mm² flexible cables - 2,5-10 mm² rigid cables
- Operating temperature -25 +55 °C
- Wiring type: screw
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 2210
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- N. Total operations: > 2000
- Admissible overload: 42A
- Breaking capacity at 1.1 Un: 40A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number 85366990
Si tratta di un componente di ottima qualità.
Ottimo fornitore consegna rapida e precisa
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 220/250VAC
- Poles:
- 2P+T
- Degree of protection:
- IP44
- Installation:
- Recessed
- Amps:
- 32A
