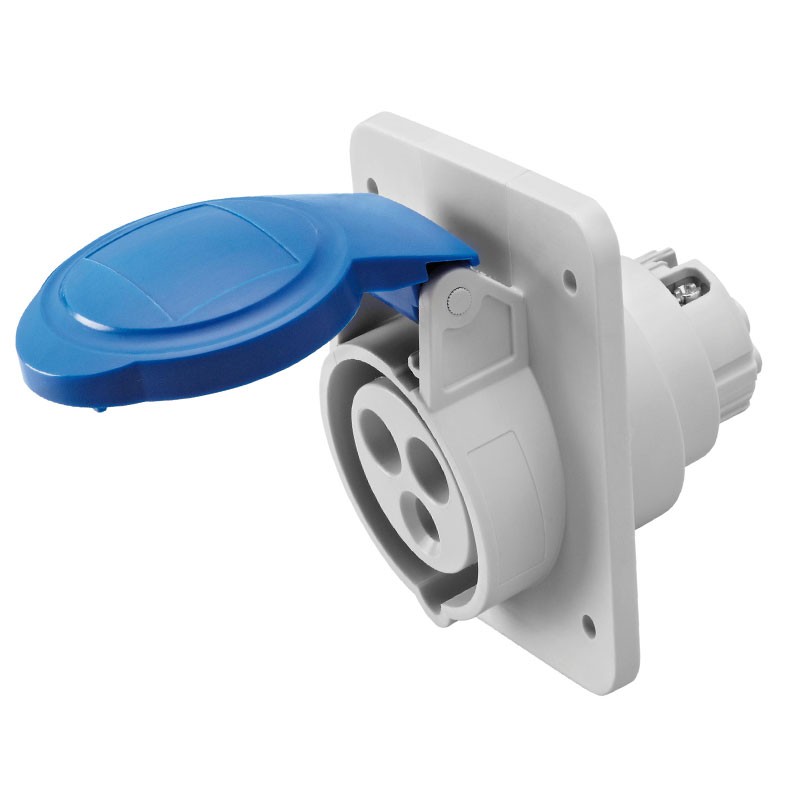

Gewiss flush-mounted socket 2P+E 16A IP44 blue 220V GW62205H
GEW GW62205H
8011564798878
Gewiss 10° HP recessed fixed socket, with the following characteristics:
- Nominal voltage: 200 - 250V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P+T
- Degree of protection IP44/IP54
€7.04
Items Available: 585
: 275
Features:
- Gewiss Series
- Blue color
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Type Material: Halogen free according to EN 60754-2 standard
- Electrocod code: 2210
- Screw wiring

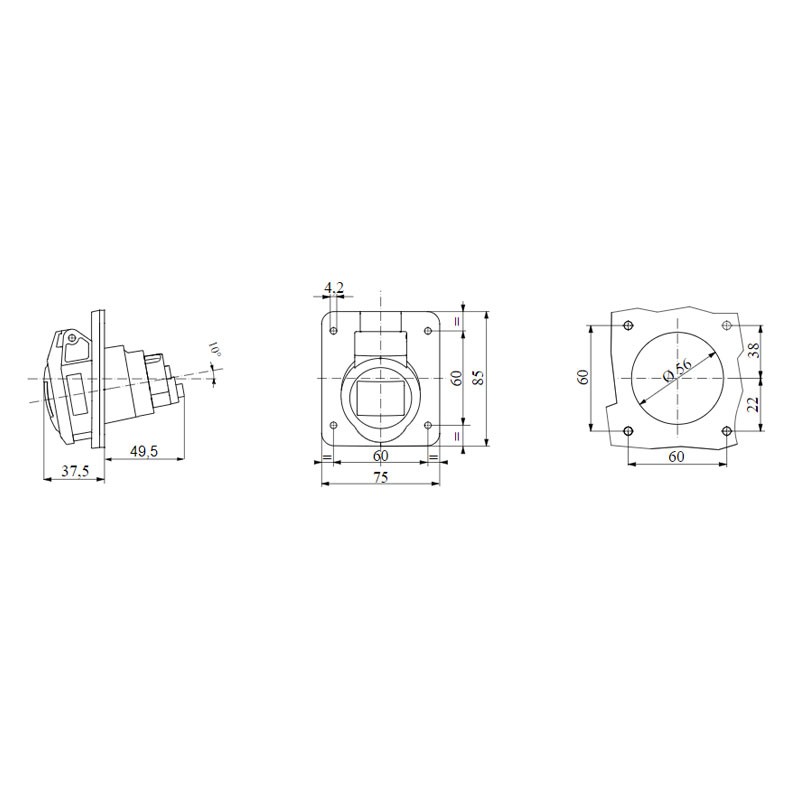

- Flange dimensions (mm): 85x75
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Interrupting capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Allowable overload: 22 A
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
Materiale ottimo rispondente alle caratteristiche
Ottimo fornitore consegna rapida e precisa
Data sheet
- Type: Sockets CEE
- Voltage: 200/250VAC
- Poles: 2P+E
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
