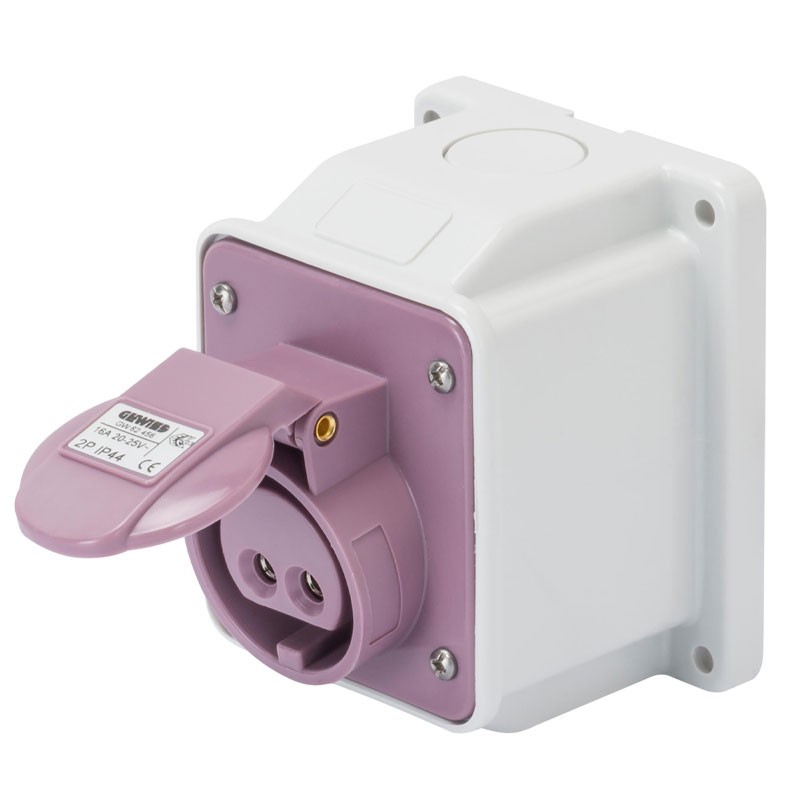

Gewiss fixed wall socket 2P 16A IP44 purple 24V GW62456
GEW GW62456
8011564008427
Gewiss 10° fixed wall outlet with the following features:
- Nominal voltage: 20-25V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P
- Degree of protection IP44
€18.14
Items Available: 61
: 4
Features:
- Gewiss Series
- Admissible overload: 22A
- Interrupting capacity at 1.1 Un: 20A
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Insulation resistance: > 10 MΩ
- Purple color
- Impact resistance: IK08
- Wiring type: screw
- N. Total maneuvers > 5000
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Reference h: /
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature: -25 +40 °C
Beau produit, semble de bonne qualité, à boir à l'usage.
Très bien, solide, étanche, je recommande.
Prix raisonnable et bonne qualité, à recommander.
Data sheet
- Type: Sockets CEE
- Voltage: 20/25VAC
- Poles: 2P
- Degree of protection: IP44
- Installation: Wall-mounted
- Amps: 16A
