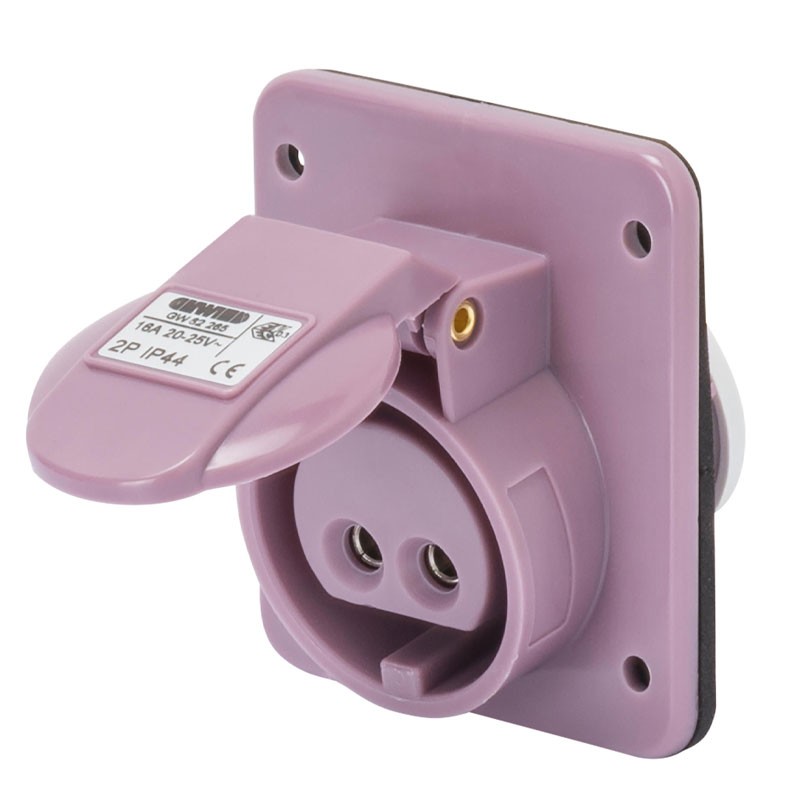

Gewiss fixed recessed socket 2P 16A IP44 purple 24V GW62265
GEW GW62265
8011564008243
Gewiss 10° recessed fixed socket, with the following features:
- Rated voltage 20-25V
- Number of poles 2P
- Nominal current 16A
- Degree of protection IP44
- Violet color
Gewiss fixed recessed socket 2P 16A IP44 purple 24V GW62265
€11.70
€11.70
Tax included
Tax included
Pay in installments with Klarna
Items Available: 87
Features:
- Gewiss Series
- Shock resistance: IK08
- Reference h:/

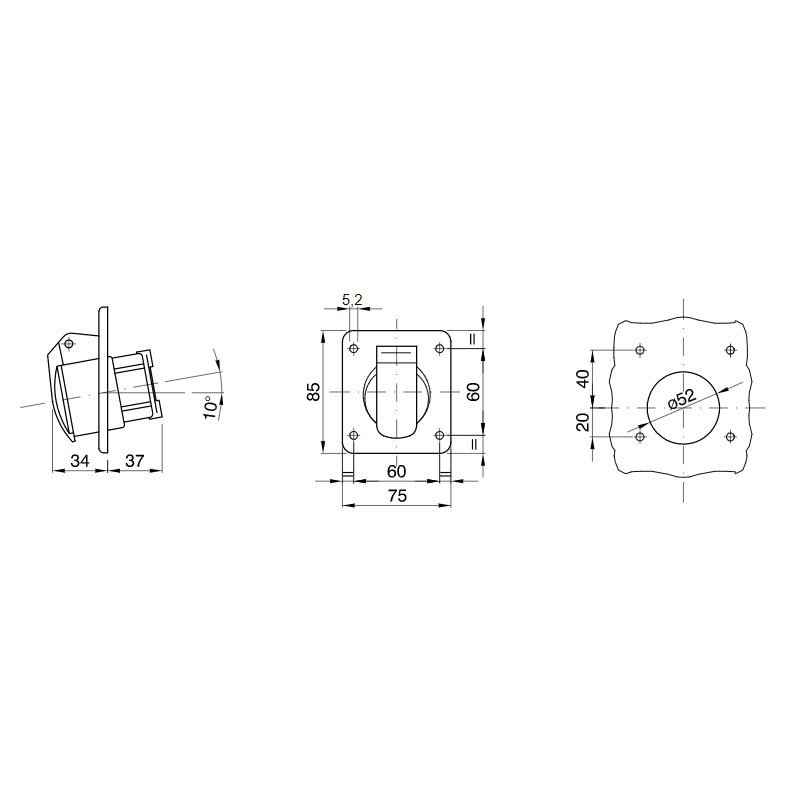

- Flange dimensions (mm) 85x75
- Frequency 50/60 Hz
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Operating temperature -25 +40 °C
- Wiring type: screw
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 2210
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- N. Total operations: > 5000
- Admissible overload: 22A
- Breaking capacity at 1.1 Un: 20A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number 85366990
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 20/25VAC
- Poles:
- 2P
- Degree of protection:
- IP44
- Installation:
- Recessed
- Amps:
- 16A
