Palazzoli Industrial Socket MULTIMAX 2P+E 32A 230V IP67 730226 CEE
PAL 730226
8014950036196

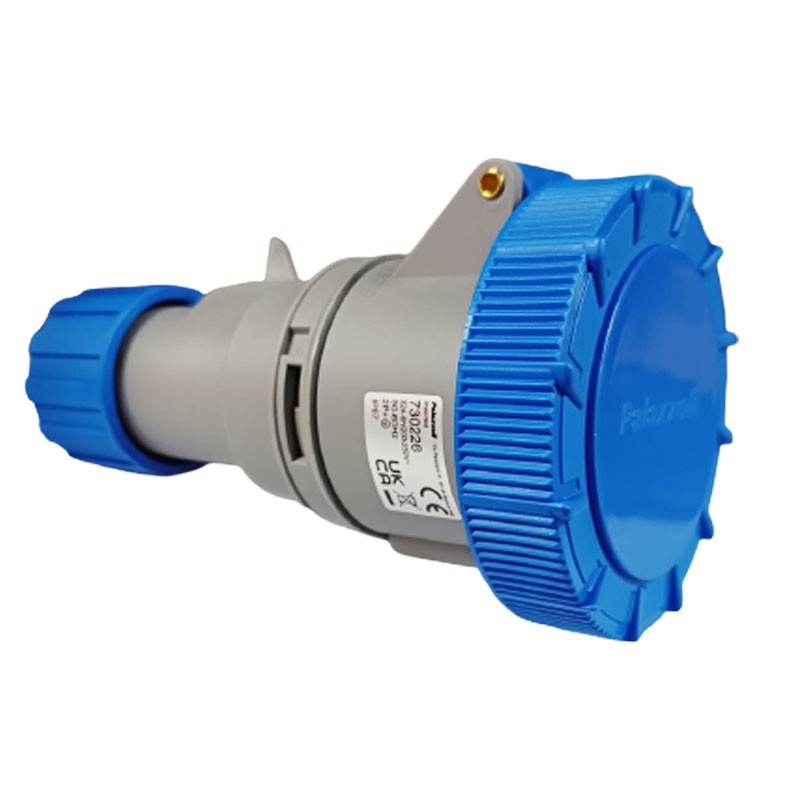

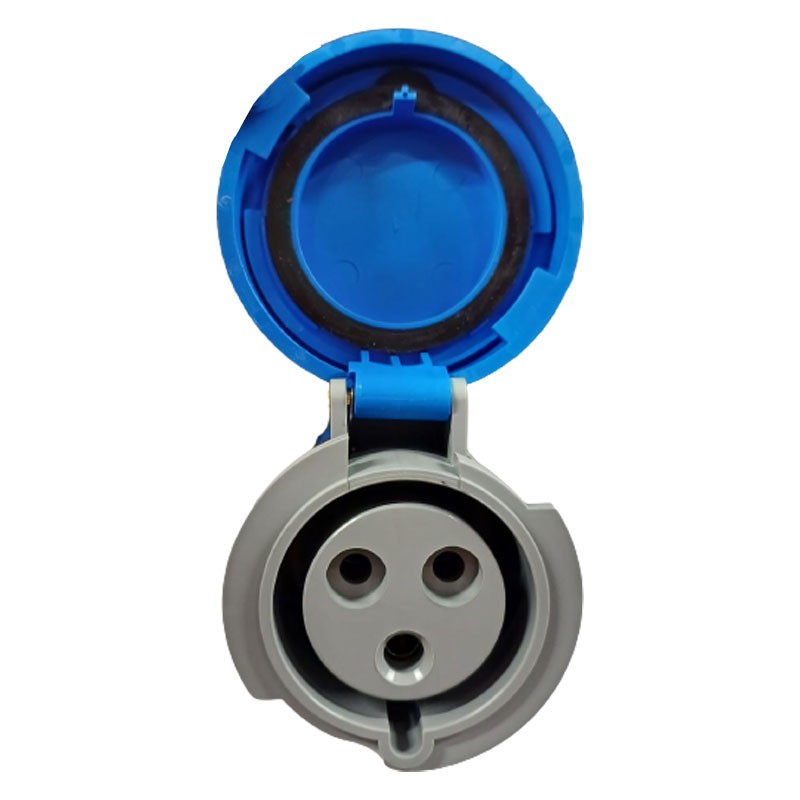

Palazzoli MULTIMAX straight mobile CEE industrial socket with the following characteristics:
- Rated Current: 32 Amps
- Power Supply Voltage: 230V 50/60Hz
- Number of Poles: 2P+T
- Rated insulation voltage: 690V
- Degree of Protection: IP67
€17.28
Items Available: 6
: 2
Features:
- Time Ref: 6h
- Body material: Palazzoli Recyclable Technopolymer
- Alveolus/pin treatment Nickel plating
- Color Gray
- Input cable diameter 11/17.5 mm
- Degree of protection: IP67
- Impact resistance: IK08 according to IEC/EN 62262
- Glow wire resistance 850°C
- Self-extinguishing according to UL94 V-2
- Terminal type Screw terminals - direct clamping
- Conductor cross-section Min: 2.5 mm² ;Max: 10 mm²
- Terminal tightening torque 1.8 Nm
- Temp. Operating Environment Min: -25°C ;Max: +50°C
- Temp. Storage Environment Min: -30°C ;Max: +70°C
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 230V
- Poles: 2P+E
- Degree of protection: IP67
- Installation: Mobile
- Amps: 32A
