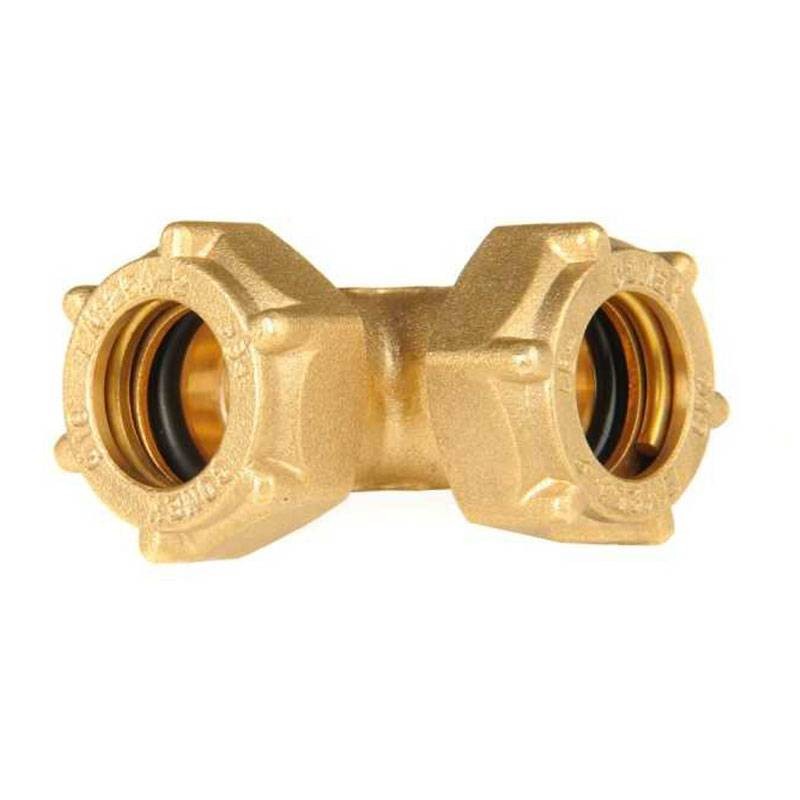

IBP Elbow fitting 90 degrees F/F D 16 mm brass IG401 01600000
IBP IG401 01600000
5052740019502
IBP Banninger Conex O-Ring elbow fitting for water and gas with the following characteristics:
- Connection: Female/Female
- Diameter: 16 mm
- Opening: 90 degrees
- O-Ring seal
- Material: Brass
€6.34
Items Available: 23
: 2
Features:
- Tapered threads according to EN 10226-1
- Metal seal on the thread: anaerobic sealants or Teflon are recommended
- Avoid applying excessive tightening torque during installation
- Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
- Fitting material Brass CW617N-DW
- Fittings reference standard EN 1254-2, EN 1254-4
- O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
- Threaded ends according to EN 10226-1
- Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3
There are no reviews
Data sheet
- Diameter: 16mm
- Type: Fittings
- Connection: F/F
- Model: 90 Degrees
- Material: Brass
Elbow
