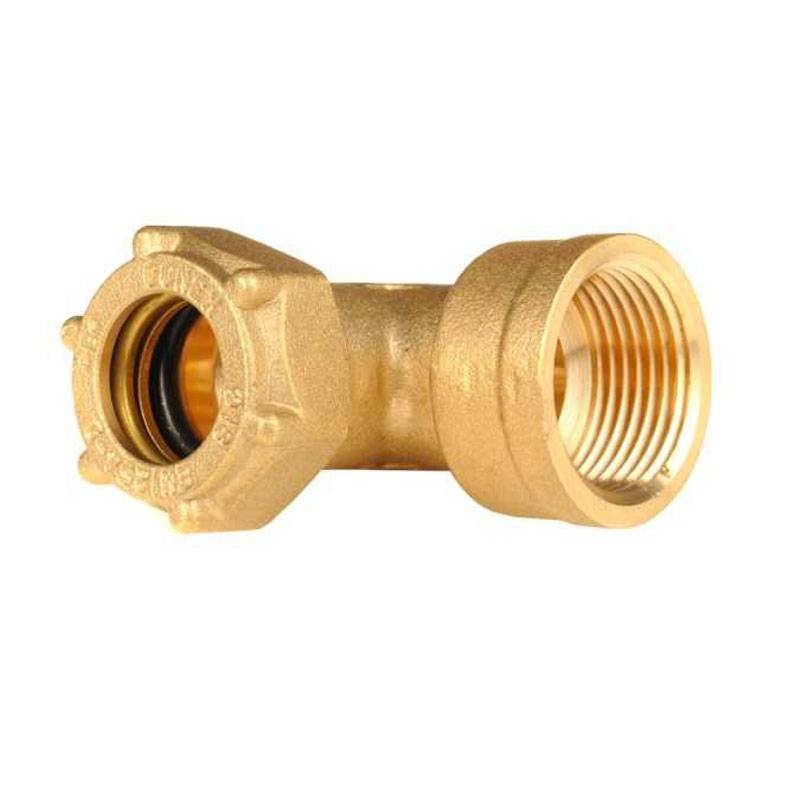

IBP 90-degree elbow threaded fitting F/F D 14 mm x 1/2 IG403 01404000
IBP IG403 01404000
5052740020508
IBP Banninger Conex O-Ring threaded elbow fitting for water and gas with the following characteristics:
- Connection: Female/Threaded Female
- Diameter: 14 mm x 1/2
- Opening: 90 degrees
- O-Ring Seal
- Material: Brass
€4.11
Items Available: 81
: 41
Features:
- Tapered threads according to EN 10226-1
- Metal seal on the thread: anaerobic sealants or Teflon are recommended
- Avoid applying excessive tightening torque during installation
- Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
- Fitting material Brass CW617N-DW
- Fittings reference standard EN 1254-2, EN 1254-4
- O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
- Threaded ends according to EN 10226-1
- Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3
There are no reviews
Data sheet
- Diameter: 14mm
- Type: Fittings
- Connection: F/F
- Model: 90 Degrees
- Connections: 1/2 inches
- Material: Brass
Elbow
