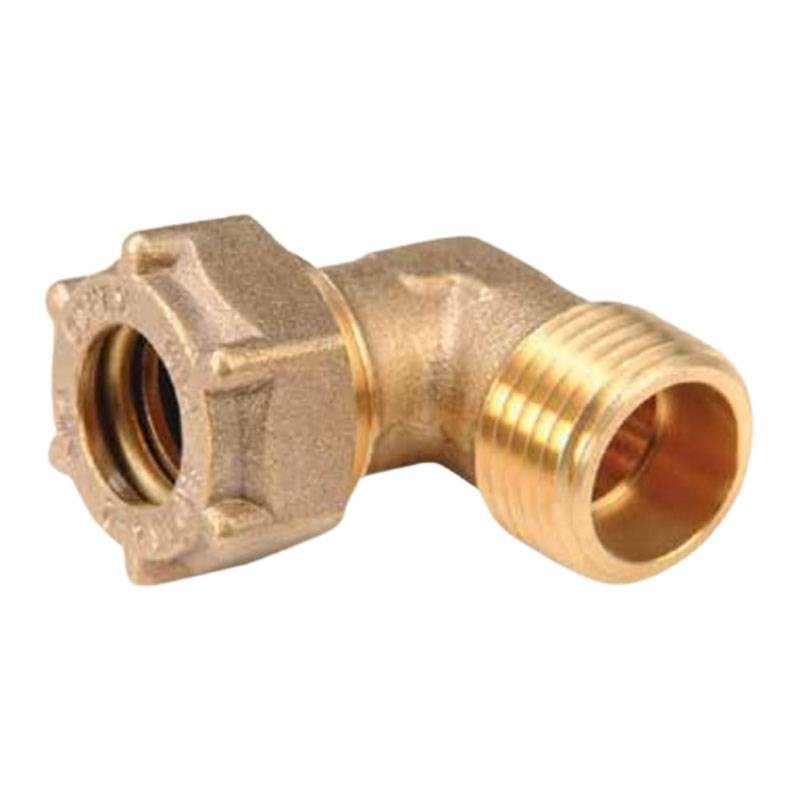

IBP 90 degree elbow fitting F/M 12 mm x 3/8 brass IG403 01203000
IBP IG403 01203000
5052740022106
IBP Banninger Conex O-Ring elbow fitting for water and gas with the following characteristics:
- Connection: Female/Threaded Male
- Diameter: 12 mm x 3/8
- Opening: 90 degrees
- O-ring seal
- Material: Brass
€4.44
Items Available: 40
: 36
Characteristics:
- Tapered threads according to EN 10226-1
- Metal seal on the thread: the use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
- Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
- Fitting material: brass CW617N-DW
- Fittings reference standard: EN 1254-2, EN 1254-4
- O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
- Threaded ends according to EN 10226-1
- Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3
There are no reviews
Data sheet
- Diameter: 12mm
- Type: Fittings
- Connection: M/F
- Model: Elbow
- Connections: 3/8 inches
- Material: Brass
