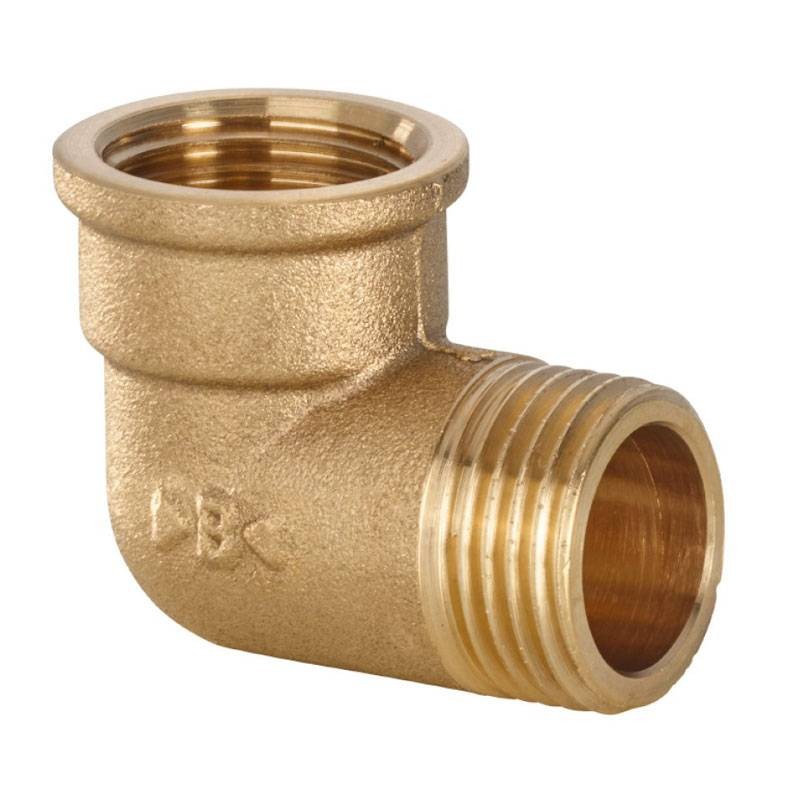

90-degree elbow fitting for IBP pipes M/F 1 1/4 brass 8092 M10000000
IBP 8092 M10000000
5052740168217
90-degree elbow fitting for IBP Banninger 8000 Series M pipes with the following features:
- Connection: Male/Female
- Diameter: 1 1/4 inch
- Material: Brass
The 8000 M Series is a brass pipe fitting system with a cylindrical thread.
€7.08
Items Available: 53
: 35
Main advantages:
- Brass screw-on fittings
- Cylindrical threads
- Use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
Applications: Sanitary Water, Drinking Water, Heating, Cooling, Compressed Air (oil-free), Solar.
Operating parameters:
- Sanitary Water, Drinking Water, Heating: -20 / +110 °C at 25 bar 3/4, 16 bar 2 bar, 10 bar 4
- Cooling: 0/ +30°C at 25 bar 3/4, 16 bar 2 bar, 10 bar 4
- Compressed air (oil-free): 0 / +30 °C at 10 bar
- Solar: -20 / +110 °C at 6 bar
There are no reviews
Data sheet
- Type: Fittings
- Connection: M/F
- Model: 90 Degrees
- Connections: 1-1/4 inches
- Material: Brass
Elbow
