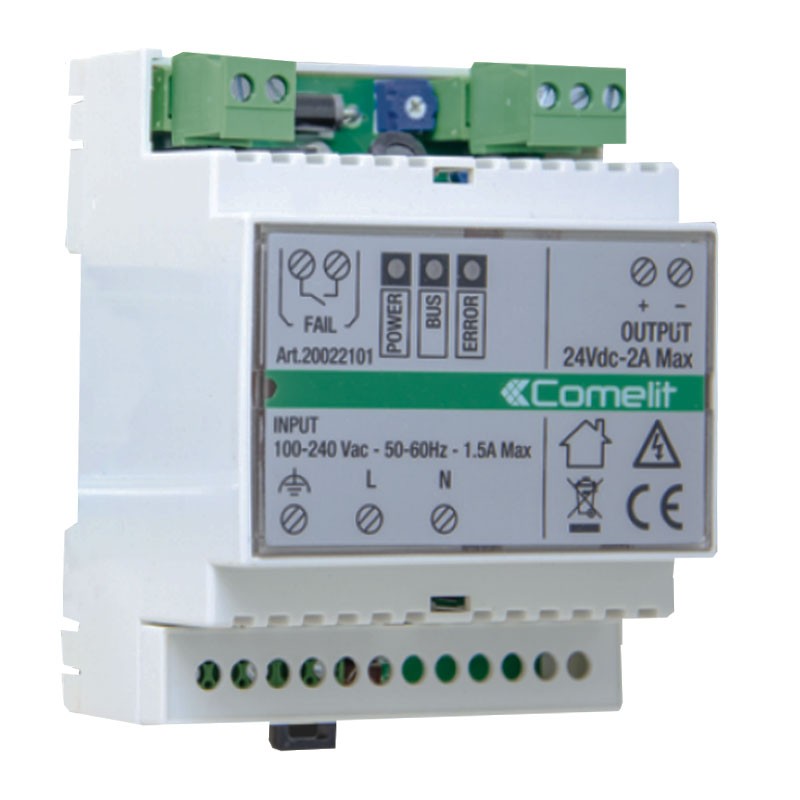

Comelit Switching power supply smilplehome 24VDC 2A on DIN 20022101
COE 20022101
8023903192438
Switching power supply for SimpleHome Comelit system, with the following features:
- Voltage: 24VDC
- Power supply voltage 230V
- Applicable to DIN rail: Yes
- Max current supplied 2A
- Parallel
- Self protected
- Dimensions 71x90x58mm
- 4 DIN modules
- Coating material type: plastic
- Operating temperature (°C): 5 ÷ 40
€125.01
Items Available: 15
: 2
Benefits:
- Provides power to the modules of the SimpleHome BUS system.
- It is able to supply up to 2A and in the case of higher absorption it is possible to connect along the bus more power supplies distributed in different points of the system.
- It has an output relay contact to signal malfunctioning.
Data sheet
- Type: Power supplies
