Comelit Simplehome module to manage loads and consumption, on DIN 20046821
COE 20046821
8023903246933

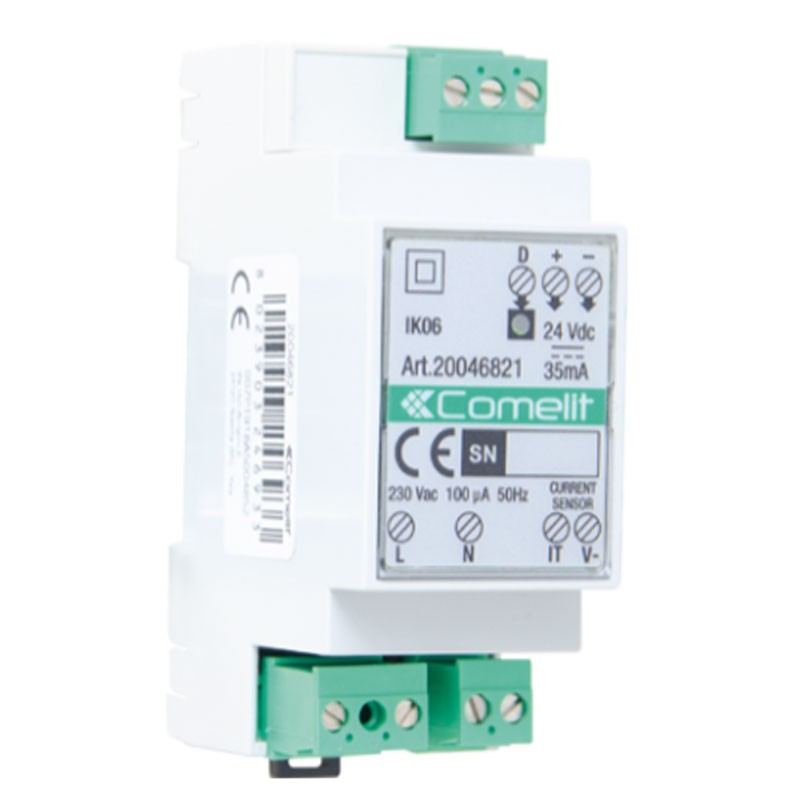

Comelit SimpleHome module, with the following features:
- Suitable for managing loads and consumption
- Maximum measurable power: 10 KW
- Supplied with an external CT (internal diameter 12mm)
- Dimensions 36x90x58mm (2 DIN modules)
- Absorption max 35mA
- Mounting on DIN rail
- Operating temperature (°C): 5 ÷ 40
- Maximum power load control: 10000(mW)
€164.95
Items Available: 1
Other features:
- To be connected to the BUS for measuring the electrical power absorbed or produced in a single-phase 230Vac system.
- For three-phase systems use a 20046821 module for each phase.
- Possibility of programming the release of 8 loads connected on SimpleHome modules as a result of exceeding a predefined power threshold.
- Combined with compatible supervisors, it allows consumption or production data to be displayed in graphs and tables.
- Compatibility: home automation system
There are no reviews
Data sheet
- Type: Modules
