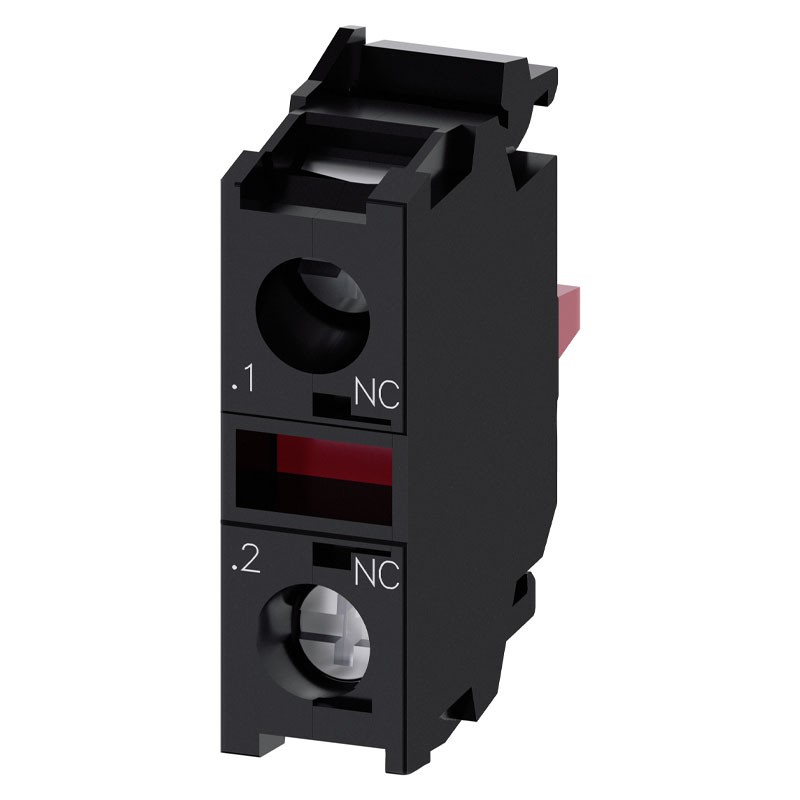

Siemens Sirius ACT contact module 3SU1 1NC screw terminals 3SU14001AA101CA0

Siemens
Siemens
SIE 3SU14001AA101CA0 4011209950887

Siemens Sirius contact module with 1 normally closed (NC) contact and positive opening function. Ideal for industrial use, front plate mounting and screw terminal connection, with the following features:

  • Number Contacts: 1 NC (normally closed) with positive opening function

  • Mounting: Front plate, suitable for plastic and metal panels

  • Compatible with voltages: AC/DC from 5 to 500 V

  • Rated thermal current: 10 A

  • Degree of protection: IP40 (enclosure) - IP20 (terminals)

  • Screw terminals, secure connection with tightening torque 0.8-0.9 Nm

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Sirius ACT contact module 3SU1 1NC screw terminals 3SU14001AA101CA0
€2.77
€2.77

€2.77
Tax included
Calculate shipping cost
Items Available: 830
Further availability of the manufacturer
€2.77

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Contact module high performance in safety and reliability

The Sirius ACT 3SU1 NC contact module is designed for applications in industrial environments where safe circuit status signaling is required. With its positive opening function, it is perfect for emergency and safety circuits.

High resistance to shock and vibration

Approved for rail and industrial applications, the module withstands shock up to 15g and vibration up to 5g. Supports up to 3,600 switchings/hour, ensuring reliability in mechanically stressed environments.

Easy installation and full compatibility

Compatible with rigid and flexible conductors from 0.5 to 1.5 mm² and AWG 18-14 cables. Front mounting is quick and allows integration into panels with plastic or metal enclosures.

Technical Specifications Siemens NC Contact Module

Contact type 1 NC (normally closed)
Positive opening function Yes
Mounting On front plate
Rated insulation voltage 500 V
Rated thermal current 10 A
Operating voltage (AC/DC) 5 ÷ 500 V
Maximum operating frequency 3,600 cycles/h
Protection IP40 (enclosure), IP20 (terminals)
Operating temperature range -25 ÷ +70 °C
Connectivity Screw terminals
Rigid/flexible: 2x (0.5-1.5 mm²)
AWG: 2x (18-14)
Dimensions 33.2 x 9.8 x 27.7 mm
Certifications CE, UL, CSA - RoHS - EPD
