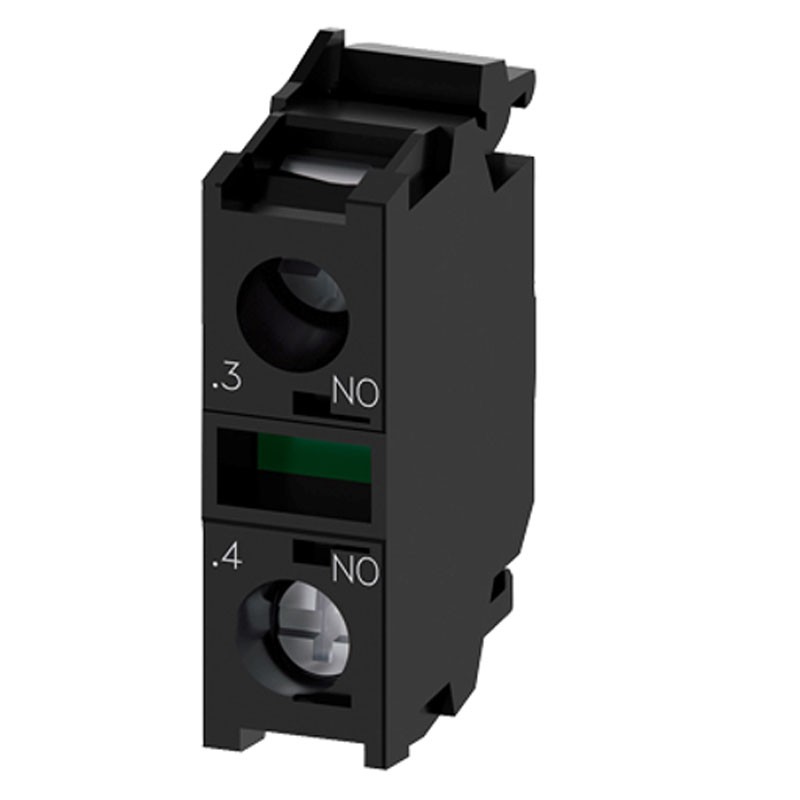

Siemens Sirius ACT contact module 3SU1 1NO screw terminal 3SU14001AA101BA0
SIE 3SU14001AA101BA0
4011209937215
Siemens Sirius ACT 3SU1 contact module, for front installation, with screw terminals. Designed for SIRIUS ACT control systems, compatible with AC/DC applications up to 500 V, with the following characteristics:
-
Contact number: 1 NO (normally open)
-
Mounting on: Front plate, compatible with plastic/metal boxes
-
Rated insulation voltage: 500 V
-
Rated thermal current: 10 A
-
Degree of protection: IP40 enclosure - IP20 terminals
€2.77
Items Available: 1681
: 49
Contact module reliability and versatility for every control panel
The Sirius ACT 3SU1 contact module is an ideal solution for implementing auxiliary contacts in control circuits. With its 1 NO configuration, it is perfect for sending signals or activating secondary loads, ensuring high operating life and reliable performance even at high switching frequencies (up to 3,600 cycles/h).
Superior electrical performance in AC and DC
Compatible with operating voltages from 5 to 500 V AC/DC, it offers excellent current ratings up to 10 A in AC-12 and 6 A in AC-15. In addition, quality silver alloy contact materials ensure reliability even at low loads.
Easy and safe installation
Front-plate mounting makes it ideal for switchboards and industrial pushbuttons. Screw terminals accept rigid and flexible conductors, including ferrule, and ensure secure tightening with 0.8-0.9 Nm torque.
Technical Specifications Siemens Contact Module
| Contact type | 1 NO (normally open) |
|---|---|
| Mounting | On front plate |
| Rated insulation voltage | 500 V |
| Rated thermal current | 10 A |
| Max. switching frequency | 3,600 cycles/hour |
| Mechanical endurance | 10 million cycles |
| Electrical endurance | 10 million cycles |
| Terminal type | Screw type |
| Supported cable cross-sections | Rigid: 2x (1.0 to 1.5 mm²) Flexible with ferrule: 2x (0.5 to 1.5 mm²) AWG: 2x (18 to 14) |
| Operating voltage (AC/DC) | 5 ÷ 500 V |
| Protection class | IP40 (enclosure), IP20 (terminals) |

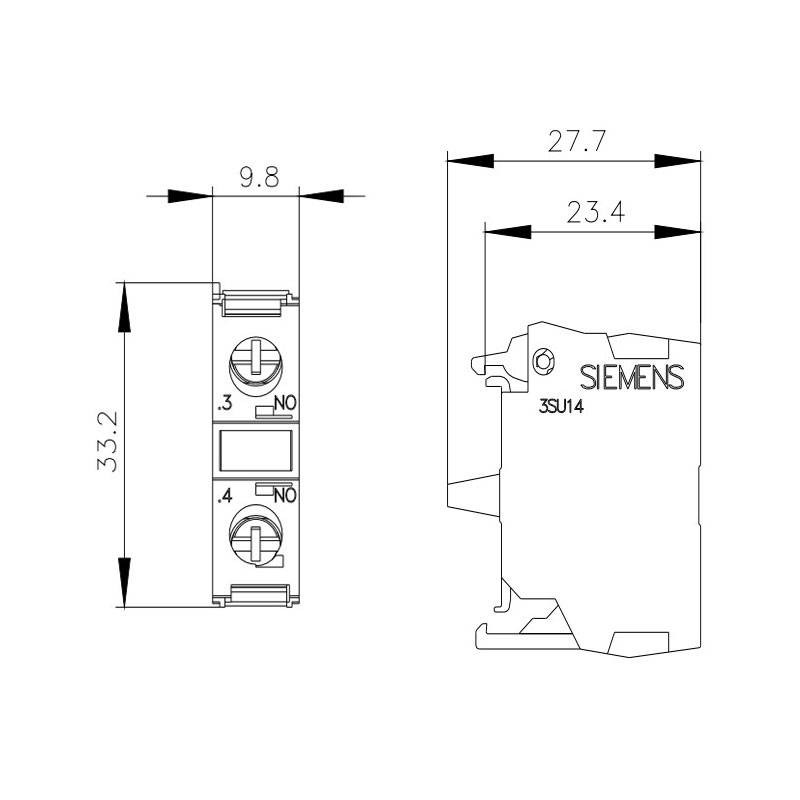

| Dimensions | 33.2 x 9.8 x 27.7 mm |
| Operating temperature range | -25 ÷ +70 °C |
| Certifications | CE, UL, CSA - RoHS |
