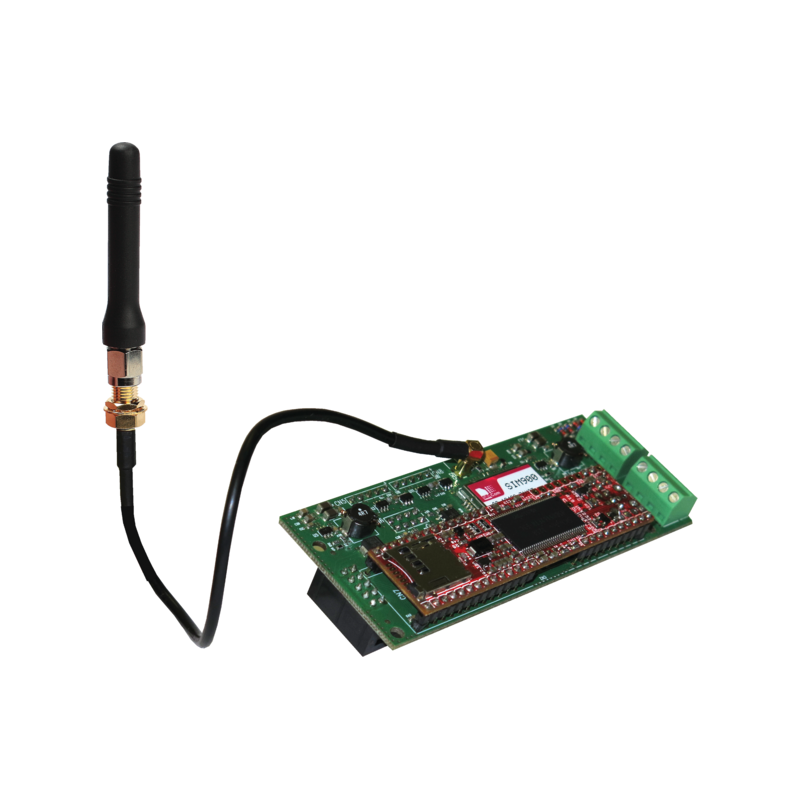

Bpt Came GPRS module for burglar alarm control panels 9-15V DC 100 mA 846NC-0270
CMC 846NC-0270
8050456066985
Bpt Came GPRS module for burglar alarm control panels: sends SMS and voice messages, enables remote control and connects the control panel to the Cloud, with the following features:
-
Power supply: 9-15V DC
-
Maximum power consumption: 100 mA
-
Maximum number of contactable numbers: 16
-
Cloud connection: Yes, via Wi-Fi dongle or LAN
-
Mounting: To be integrated into central unit
-
Dimensions: 34x81x30 mm
€310.70
Items Available: 3
GPRS Module Advanced Communication Security Systems
The Bpt Came module, represents a professional solution for remote sending and management of events generated by burglar alarm control panels. Using GPRS technology, it enables real-time communication with the user via SMS, voice messages (with optional PXV64 or PXV256 modules) and DTMF commands. It is ideal for enhancing the notification and control capabilities of modern security systems.
Multi-Channel Notifications: SMS, Voice and DTMF
The module is designed to send alarm notifications to up to 16 phone numbers, offering both text (SMS) and voice communications when connected to optional sound cards. In addition, it is possible to receive commands remotely via SMS or DTMF tones, for operations such as activating/deactivating the control panel or managing inputs/outputs.
Cloud Connection and Wi-Fi/LAN Support
One of the most innovative features of the PXGPRS01 is the support for Cloud connection, which allows the burglar alarm system to be monitored and managed remotely via web interfaces or dedicated apps. The module is equipped with a connector for Wi-Fi or LAN dongles, expanding the possibilities for connectivity and integration with other smart devices or existing networks.
Easy Installation and Maximum Compatibility
With low power consumption (max 100 mA) and 9÷15V DC power supply, the module integrates easily into new or existing installations. Its compact size makes it ideal for installations in small spaces. It complies with EN 50131-3, Grade 2, Environmental Class II, a guarantee of quality and safety in residential and professional settings.
Technical Specifications Bpt Came GPRS Module
| Parameter | Value |
|---|---|
| Power supply | 9-15 V DC |
| Maximum current consumption | 100 mA |
| Dimensions | 34 x 81 x 30 mm |
| Operating temperature range | -10/+40 degrees |
| Supported communications | SMS, DTMF tones |
| Number contactable | 16 |
| Cloud connection | Yes, via Wi-Fi dongle or LAN |
| Voice compatibility | With optional PXV64 or PXV256 modules |
| Mounting | To be integrated into central unit |
| Reference standard | EN 50131-3, Grade 2, Environmental Class II |
There are no reviews
Data sheet
- Type: Modules
