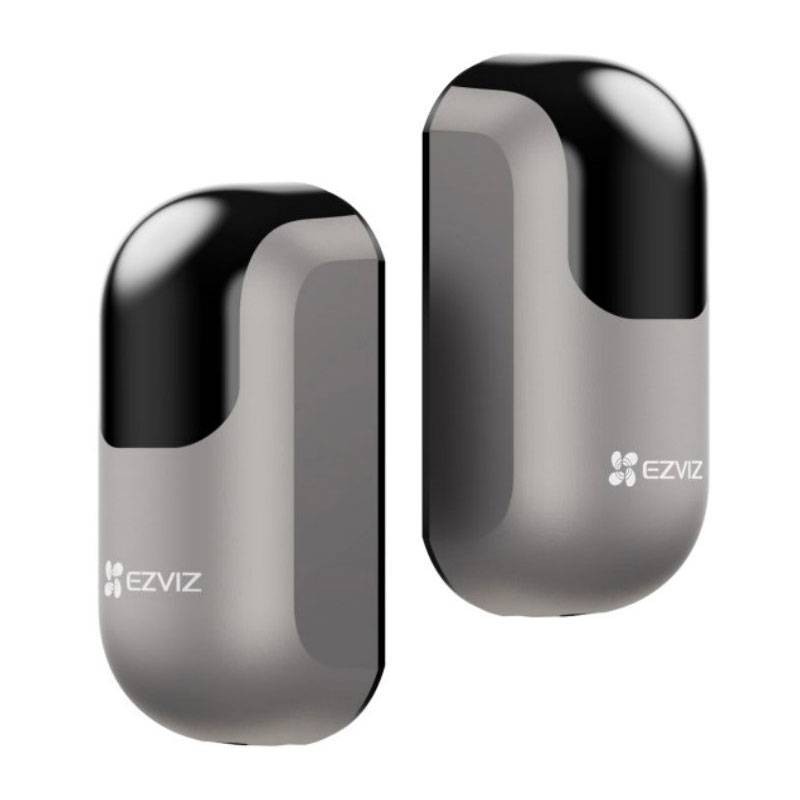

Ezviz Pair of HGD2 photocells for sliding gates series HG2

Hikvision
Hikvision
19E HGD2 6941545643229

Pair of Ezviz HGD2 photocells for sliding gates series HG2: infrared TX/RX sensors that detect obstacles up to 10 m, increasing automation safety and preventing impacts and crushing.

  • Pair TX + RX with invisible IR beam for obstacle detection

  • Compatible with Ezviz HG2 400 and HG2 600 Pro automation

  • Simple 2-wire connection, 12 V DC power supply

  • Range up to 10 meters between transmitter and receiver

  • Clean contact outputs: NC and NO for maximum system compatibility

  • IP55 protection grade: suitable for outdoor use

  • Wide operating range: -30 °C ÷ +60 °C, humidity 95% RH

Do you have questions about this product or did you not find what you were looking for? Ask us!
Ezviz Pair of HGD2 photocells for sliding gates series HG2
€36.93
€36.93

€36.93
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€36.93

Buy it within and receive it from Thursday, 19 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Ezviz HGD2 Photocells: essential safety for automatic gates

The Ezviz HGD2 photocells are a fundamental accessory in automation systems for sliding gates of the HG2 series. Their task is simple but crucial: to monitor the passage area and stop or manage the gate's movement when an obstacle is detected. This helps prevent accidents, impacts, crushing, and damage to people, vehicles, or objects, significantly improving the system's reliability, especially in domestic contexts with children, animals, or frequent traffic.

Infrared TX/RX system: fast and reliable detection

The kit consists of a transmitter (TX) and a receiver (RX) that create an invisible infrared beam. When someone or something crosses the beam, the system signals the obstacle to the automation control unit. The operating distance reaches up to 10 meters, making them suitable for standard entrances and residential openings, but also for many applications in condominium or light commercial settings.

2-wire installation and clean contacts: simple integration

The HGD2 photocells require a 2-wire connection and operate at 12 V DC, with a total consumption of 0.8 W (TX+RX). The clean contact outputs (both NC normally closed and NO normally open) facilitate integration with the automation, allowing the choice of the most suitable connection logic for the control panel or system configuration.

Durable for outdoor use: IP55 and wide temperature range

Designed for outdoor operation, the HGD2 offers IP55 protection against dust and water jets, making them suitable for installations on pillars, fences, and exposed areas. They operate in a wide temperature range (-30 °C ÷ +60 °C) and with humidity up to 95% RH (without condensation), ensuring continuity even in challenging weather conditions.

General Data
Sensor Type Infrared photocells
Compatibility HG2 series automation (e.g., HG2 400, HG2 600 Pro)
Installation 2-wire connection
Distance / Range Up to 10 m between TX and RX
Electrical Characteristics
Power Supply 12 V DC
Maximum Consumption 0.8 W (TX + RX)
Outputs 1 clean contact NC + 1 clean contact NO
Protection and Environment
Protection Grade IP55
Operating Temperature -30 °C ÷ +60 °C
Humidity ≤ 95% RH (without condensation)
Dimensions

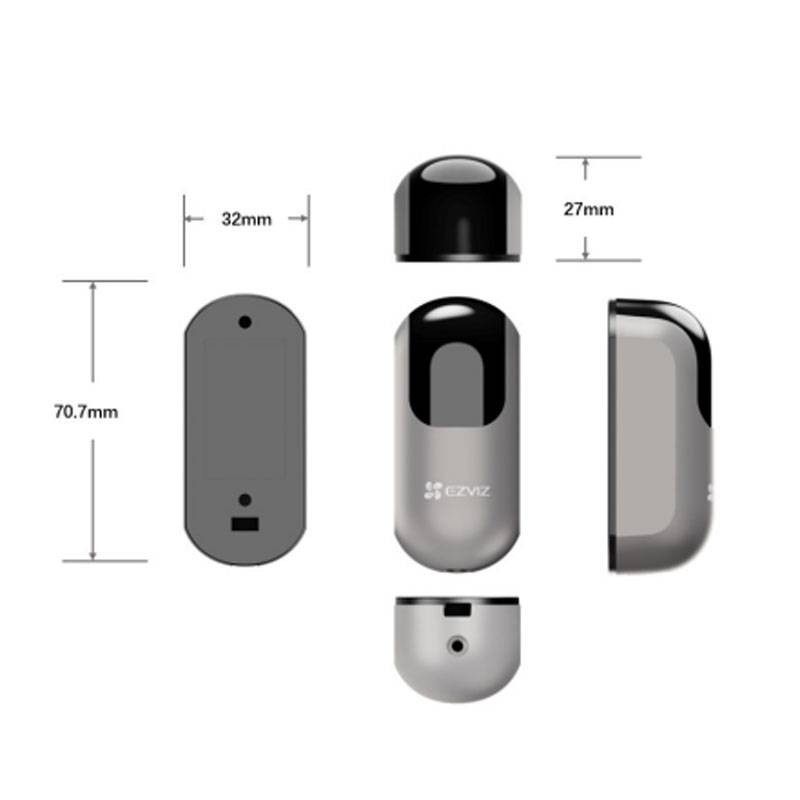

Dimensions (without packaging) 70.7 × 32 × 27 mm
Package Contents
Components 1 Transmitter (TX) + 1 Receiver (RX)


Package contents and compact dimensions: The package includes 1 TX and 1 RX, ready to be installed. The compact dimensions (70.7 × 32 × 27 mm) help maintain a discreet aesthetic result, without excessive clutter at the entrance.
