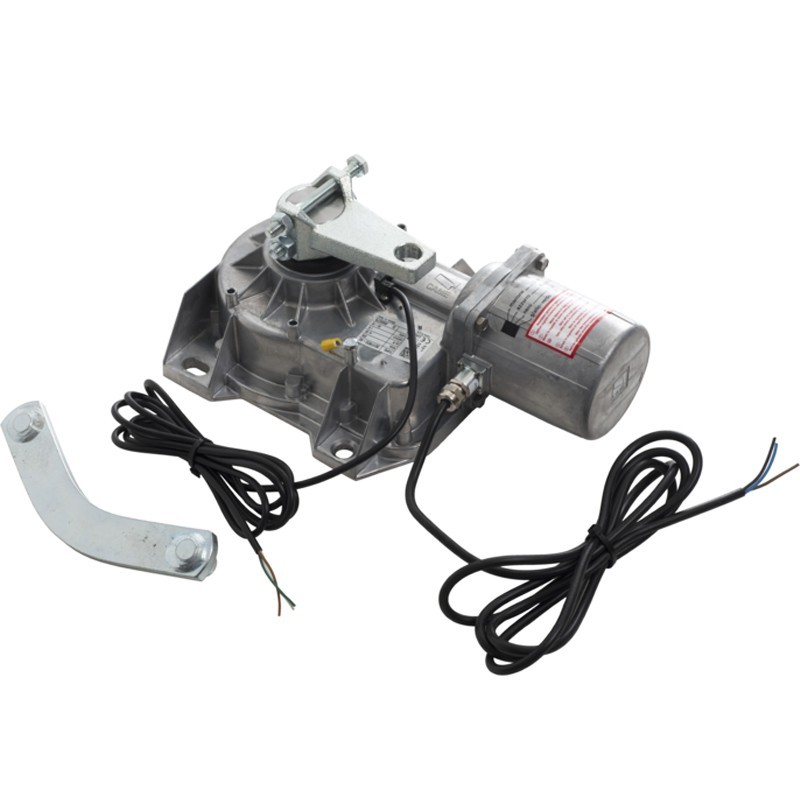

Came underground motor swing 230V up to 3.5mt for door 001FROG-A
Came underground swing motor 230V up to 3.5 metres per leaf, The invisible solution for gate automation.
Came underground motor swing 230V up to 3.5mt for door 001FROG-A
Tax included
FROG represents the most advanced synthesis of Came's design philosophy and research applied to swing gates. Extremely resistant and "practically invisible", Frog keeps the aesthetics of the entrance unaltered and adapts perfectly to any type of gate, even those for collective use.
The new foundation box
Cataphoresis is a painting treatment able to confer a high resistance to corrosion. It is characterised by the uniform deposition of a black acrylic resin and ensures high protection against chemical agents for a long time.
Frog EN TESTED
Frog's 24V and 230V technology provides maximum control over the movement of the window. In fact, the FROG-A24 and FROG-AE models have been tested, together with the ZL19N, ZL170N and ZM3E control panels, for compliance with the EN12445 and EN 12453 standards.
Absolute watertightness
The high quality standard of FROG and the IP67 degree of protection against external agents make it resistant to all weather conditions.
The sooner the better
The installation of FROG is simple and the predisposition of the foundation box allows to automate the window even in different times.
Easy and patented release
In the event of a black-out, FROG unlocks immediately. Available in three different versions for every specific requirement, from the practical lever to the customised key.
Features:
- The invisible solution for gate automation.
- High degree of protection from atmospheric agents (IP67).
- Automatic re-engagement of the system after manual release of the gate.
- Possibility of opening up to 180° (with the FL-180 accessory).
- FROG-AE and FROG-A24E with encoder technology, tested according to the parameters dictated by the regulations in force.
- In the 24 V DC versions, emergency operation is possible in the event of a blackout.
- Special foundation box in steel with anti-corrosion treatment.
- Adjustable integrated door stops.
- Ready for CAME KEY accessory and for connection to the cloud via CAME Connect (excluding ZA3P - ZL170N - ZL19N - ZLJ14)
- Power supply 230 50/60 Hz
- Degree of protection IP67
- Absorption 1,9 A
- Power 400W
- Intermittence work 30%
- Adjustable torque 320 Nm
- Motor thermal protection 150 Degrees
- Manoeuvre time (AP 90°) 18s
- Operating temperature -20 °C min +55 °C max
Operating limits
- Leaf width 2 metres Leaf weight 800Kg
- Leaf width 2,5 metres Leaf weight 600Kg
- Sash width 3.5 metres Sash weight 400Kg
Data sheet
- Type:
- Engines Gates
- Model:
- Swing gate
