Came Mechanical Unlocking with Customized Key EURO-DIN 801XA-0030
CMC 801XA-0030
8050456089960

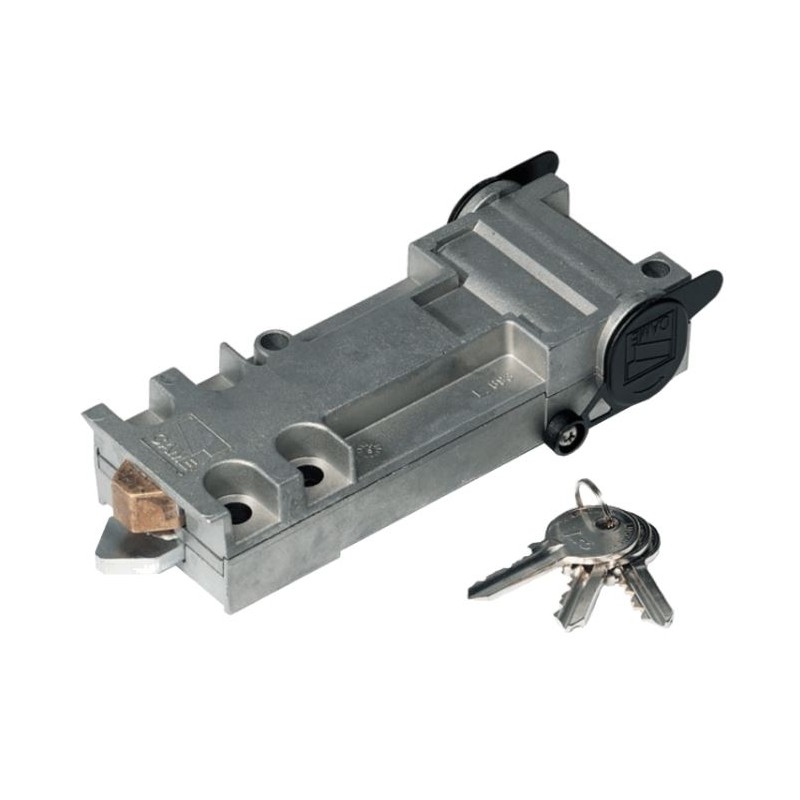

Came mechanical release with customized EURO-DIN key. Anti-blocking lock system, complete with screws and washers for mounting on motorized sashes, with the following features:
-
EURO-DIN type cylinder with anti-blocking system.
-
Complete with key, M8x30 screw and 8.4x13 knurled washer
-
Direct installation on bracket welded to the gate leaf
-
Recommended for Came automatic gates
€73.56
Items Available: 26
: 19
Frequently bought together
Came mechanical release device with custom key
The Came mechanical unlocking device, allows the gearmotor to be manually disengaged in case of emergency, blackout or maintenance, thanks to a customized key and a EURO-DIN cylinder with anti-lock system, designed to ensure maximum security.
Complete system for sash installation
Kit includes everything needed for installation:
- Unlocking mechanism with lock
- Came custom key
- M8x30 cylinder head screw
- Knurled washer 8.4x13
The system is to be fixed on the bracket welded to the sash, ensuring a solid and durable connection.
Easy to use in any situation
To perform unlocking, simply remove the lock guard, insert the custom key and turn it according to the indication. Once unlocked, you can push or pull the sash manually. To re-lock, simply reset the lock position and remove the key.
Simple and periodic maintenance
It is recommended to disconnect the line voltage before performing any unlocking or maintenance operation. To keep the device efficient over time, it is important to clean and lubricate the mechanism parts every 6 months.
Technical Specifications Came Mechanical Unlocking Device
Technical Data
| Feature | Value |
|---|---|
| Cylinder | EURO-DIN with anti-lock system |
| Key | Customized Came |
| Compatibility | Came motorized gates and doors |
| Installation | On bracket welded to the door leaf |
| Maintenance | Every 6 months, with cleaning and lubrication |
| Field of use | Residential and commercial environments |
Components Included
| Component | Description |
|---|---|
| Release mechanism | Included |
| Key | 1 Came custom key |
| Knurled washer | 8.4x13 mm |
| Screw | M8x30 cylindrical head |
Prix et rapidité top je recommande sans hésitez merci
Piece d’origine conforme à l’emploi demandé.
Perfetta la consegna ed il servizio arrivato subito
Ok
Materiale solido
Ben fatto
Lo consiglio
qualità e standard come si aspetterei di Came - tutto buonissimo.
Data sheet
- Type: Gate motors
- Model: Unlock
