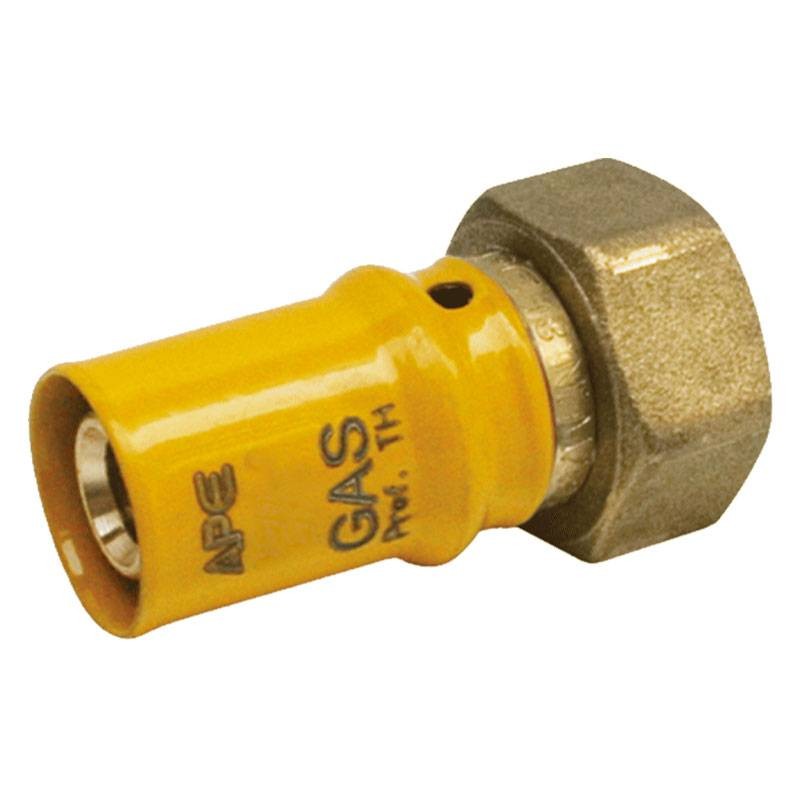

Ape gas swivel fitting F 1 inch x 26 mm 3AP6850126
55X 3AP6850126
8033708142613
Fitting with swivel for Ape gas with the following features:
- Connection: Female
- Fittings: 1 inch
- Diameter: 26 mm
- Material: Brass

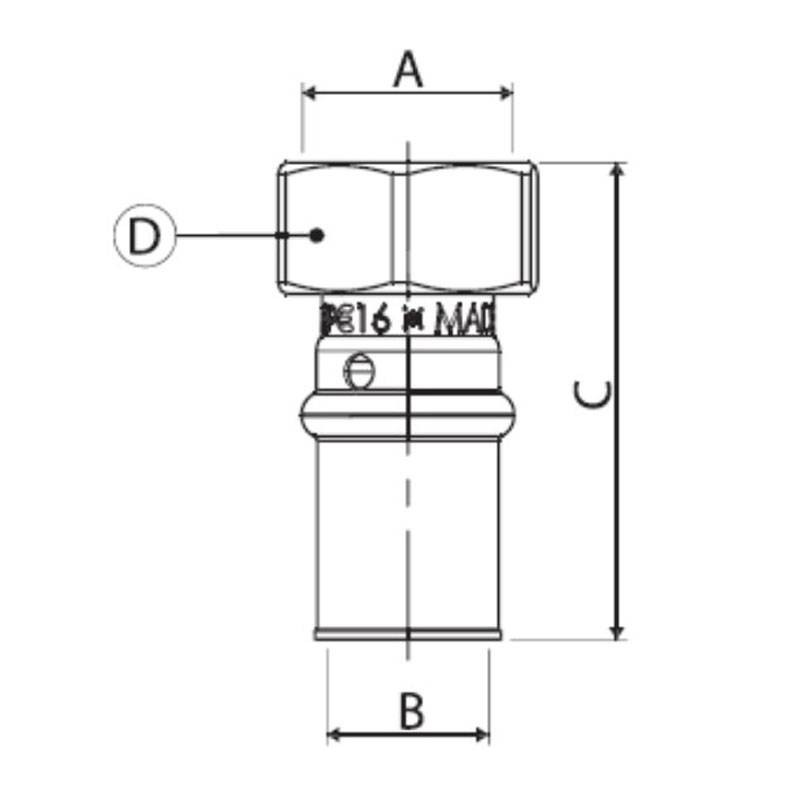

- Dimensioni:1"x26x54,7xCAP37 (A-B-C-D)
Scope of application:Gas adduction systems for domestic use. Application fluid: Natural gas and LPG.
€7.41
Items Available: 20
: 9
Press fitting with swivel for multilayer pipe. Items are equipped with double o-ring seal, plus PE ring to eliminate any stray currents. The fittings are used in gas adduction systems.
Features:
- Field of application: Gas adduction systems for domestic use
- Application fluid: Natural gas and LPG
- Temperature range: -20/+70 degrees
- Working pressure: MOP 5
- Pipe type: Multilayer PE-Xb/AL/PE-Xb
There are no reviews
Data sheet
- Diameter: 26mm
- Type: Fittings
- Connection: F
- Connections: 1 inch
- Material: Brass
