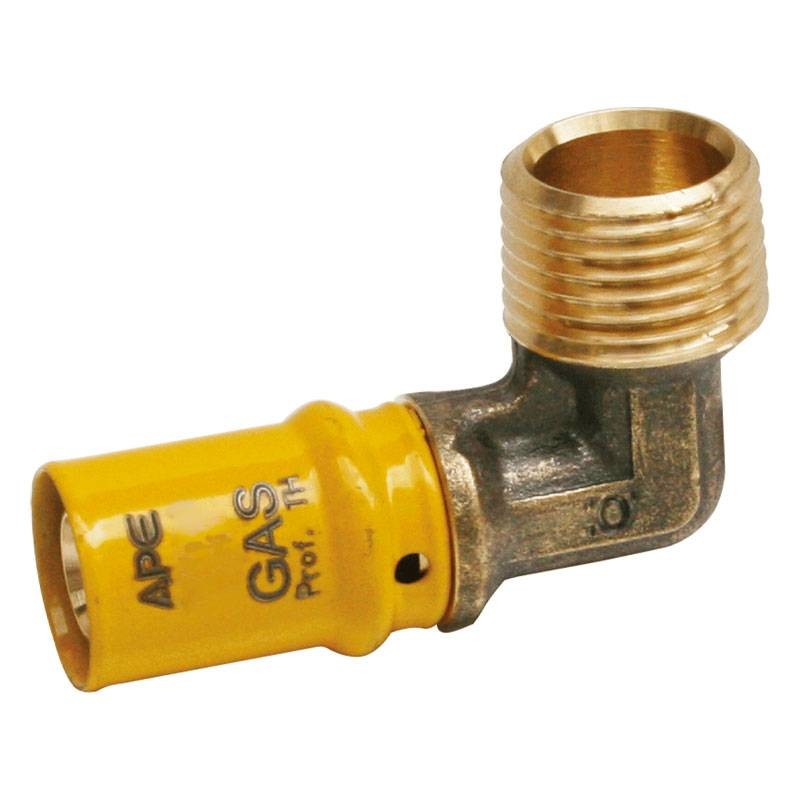

Ape gas elbow fitting M 1 inch x 32 mm brass 3AP6530132
55X 3AP6530132
8033708118410
Ape gas elbow fitting with the following features:
- Connection: Male
- Fittings: 1 inch
- Diameter: 32 mm
- Material: Brass

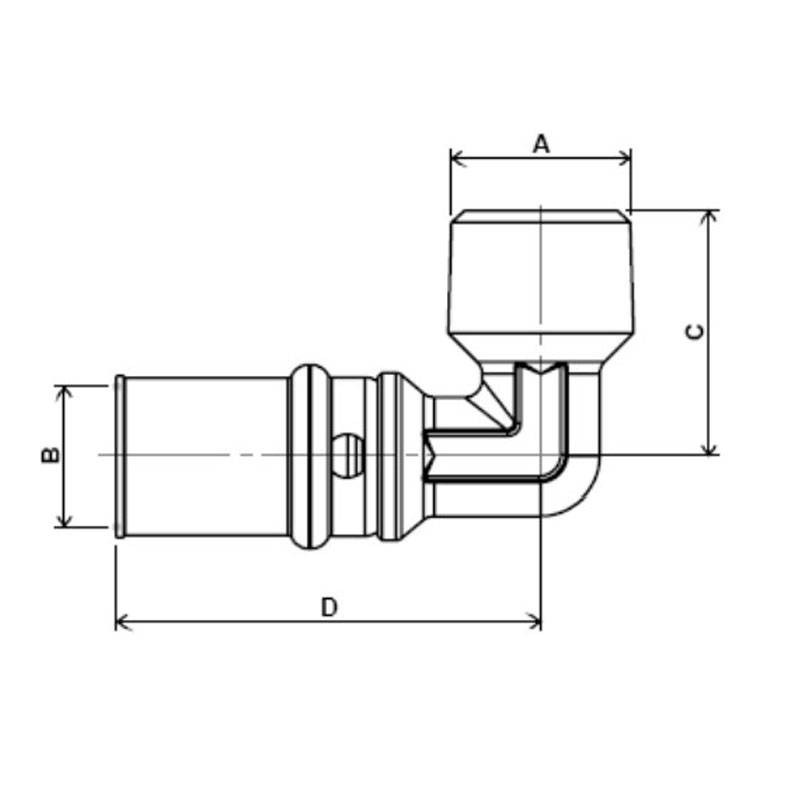

- Dimensioni:1"x32x40,5x56,3 (A-B-C-D)
Application area: Gas adduction systems for domestic use. Application fluid: Natural gas and LPG.
€9.66
Items Available: 10
: 3
Elbow press fitting for multilayer pipe. Items are equipped with double o-ring seal, plus PE ring to eliminate any stray currents. The fittings are used in gas adduction systems.
Features:
- Field of application: Gas adduction systems for domestic use
- Application fluid: Natural gas and LPG
- Temperature range: -20/+70 degrees
- Operating pressure: MOP 5
- Pipe type: Multilayer PE-Xb/AL/PE-Xb
There are no reviews
Data sheet
- Diameter: 32mm
- Type: Fittings
- Connection: M
- Model: Elbow
- Connections: 1 inch
- Material: Brass
