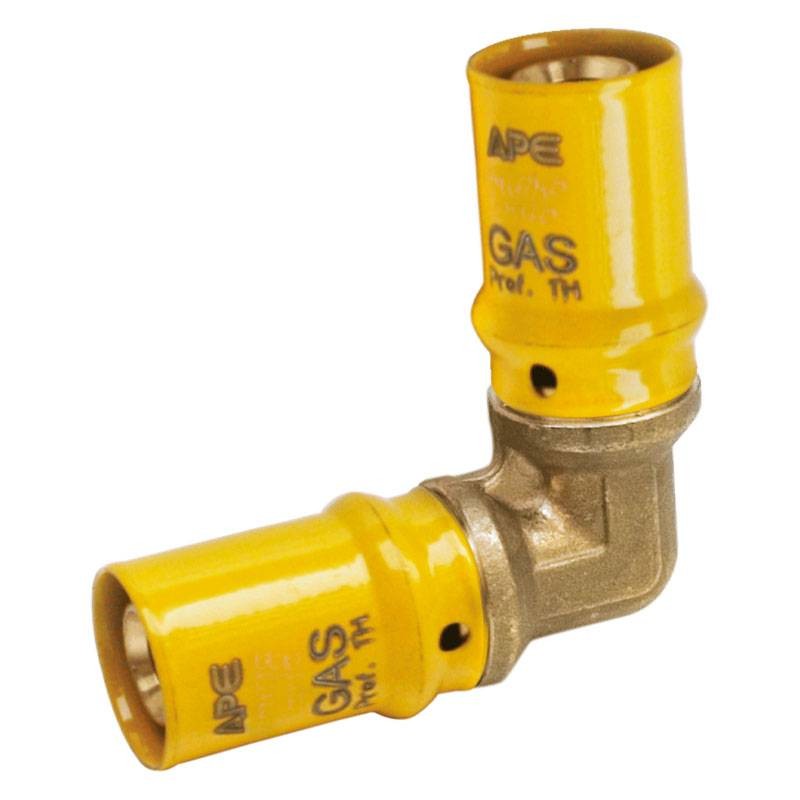

Ape gas elbow fitting 20x20 mm brass 3AP6510020
55X 3AP6510020
8033708106790
90-degree elbow fitting for Ape gas with the following characteristics:
- Diameter: 20x20 mm
- Material:Brass

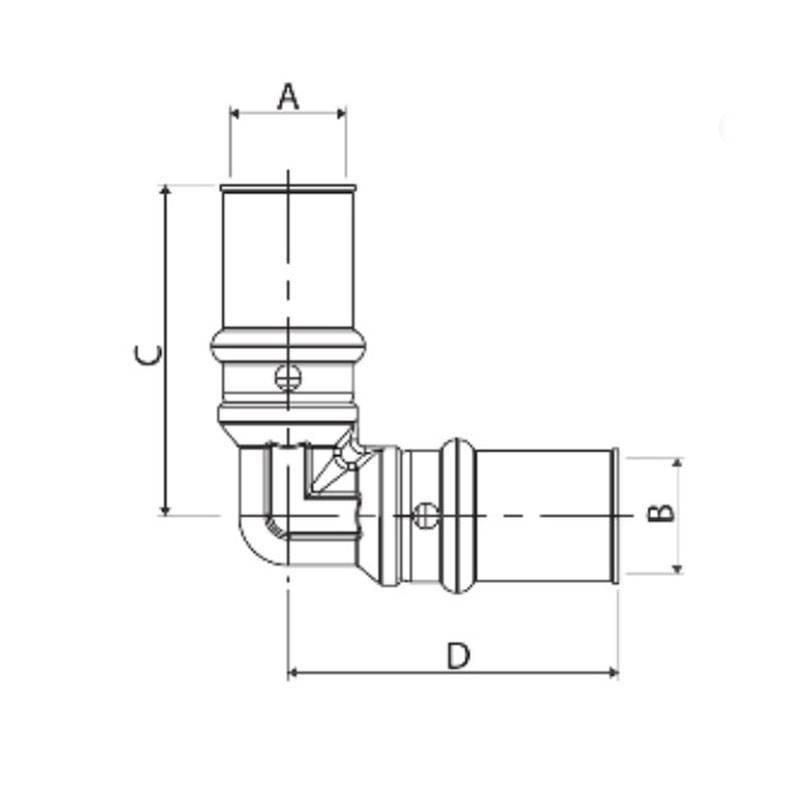

- Dimensioni: 20x20x49,5x49,5 (A-B-C-D)
Application area: Gas adduction systems for domestic use. Application fluid: Methane and LPG.
€4.27
Items Available: 87
: 52
90-degree elbow press fitting for multilayer pipe. Items are equipped with double o-ring seal, plus PE ring to eliminate any stray currents. The fittings are used in gas adduction systems.
Features:
- Field of application: Gas adduction systems for domestic use
- Application fluid: Natural gas and LPG
- Temperature range: -20/+70 degrees
- Working pressure: MOP 5
- Pipe type: Multilayer PE-Xb/AL/PE-Xb
There are no reviews
Data sheet
- Diameter: 20mm
- Type: Fittings
- Model: 90 Degrees
- Material: Brass
Elbow
