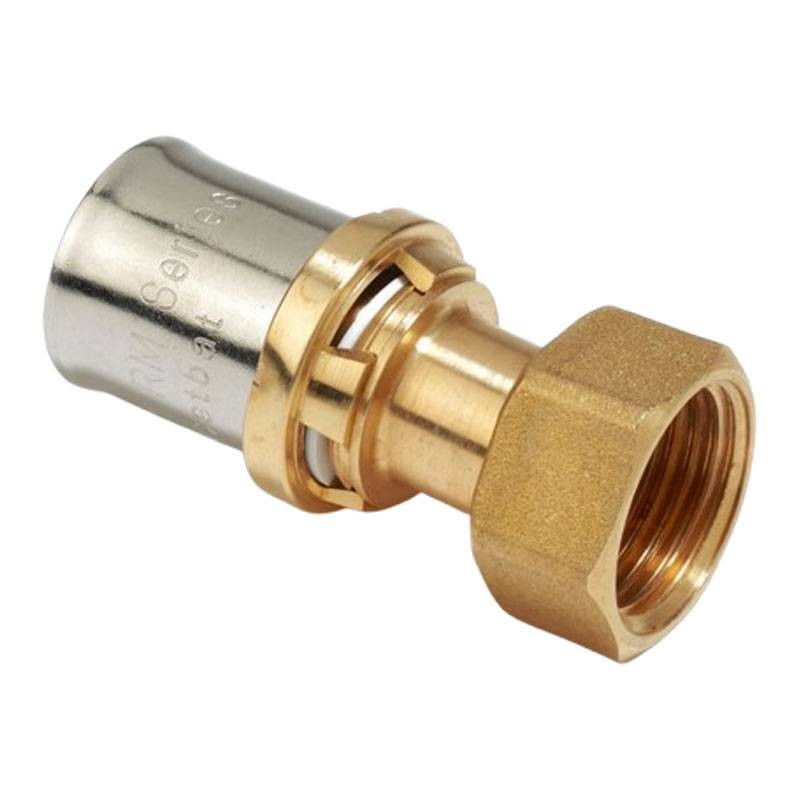

Giacomini straight press fitting 3/4 26x3 mm brass RM179Y069
GIM RM179Y069
8009902264635
Giacomini straight fitting, ideal for plumbing systems with plastic or multilayer pipes. Multi-pin press fit, provides secure seal up to 10 bar, with the following features:
-
Size: 3/4 inch x 26x3 mm
-
System: Multi-pinza press fit
-
Material: Brass, strong and durable
-
Compatible: Plastic or multilayer pipes
-
Maximum pressure: 10 bar
€4.54
Items Available: 248
: 1
Giacomini straight fitting for press-fit plumbing systems
The Giacomini straight fitting is ideal for distribution and branching of hydraulic lines in civil and professional installations. For plastic or multilayer pipes.
Universal multi-press system
The fitting has multi-clamp press connections, compatible with the main jaws on the market (TH, U, H, B, RFz), making installation fast and safe. The multi-lever system ensures a reliable seal and stable connection under all conditions.
Maximum sealing with double O-ring
The double black O-ring integrated in each connection complies with EN 681-1, ensuring a perfect seal even under thermal stress and varying pressures. A solution designed for plumbing, heating and cold and hot water distribution systems.
Rugged brass construction
Made of high-strength brass, the fitting ensures durability, corrosion resistance and high reliability over time. Compact design makes it ideal for installations in small spaces or in close proximity to other system components.
Technical Specifications Giacomini straight fitting
Technical Data
| Feature | Value |
|---|---|

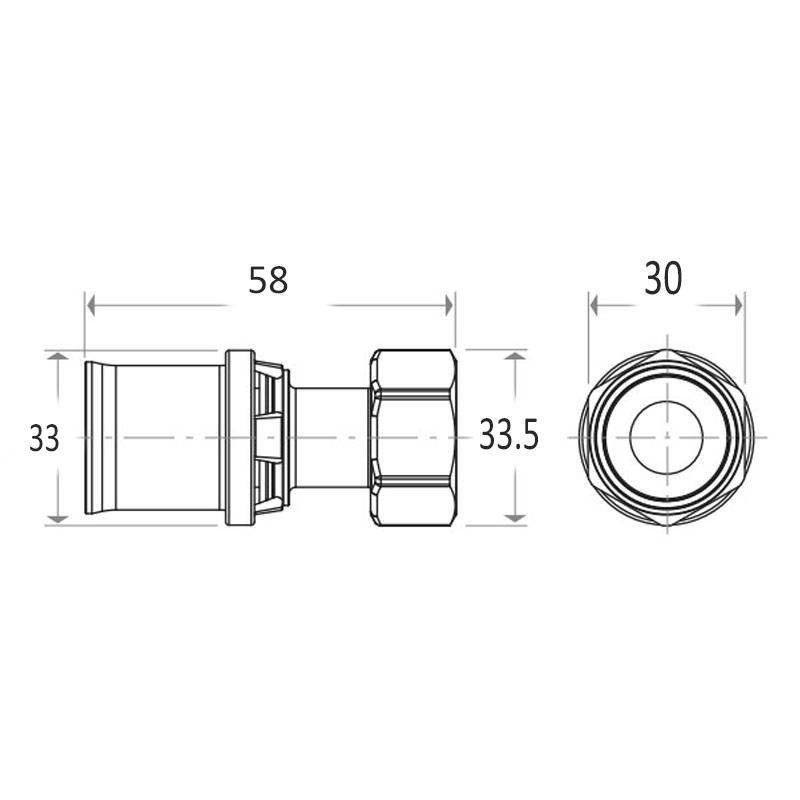

| Dimensions | 3/4 inch 26x3 mm |
| Material | Brass |
| Pipe compatibility | Plastic and multilayer |
| Sealing | Double black O-ring in accordance with EN 681-1 |
| Temperature range | 5 ÷ 110 °C |
| Maximum operating pressure | 10 bar |
Applications
| Fields of use | Description |
|---|---|
| Main uses | Civil and residential plumbing systems |
There are no reviews
Data sheet
- Type: Water Press Fittings
- Model: Straight
- Connections: 3/4 inches
