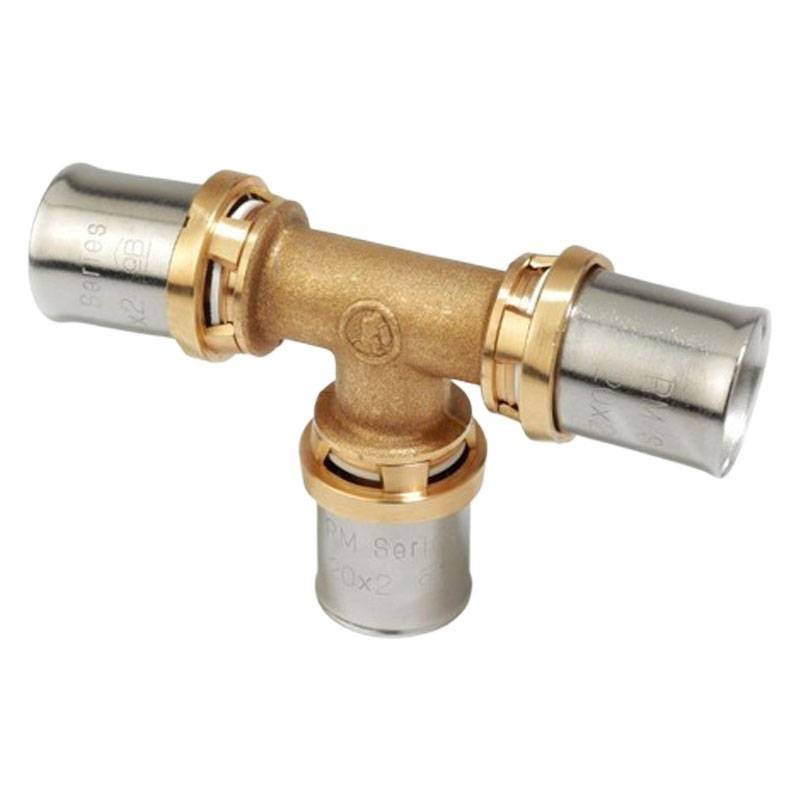

Giacomini press-fit 32x16x32 brass T-Fitting RM151Y090
GIM RM151Y090
8009902273132
Giacomini T-Fitting, ideal for plumbing systems with plastic or multilayer pipes. Multi-pin press fit, provides secure seal up to 10 bar, with the following features:
-

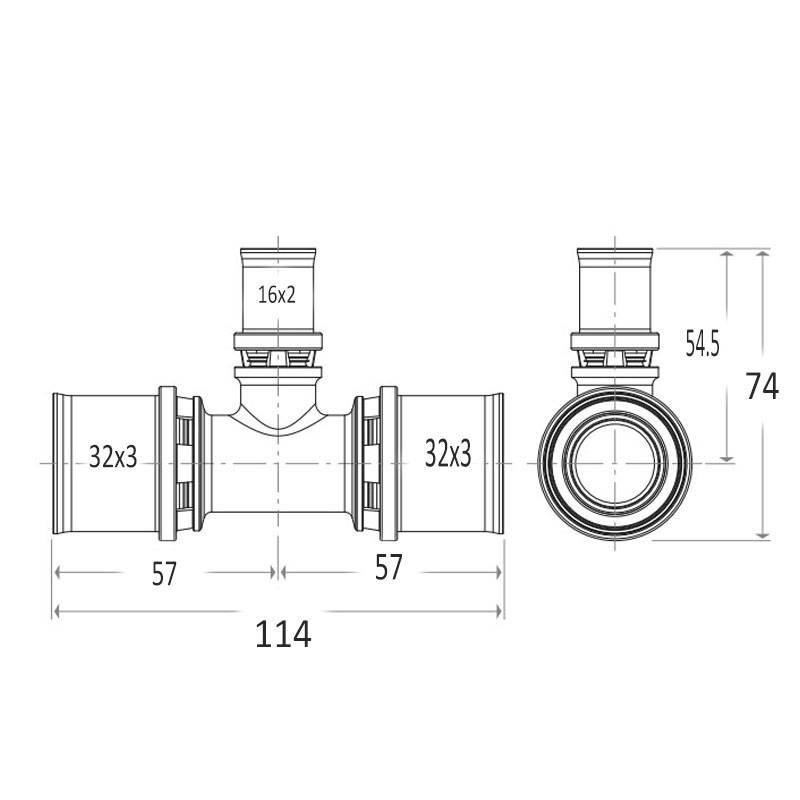

Dimensions: (32x3) x (16x2) x (32x3)mm
-
System: Multi-lever press fit
-
Material: Brass, strong and durable
-
Compatible: Plastic or multilayer pipes
-
Maximum pressure: 10 bar
€10.25
Items Available: 40
: 10
Giacomini T-fitting for press-fit plumbing systems
The Giacomini T-fitting is ideal for distributing and branching hydraulic lines in civil and professional installations. With 32-mm and 16-mm connections, it allows a uniform tee configuration for plastic or multilayer piping.
Universal multi-pin press system
The fitting features multi-clamp press connections, compatible with the main commercially available jaws (TH, U, H, B, RFz), making installation fast and safe. The multi-lever system ensures a reliable seal and stable connection under all conditions.
Maximum sealing with double O-ring
The double black O-ring integrated in each connection complies with EN 681-1, ensuring a perfect seal even under thermal stress and varying pressures. A solution designed for plumbing, heating and cold and hot water distribution systems.
Rugged brass construction
Made of high-strength brass, the fitting ensures durability, corrosion resistance and high reliability over time. Compact design makes it ideal for installations in small spaces or in close proximity to other system components.
Technical Specifications Giacomini T-fitting
Technical Data
| Feature | Value |
|---|---|
| Dimensions | (32x3) x (16x2) x (32x3) mm |
| Material | Brass |
| Pipe compatibility | Plastic and multilayer |
| Sealing | Double black O-ring in accordance with EN 681-1 |
| Temperature range | 5 ÷ 110 °C |
| Maximum operating pressure | 10 bar |
Applications
| Fields of use | Description |
|---|---|
| Main uses | Civil and residential plumbing systems |
There are no reviews
Data sheet
- Type: Water Press Fittings
- Model: T-Fittings
