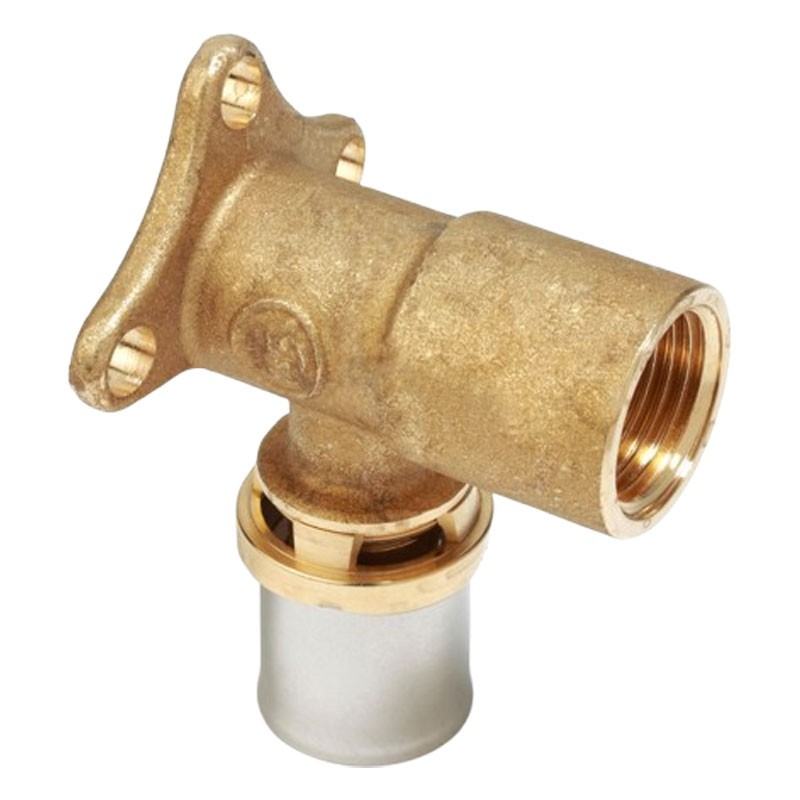

Giacomini threaded elbow fitting F 1/2 20x2 mm brass RM139Y037
GIM RM139Y037
8009902259846
Giacomini elbow fitting with press bracket, multi-pin press fitting with female thread. Made of brass with bracket for wall installation. For plastic or multilayer pipes, with the following features:
-
Connections: Female 1/2 inch 20x2 mm
-
System: Press-fit multi-clamp
-
Material: Brass, strong and durable
-
Compatible: Plastic or multilayer pipes
-
Maximum pressure: 10 bar
€3.84
Items Available: 1040
: 19
Giacomini female elbow fitting with bracket for plumbing installations
Reliable solution for wall installations
Designed to provide a safe and durable connection in plumbing installations. Equipped with 1/2 female thread and 20x2 mm press connection, it is ideal for residential and civil applications on plastic or multilayer piping. The integrated bracket allows for stable and neat wall mounting.
Multi-pin press system
The fitting has a multi-grip system, compatible with the main jaws on the market, simplifying installation operations. The press-fit system ensures a perfect and durable seal, minimizing the risk of leakage.
Maximum sealing with double O-rings
The presence of two black sealing O-rings, made of EN 681-1-compliant material, ensures perfect adherence even under varying pressure and temperature conditions. A solution designed for hot and cold water distribution, sanitary and heating systems.
Durable materials for long life
Made of high-quality brass, the fitting offers high mechanical and chemical resistance, ensuring a long service life even in environments with demanding operating conditions. The 90° curved design makes it ideal for connecting pipes in tight spaces or near walls.
Technical Characteristics Giacomini Fitting with Press Bracket
| Feature | Value |
|---|---|
| Type | Female threaded elbow fitting with bracket |
| Dimensions | 1/2 inch F x 20 x 2 mm |
| Material | Brass |
| System | Multi-grip press |
| Fixing | Bracket for wall installation |
| Pipe compatibility | Plastic and multilayer |
| Sealing | Double black O-ring in accordance with EN 681-1 |
| Temperature range | 5 ÷ 110 °C |
| Max operating pressure | 10 bar |
| Applications | Civil and residential plumbing systems |
There are no reviews
Data sheet
- Type: Water Press Fittings
- Connection: F
- Model: 90 Degrees
- Connections: 1/2 inches
Elbow
Threaded
