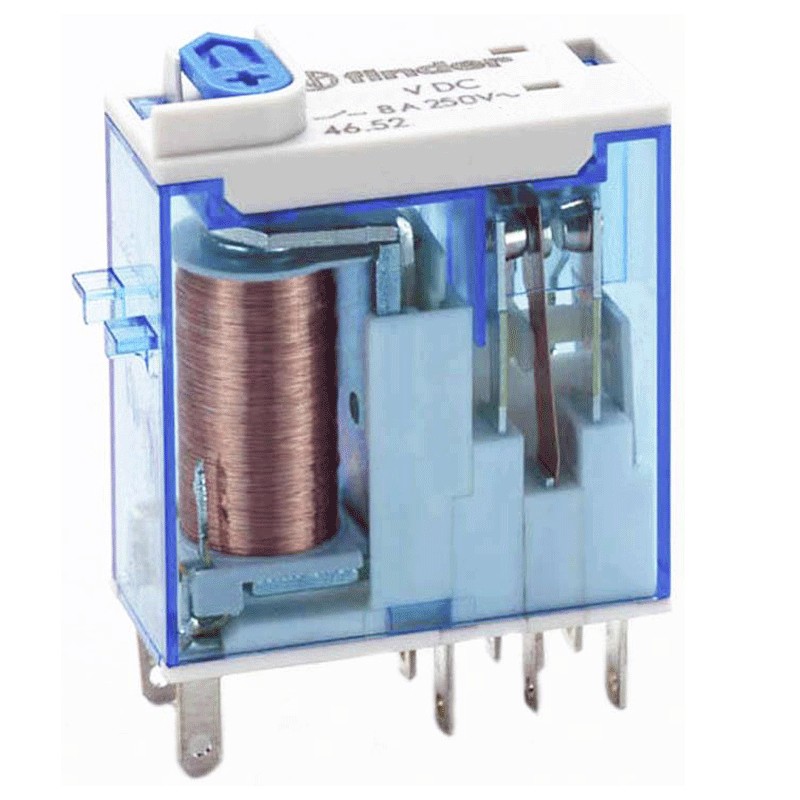

Finder industrial mini relay coil 12V DC 8A 465290120040


FIN 465290120040 8012823303451

Finder Industrial Mini Relay Type 46.52, with the following features:

  • Supply voltage (50/60 Hz) AC/DC 12V
  • Nominal voltage Max switching voltage AC 250/400V
  • Rated/Max instantaneous current 8/15A
  • Nominal load in AC1 VA 2000
  • Nominal load in AC15 VA 350
  • Single-phase motor capacity (230 V AC) kW 0.37
  • Mounting on 97 series sockets or direct connection via Faston
  • Contact configuration: 2 exchanges 8A
  • Plug-in/solder terminals

Compatible socket series 97 (9701SPA, 9702SPA).

Request info about this product

Finder industrial mini relay coil 12V DC 8A 465290120040

€7.46
€7.46

Finder industrial mini relay coil 12V DC 8A 465290120040

€7.46
Tax included
klarna Pay in installments with Klarna
qty

Finder industrial mini relay coil 12V DC 8A 465290120040

€7.46

Buy it within and receive it from Thursday, 18 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Finder Series
  • Breaking capacity in DC1 30/110/220 V: 6/0.5/0.15A
  • Minimum switching load mW (V/mA) 300 (5/5)
  • Standard contact material AgNi
  • Rated power AC/DC VA (50 Hz) VA/W: 1.2/0.5
  • Operating range :AC(0.8...1.1)UN - DC (0.73...1.1)UN
  • Holding voltage AC/DC 0.8 UN / 0.4 UN
  • Release voltage AC/DC 0.2 UN / 0.1 UN
  • Mechanical endurance AC/DC cycles 10 - 10
  • Electrical endurance at rated load AC1 cycles 100 - 10
  • Trip time: on/off ms 10/3
  • Insulation between coil and contacts (1.2/50 μs) kV 6 (8 mm)
  • Dielectric strength between open contacts 1000V AC
  • Ambient temperature °C -40...+70
  • Protection category RT II


Advantages:

  • AC or DC coil
  • Available with: lockable test button, mechanical indicator and LEDs
  • 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
  • Cadmium-free contacts
  • Sockets Series 97 for PCB, solder or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals
  • Series 99 EMC Protection and Signaling Modules and Type 86.30 Timing Modules
  • Adapters for alternative mounting available
  • European Patent

Data sheet

Type:
Industrial relays
Installation:
On sockets
Plug-in
