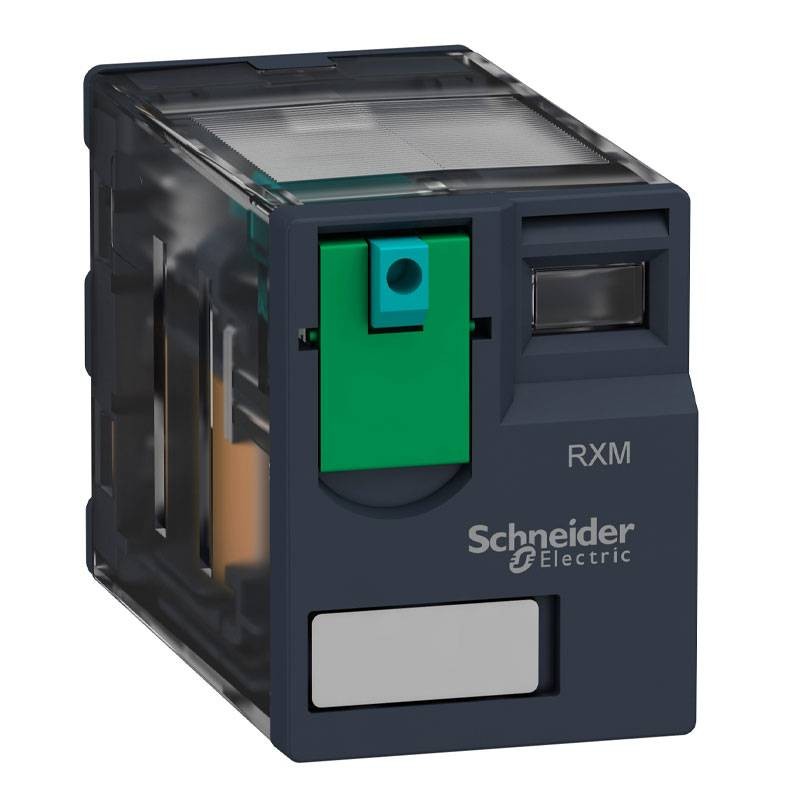

Schneider miniature relay RXM 6A 24V DC 4 contacts RXM4AB1BD
SNR RXM4AB1BD
3389119403719
Schneider RXM miniature relay without LED with the following characteristics:
- Contact composition and type: 4 OC
- Rated current: 6A
- Voltage: 24 V DC
- Degree of protection: IP40
€6.84
Items Available: 4
: 2
Schneider's RXM plug-in miniature relay features a coil control voltage of 24 V DC and 4PDT (quadruple pole, double contact) switching contacts rated at 6 A. It has a mechanical indicator and a lockable test button.
This relay, helps to reduce the size of cabinets and at the same time increase reliability for industrial machinery, packaging, textile industry, HVAC, automation control panels, low/medium voltage distribution boards, motor controls, PLC interfaces, power supplies, building or medical equipment, lighting controls.
Offers a wide selection of contacts for high current rating use in a compact design. It also offers a lockable single-pass test button and a mechanical indicator for contact status.
Advantages:
- Helps reduce the size of cabinets while increasing machine reliability: can be installed anywhere
- Provides an economical solution for implementing many switching functions with many contacts
- Its flexible design saves space
- Easy installation and removal of the relay from the base
- Up to 65% faster due to the time-saving bus jumper
Features:
- Status LED: Without
- Control type: Lockable test button
- Utilization coefficient: 20%
- Rated impulse withstand voltage: 2.5 kV for 1.2/50 µs
- Mechanical endurance: 10000000 cycles
- Operating time: 20 milliseconds
- Release time: 20 milliseconds
- Average coil resistance: 650 Ohm at 20 °C +/- 10 %
- Height: 79 mm
- Depth: 78.45 mm
- Storage temperature: -40/+85 degrees
- Ambient operating temperature: -40/+55 degrees
- Pollution degree: 2
There are no reviews
Data sheet
- Type: Industrial relays
- Voltage: 24V
- Degree of protection: IP40
- Amps: 6A
