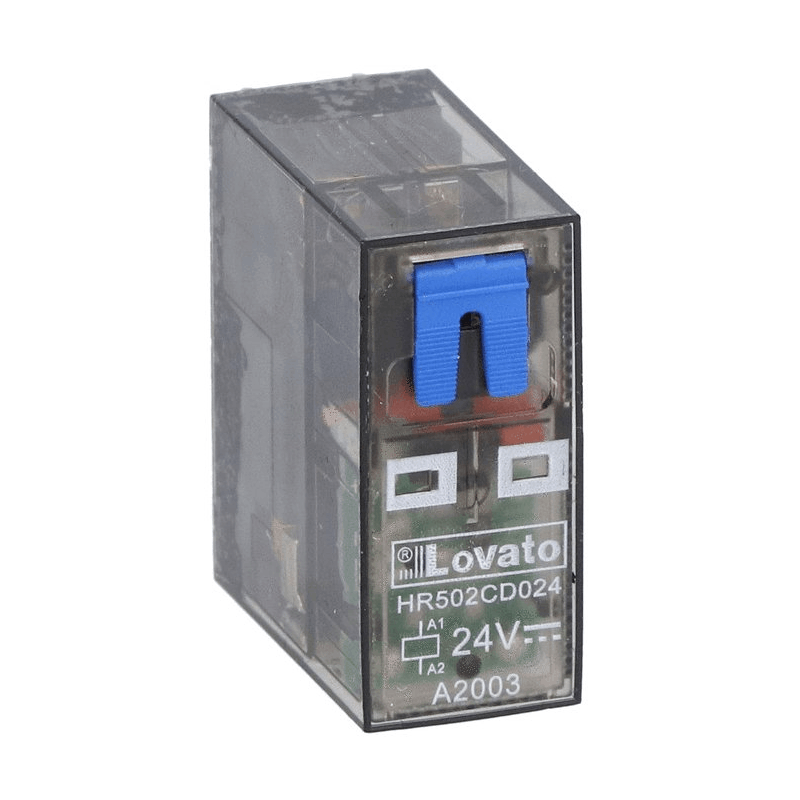

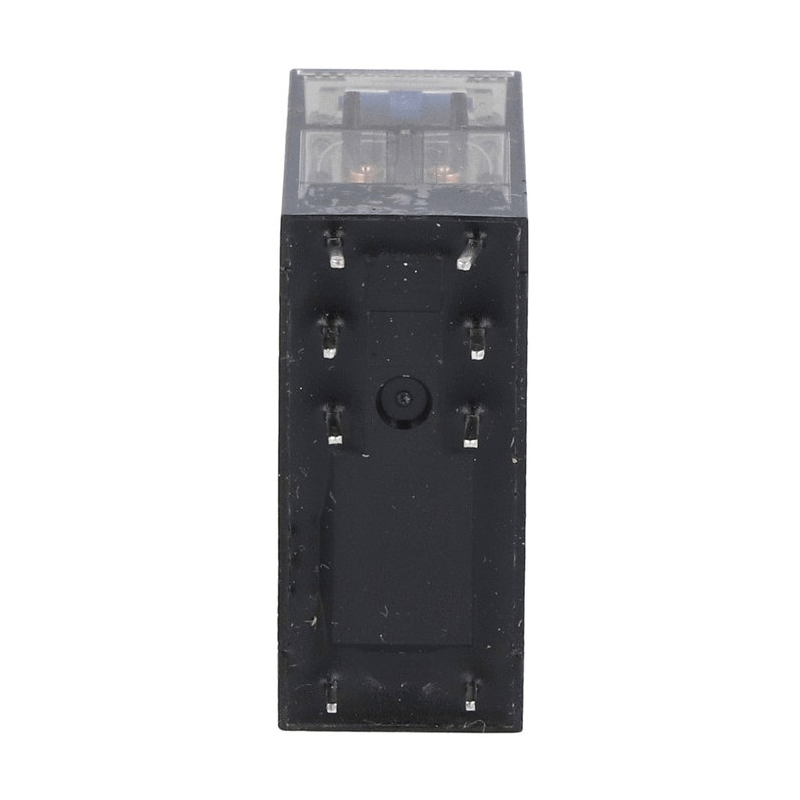

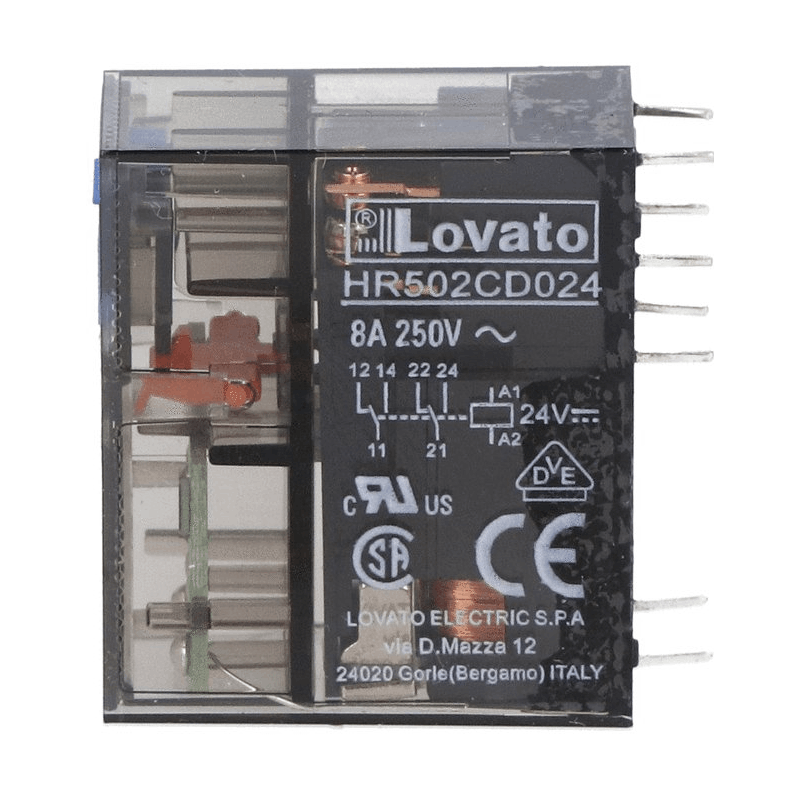

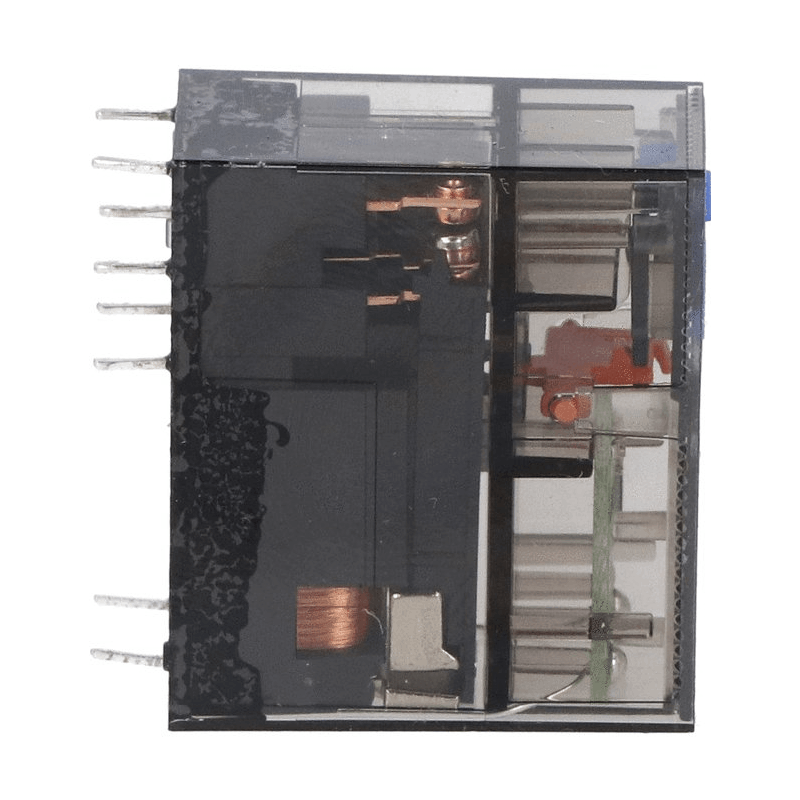

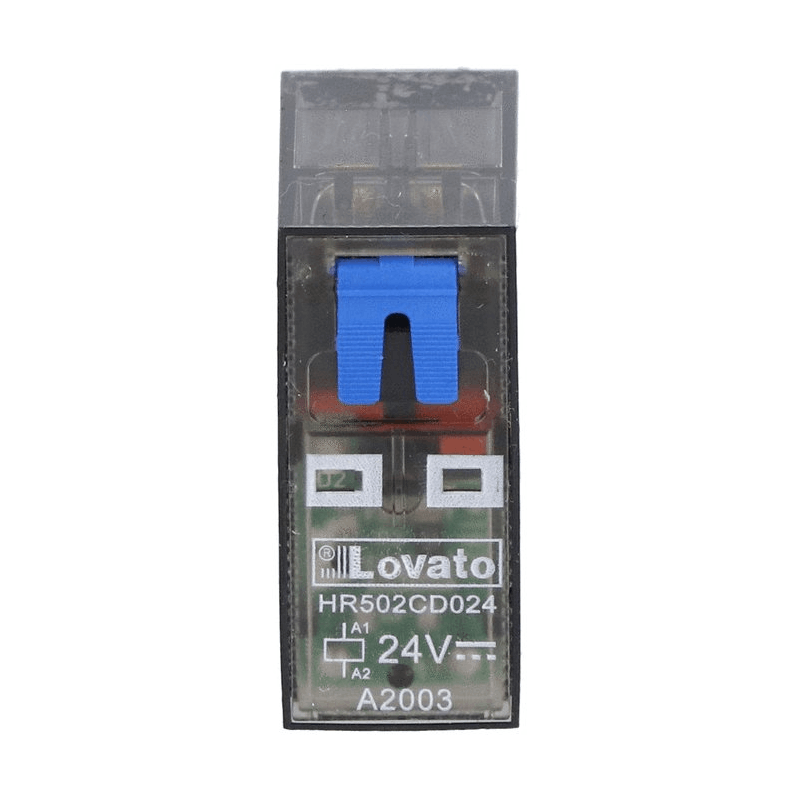

Lovato Mini Relay 8A 2 Switches 24VDC + LED HR502CD024
LOV HR502CD024
8013975233528
Lovato miniature relay with LED status indicator and mechanical actuator, with the following features:
- Contact configuration: 2 in exchange
- IEC/EN rated insulation voltage: 250V
- Rated impulse withstand voltage (Uimp): kV 6
- Conventional thermal free air current Ith IEC: 8A
- Maximum instantaneous current: 10A
- Rated current (In): 8A
- Relay control voltage: 24Vac
- Minimum switchable load: V / mA 5 / 100
- Contact impedance: mΩ 100
- Contact material: Ag/Ni
- Maneuvering times: Closing: ms <15 - Opening ms: <15
- Maneuvering: Mechanical life: cycles 10000000
To be mounted on socket part number HR5XS21, to be purchased separately.
€4.58
Items Available: 16
Frequently bought together
Other technical features:
- Electrical life span AC1: 50000
- Average AC coil absorption at 20°C VA: 1
- Average DC coil absorption at 20°C W: 0.4
- Operating limits: closing: % Un 70...110 - opening % Un 10....30
- Maximum frequency of cycles: cycles/hour 3600
- Maximum socket terminal tightening torque Nm: 0.6
- Socket screw tightening tool (cross / flat blade): PH1 / 4.5mm
- Mounting Position - Normal / Any
- Mounting: On 35mm DIN rail and with screws
- Operating temperature: -40/+70°C
- Storage Temperature: -40/+85°C
- Other features Signaling Yes - Mechanical contact position indicator: Yes - Mechanical test actuator: Yes
There are no reviews
Data sheet
- Type: Industrial relays
- Voltage: 24V
- Amps: 8A
