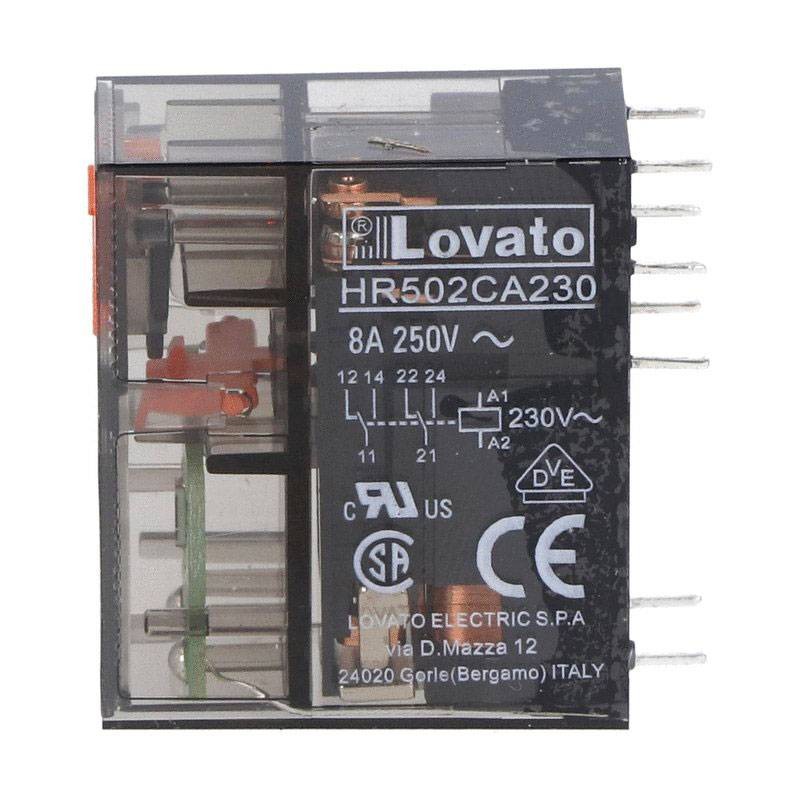

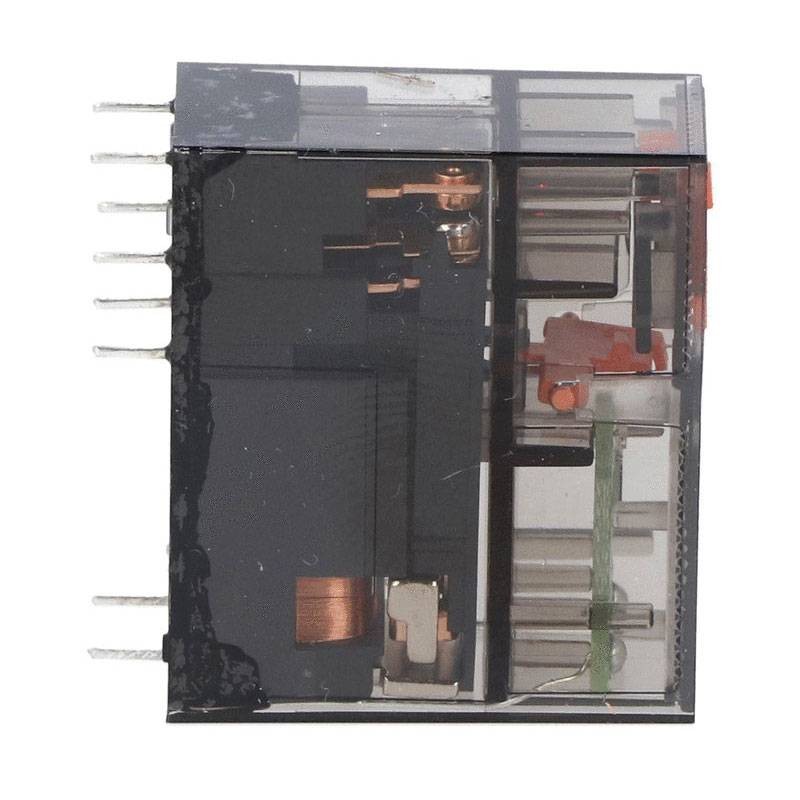

Lovato Mini Relay 8A 2 Switches 230V AC with Led Indicator HR502CA230
LOV HR502CA230
8013975233559

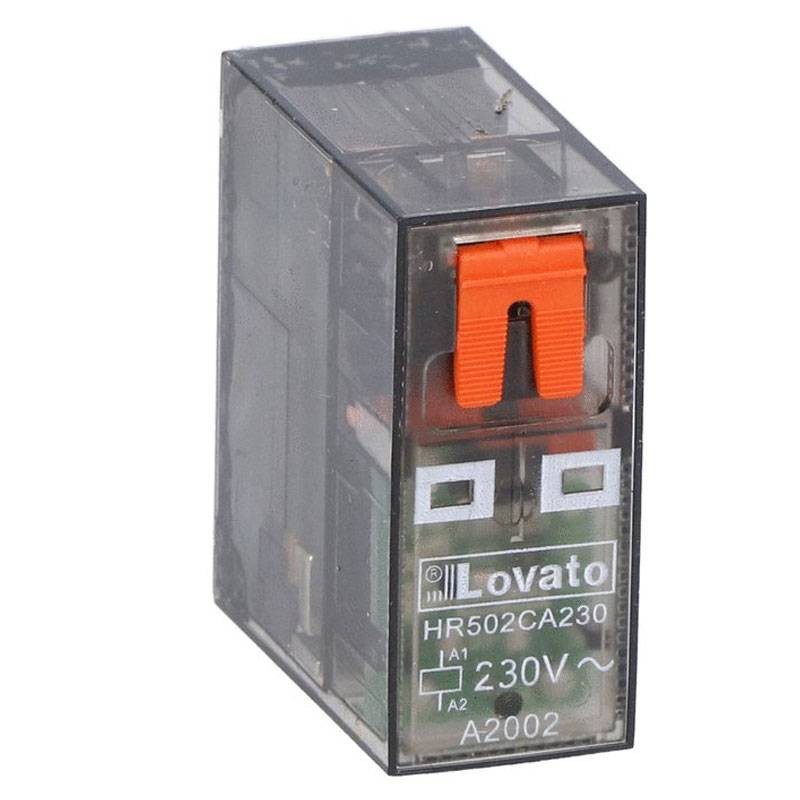

Lovato 2-switch mini relay with status LED and mechanical actuator. Socket-mounted HR5XS2, ideal for compact and reliable switchboards, with the following features:
-
Rated current: 8 amps
-
Coil control voltage: 230V AC
-
Rated power AC-1: 2000 VA
-
Insulation voltage: 250V
-
Impulse: 6kV
-
Fixing: DIN rail or with screws
-
Applications: Electrical panels, automation, industrial control
€7.04
Items Available: 292
: 70
Frequently bought together
Lovato mini relay compact, high performance, visible
The Lovato mini relay is designed to offer maximum reliability and immediate monitoring of switching status, thanks to its built-in LED indicator and visual mechanical actuator. This makes it ideal for civil, industrial and automation systems where continuity and quick inspection are required.
Two changeover contacts, power up to 2000 VA
The 2-switch configuration, allows flexible circuit management, supporting loads up to 8A in AC-1 (2000 VA) and 150 VA in AC-15 at 230V. It is also compatible with DC signals up to 30V 8A, providing versatility of use on various types of loads.

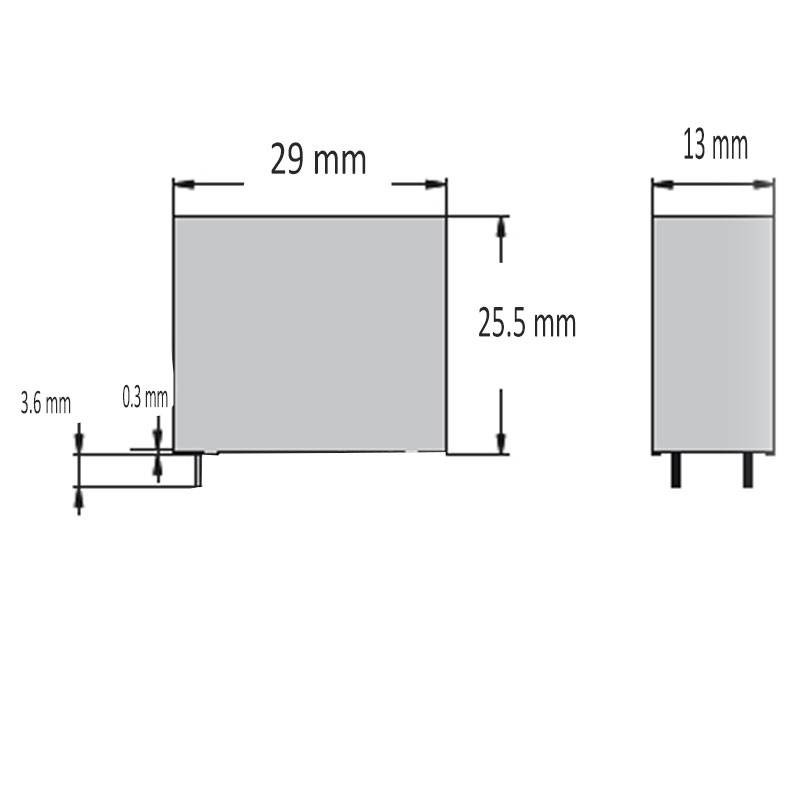

Compact and easy to install
Thanks to its miniaturized design, it is perfect for space-saving switchboards. It can be fixed on 35mm DIN rail or by screws, adapting to any configuration. HR5XS2 socket mounting also enables quick replacement and efficient wiring.
Reliable performance even under extreme conditions
The relay is designed to operate over a wide temperature range of -40 to +70 degrees, maintaining stability and accuracy even in harsh industrial environments. It features high impulse resistance (6kV) and low contact impedance, ensuring longevity and continuous operation.
Technical Specifications Lovato Mini Relay 2 Exchanges
Technical Data
| Feature | Value |
|---|---|
| Contact configuration | 2 in exchange (2CO) |
| Coil control voltage | 230V AC |
| Rated current | 8 A |
| Instantaneous current max. | 10 A |
| Max power AC-1 | 2000 VA |
| Rated power AC-15 | 150 VA 230V |
| Rated current in DC-1 | 30V: 8 A 110V: 0.3 A 220V: 0.1 A |
| Minimum load | 5 V / 100 mA |
| Contact impedance | ≤100 mΩ |
| AC coil power consumption | 1 VA |
| DC coil absorption | 0,4 W |
| Isolation voltage | 250 V |
| Pulse voltage | 6 kV |
| Fixing | 35 mm DIN rail or screws |
| Compatible socket | HR5XS2 |
| Ambient temperature | -40/+70 degrees |
Applications
| Areas of use | Description |
|---|---|
| Main Uses | Electrical panels, automation, industrial control |
There are no reviews
Data sheet
- Type: Industrial relays
- Voltage: 230VAC
- Amps: 8A
