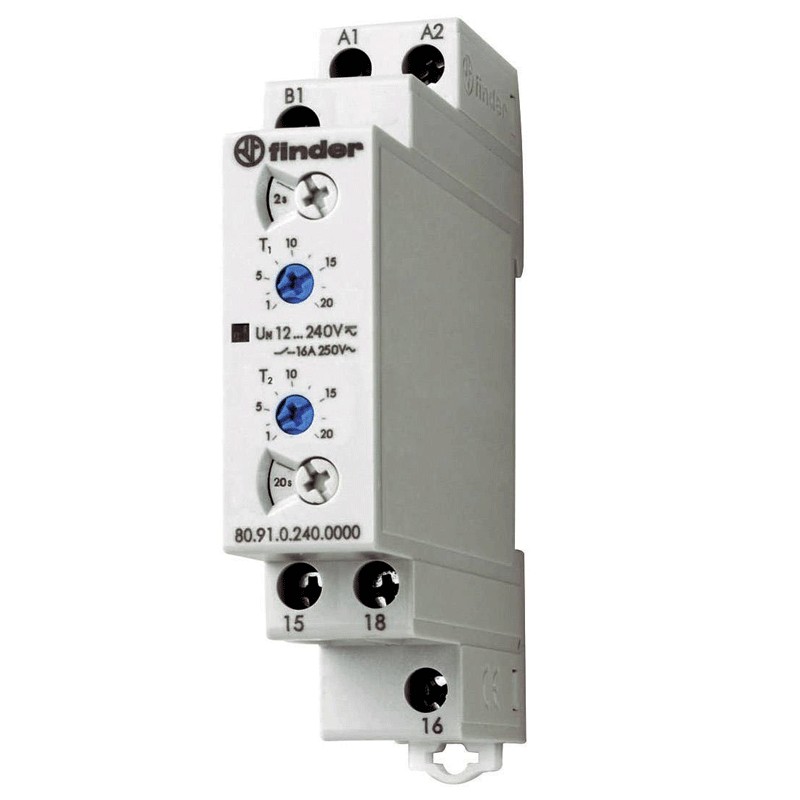

Relay timer Finder modular Intermittent 12 240Vac dc 809102400000


FIN 809102400000 8012823274447

Modular timer relay type 80.91, with the following characteristics

  • Contact configuration 1 exchange
  • Rated/Max instantaneous current 16/30A
  • Nominal voltage Max switching voltage AC 250/400V
  • Nominal load in AC1 VA 4000
  • Rated load in AC15 VA 750
  • Single-phase motor capacity (230 V AC) kW 0.55
  • Multivoltage
  • Single-function
  • Asymmetrical intermittence LI-LE
Request info about this product

Relay timer Finder modular Intermittent 12 240Vac dc 809102400000

€80.33
€80.33

Relay timer Finder modular Intermittent 12 240Vac dc 809102400000

€80.33
Tax included
klarna Pay in installments with Klarna
qty

Relay timer Finder modular Intermittent 12 240Vac dc 809102400000

€80.33

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Finder Series
  • DC1 breaking capacity: 16/0.3/0.12
  • Minimum switching load mW (V/mA) 500 (10/5)
  • Standard contact material AgNi
  • Rated power AC/DC VA (50 Hz) < 1.8/< 1W
  • Operating range AC/DC (50 Hz) 10.8...265V
  • Electrical endurance at rated load AC1 cycles 100 - 10
  • Time adjustment (0.1...2)s, (1...20)s, (0.1...2)min, (1...20)min, (0.1...2)h, (1...24)h
  • Repeatability % ± 1
  • Reset time ms 100
  • Minimum control pulse duration ms 50
  • Regulation accuracy - full scale % ± 5
  • Electrical life of nominal load in AC1 cycles 50 - 10
  • Ambient temperature °C -20...+60
  • Protection class IP20

Advantages

  • Width 17.5 mm
  • Six time scales from 0.1 s to 24 h
  • High input/output isolation
  • Mounting on 35 mm bar (EN 60715)
  • Blade+cross" housing with regulator, rotary switches for functions and time scales, 35 mm bar hook that can be operated with both slotted and Phillips screwdrivers

Data sheet

Type:
Timers
