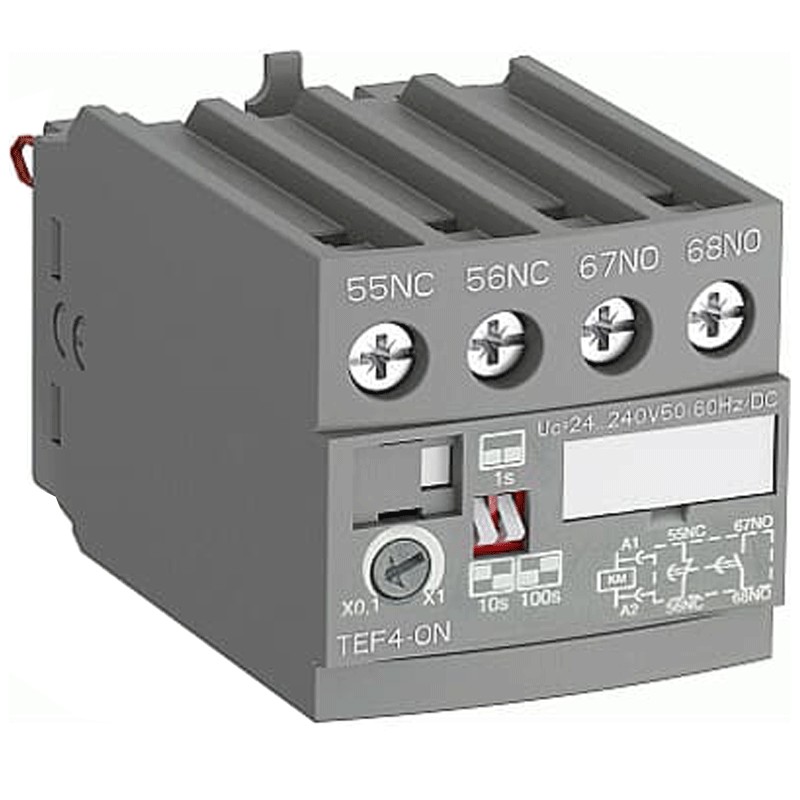

ABB Electronic Timer Delayed Excitation TEF4ON
ABB TEF4ON
3471523130630
ABB electronic timer, delayed at energizing, with the following characteristics:
- Rated insulation voltage (Ui):according to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V according to UL/CSA 300 V
- Rated impulse withstand voltage (Uimp):4 kV
- Rated operational current AC-15 (Ie):(24 / 127 V) 3 A - (220 / 240 V) 1.5A
- Rated short-time withstand current (Icw): for 0.1 s 8A
- Rated frequency (f):Auxiliary circuit 50 / 60 Hz
- Number of NC auxiliary contacts:1
- Number of NO auxiliary contacts:1
- Number of c/o auxiliary contacts (SPDT):0
Suitable for: AF09, AF12, AF16, AF26, AF30, AF38, AF40 ,AF52, AF65 ,AF80 ,AF96, AFC09 ,AFC12 ,AFC16 AFC26, AFC30, AFC38, NF, NFC.
€44.87
Items Available: 7
: 2
Features:
- Abb Series
- Torque: Auxiliary Circuit 1.2 Nm
- Timer relay type:ON-Delay
- Mounting Position: Position 1, 1 +/- 30°, 2, 3, 4, 5
- Type of terminal: Screw Terminals
- Degree of protection: according to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
- Maximum permissible operating altitude:2000 m
- Vibration resistance according to IEC 60068-2-6:5 ... 300 Hz 3 g Closed position / 2 g Open position
Ambient temperature:
- Close to the contactor for storage:-40 ... +80 °C
- Close to the contactor for free air operation: -25 ... +70 °C
There are no reviews
Data sheet
- Type: Timers
