Finder multifunctional modular heat sink 24V 240AC DC 8A 805102400000


FIN 805102400000 8012823345734

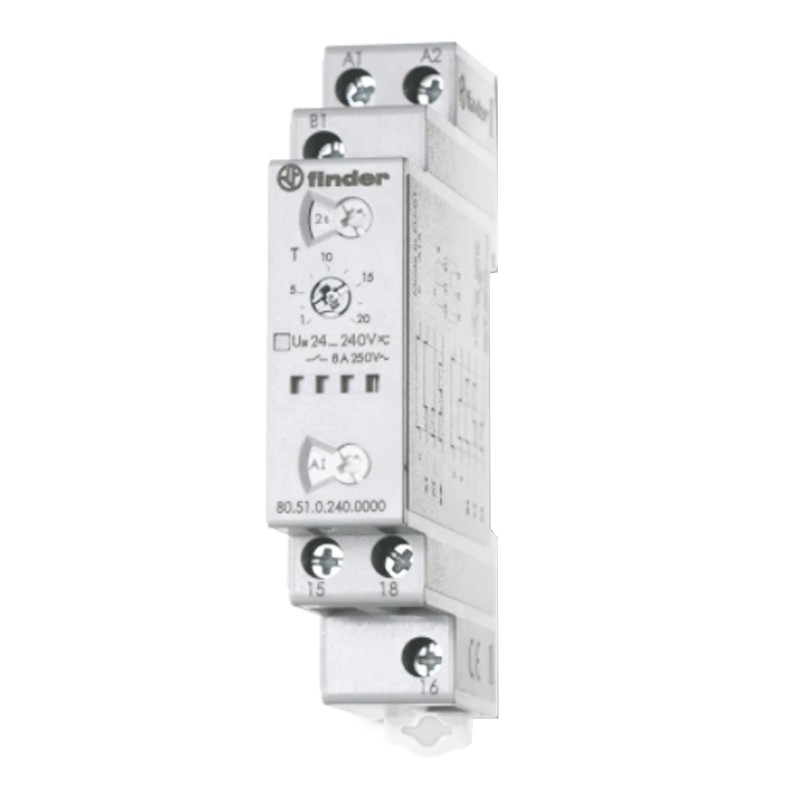

Modular timer Finder Type 80.51, with the following features:

  • Supply voltage (24...240) V AC/DC
  • Nominal voltage Max. switching voltage AC 250/400V
  • Current rating/Max instantaneous current 8/16A
  • Rated power AC/DC VA (50 Hz)/W < 1.8/< 1
  • Rated load on AC1 VA 2000
  • Rated load in AC15 VA 400
  • Single-phase motor capacity (230 V AC) kW 0.3
  • Contact configuration: 1 exchange 16A
  • Multivoltage/multifunction
Request info about this product

Finder multifunctional modular heat sink 24V 240AC DC 8A 805102400000

€30.78
€30.78

Finder multifunctional modular heat sink 24V 240AC DC 8A 805102400000

€30.78
Tax included
klarna Pay in installments with Klarna
qty

Finder multifunctional modular heat sink 24V 240AC DC 8A 805102400000

€30.78

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Finder Series
  • Switching capacity DC1 30/110/220 V: 8/0.3/0.12
  • Minimum switching load mW (V/mA) 500 (10/5)
  • Standard contact material AgNi
  • Rated power AC/DC VA (50 Hz) VA/W: 1.2/0.5
  • Operating range :AC/DC 17...265
  • Time adjustment: (0.1...2)s, (1...20)s, (0.1...2)min, (1...20)min, (0.1...2)h, (1...24)h
  • Repeatability % ± 1
  • Reset time ≤ 50 ms
  • Minimum control pulse duration 50 ms
  • Adjustment accuracy - full scale %± 5
  • Electrical life of nominal load in AC1: 100 - 10 cycles
  • Ambient temperature -10...+50
  • Protection category IP20

Advantages

  • Width 17.5 mm
  • Six time scales from 0.1 s to 24 h
  • High input/output isolation
  • 35 mm bar mounting (EN 60715)
  • Blade+cross" housing with regulator, rotary switches for functions and time scales, 35 mm bar hook that can be operated with both slotted and Phillips screwdrivers
  • New multi-voltage versions with "PWM clever" technology

Functions:

  • AI: Switch-on delay
  • DI: Interval
  • BE: Switch-off delay time with control signal
  • CE: Switch-on delay and switch-off delay with control signal
  • DE: Instantaneous interval with control signal

Data sheet

Type:
Timers
Version:
Multifunction
