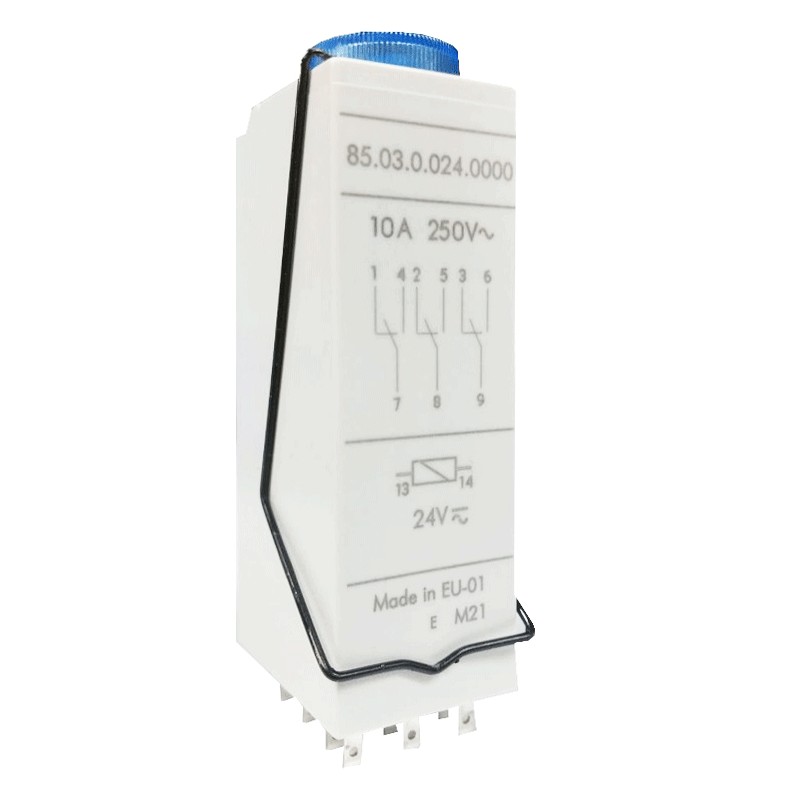

Multifunction timer relay Finder 24VAC DC 850300240000


FIN 850300240000 8012823275529

Plug-in relay/timer Finder Type 85.03 multifunctional, with the following features:

  • Voltage rating Max switching voltage AC 250/400V
  • Current rating/Max instantaneous current 10/20A
  • Rated load in AC1 VA 2500
  • Rated load in AC15 VA 500
  • Single-phase motor capacity (230V AC) kW 0.37
  • Non-polarized AC/DC power supply
  • Current 10A
  • Contact configuration 3 switches
  • Seven time scales from 0.05 s to 100 h
  • Mounting on 94 series sockets
Request info about this product

Multifunction timer relay Finder 24VAC DC 850300240000

€50.43
€50.43

Multifunction timer relay Finder 24VAC DC 850300240000

€50.43
Tax included
klarna Pay in installments with Klarna
qty

Multifunction timer relay Finder 24VAC DC 850300240000

€50.43

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Finder Series
  • DC1 breaking capacity: 10/0.25/0.12
  • Minimum switching load mW (V/mA) 300 (5/5)
  • Standard contact material AgNi
  • Rated power AC/DC VA (50 Hz) 2/2W
  • Operating range AC/DC (50 Hz) (0.85...1.1)UN
  • Time adjustment (0.05...1)s, (0.5...10)s, (5...100)s, (0.5...10)min, (5...100)min, (0.5...10)h, (5...100)h
  • Repeatability % ± 2
  • Electrical service life at rated load AC1 cycles 200 - 10
  • Reset time ≤ 20 ms
  • Adjustment accuracy - full scale % ± 5
  • Ambient temperature °C -20...+60
  • Protection class IP40

Functions:

  • AI: Switch-on delay
  • DI: Interval
  • SW: Symmetrical intermittence start ON
  • GI: Delayed pulse

Data sheet

Type:
Timers
Version:
Multifunction
