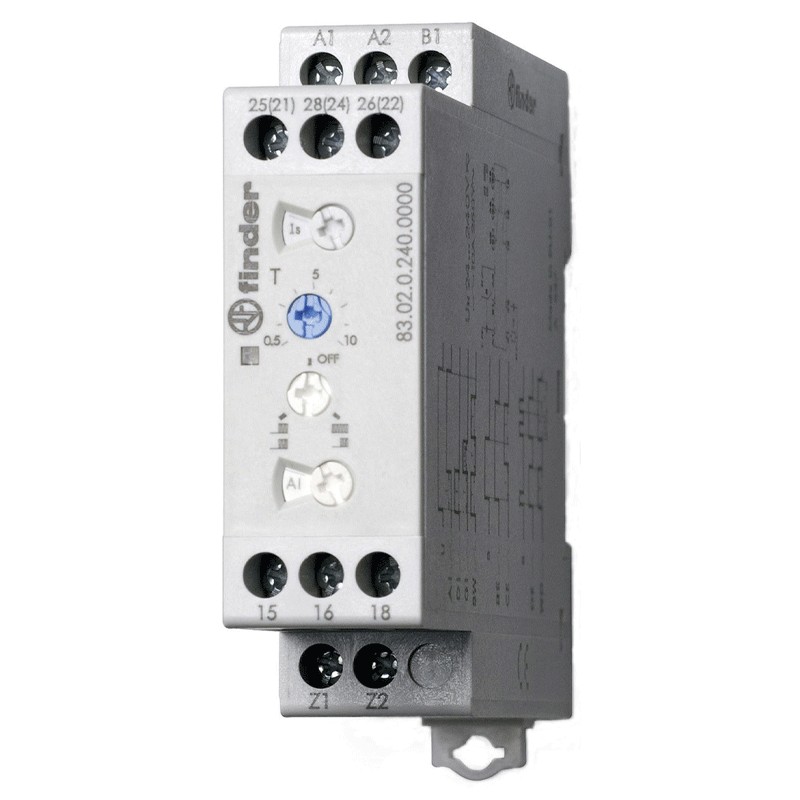

Multifunction timer Finder 12A 24/240Vac DC 830202400000


FIN 830202400000 8012823358420

Multi-function timer Finder Type 83.02, with the following features:

  • Nominal voltage/ Max. switching voltage 250/400V AC
  • Nominal supply voltage (UN): 24...240 V AC/DC
  • Rated power AC/DC VA (50 Hz) < 2/< 2W
  • Nominal current/Max instantaneous current: 12/30A
  • Multivoltage
  • Multifunction
  • Adjustable timing with external potentiometer
  • Contact configuration 2 exchanges
  • Equipped with adjustable timer with external potentiometer
Request info about this product

Multifunction timer Finder 12A 24/240Vac DC 830202400000

€101.36
€101.36

Multifunction timer Finder 12A 24/240Vac DC 830202400000

€101.36
Tax included
klarna Pay in installments with Klarna
qty

Multifunction timer Finder 12A 24/240Vac DC 830202400000

€101.36

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Finder Series
  • Operating range AC 16.8...265V, DC 16.8...265
  • Nominal load in AC1 3000VA
  • Rated load in AC15 (230V AC) 750VA
  • Single-phase motor capacity (230 V AC) 0.5kW
  • Switching capacity in DC1: 30/110/220 12/0.3/0.12V
  • Minimum switching load mW (V/mA) 300 (5/5)
  • Standard contact material AgNi
  • Time adjustment (0.05...1)s, (0.5...10)s, (0.05...1)min, (0.5...10)min, (0.05...1)h, (0.5...10)h, (0.05...1)d, (0.5...10)d
  • Repeatability ± 1
  • Reset time 200ms
  • Minimum command pulse duration 50ms
  • Adjustment accuracy - end of scale ± 5% Electrical life
  • Electrical life of nominal load in AC1 cycles 60 - 10
  • Ambient temperature -20...+60°C
  • Protection category IP20

Functions:

  • AI: Switch-on delay
  • DI: Interval
  • GI: Delayed pulse
  • SW: Symmetrical intermittence start ON
  • BE: Switch-off delay time with control signal
  • CE: Switch-on and switch-off delay time with control signal
  • DE: Instantaneous interval with control signal
  • WD: Monitoring

Data sheet

Type:
Timers
Version:
Multifunction
