Finder switching power supply 24VDC 60W 2.5A modular 786012302402
FIN 786012302402
8012823402895

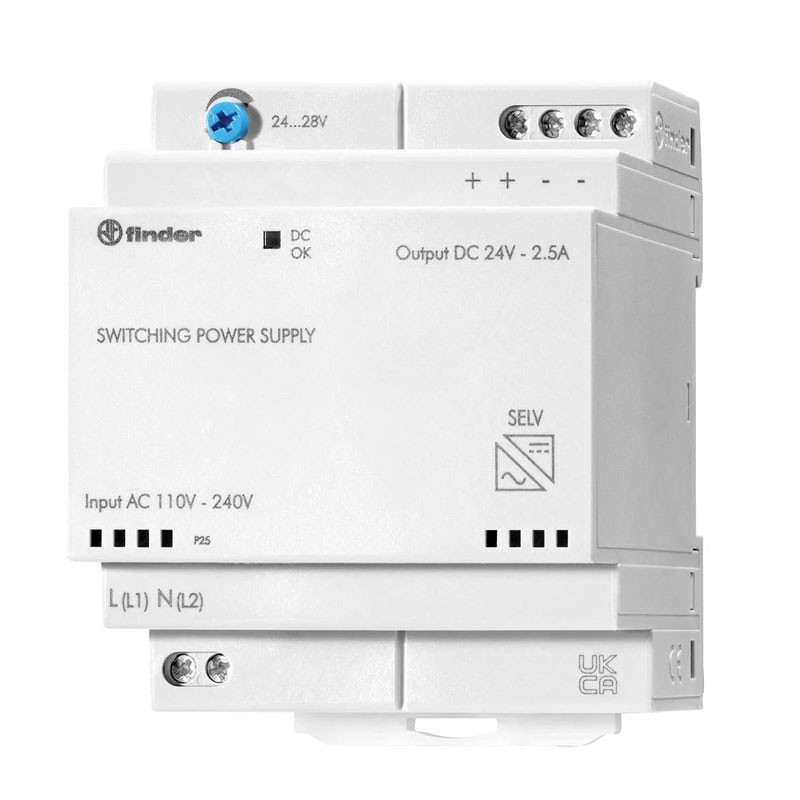

Finder Type 78.60 switching power supply, with the following characteristics:
- Supply voltage in AC (50/60 Hz) 110...240V, in DC non-polarized 220V
- Rated voltage 24V
- Voltage adjustable between 24 and 28V
- Operating range 88...265V AC (50/60 Hz), in DC 140...370
- Maximum power consumption 105VA, (@ 100 V AC, 50 Hz) 68W
- Maximum current consumption (@ 88 V AC) 0.9A
- Maximum peak current (at 265 V) for 3 ms 30A
- Output 24V DC, 60W
- ZVS technology (zero-voltage-switching), in quasi-resonant mode
- Can be used as a battery charger
- Suitable for SELV systems (according to EN 60950)
- Suitable for battery-backed systems
€59.34
Items Available: 26
: 3
Features:
- Finder series
- Output current (input -20...+40 °C, 230 V AC) 2.8A
- 50 °C, input (100...265)V AC - (140...370)V DC: 2.5A
- Rated power 60 watts
- Output power (-20...+40 °C, input 230 V AC) 68W
- Peak current for 3 ms: 10A
- Voltage variation (no load to full load) < 1%
- Output voltage adjustable 24...28V
- Ripple voltage at full load < 200mV
- Hold-up time at with 100 V AC input ms: > 20 - full load: with 260 V AC input ms:> 130
- Stand-by power consumption: < 0.4W
- Power Factor: 0.65
- Replaceable input fuse 1.6 A - T
- Efficiency (@ 230 V AC) 91%
- MTTF h: > 500 - 10
- Switch-on delay < 1S
- Dielectric strength between input/output 3000V AC
- Dielectric strength between input/PE 1500V AC
- Ambient temperature: -20...+70°C
- Degree of protection IP20
- Complies with EN 60950-1 and EN 61204-3 standards
- Parallel connection for automatic redundancy: with OR-IN diode
- Dual and series connection

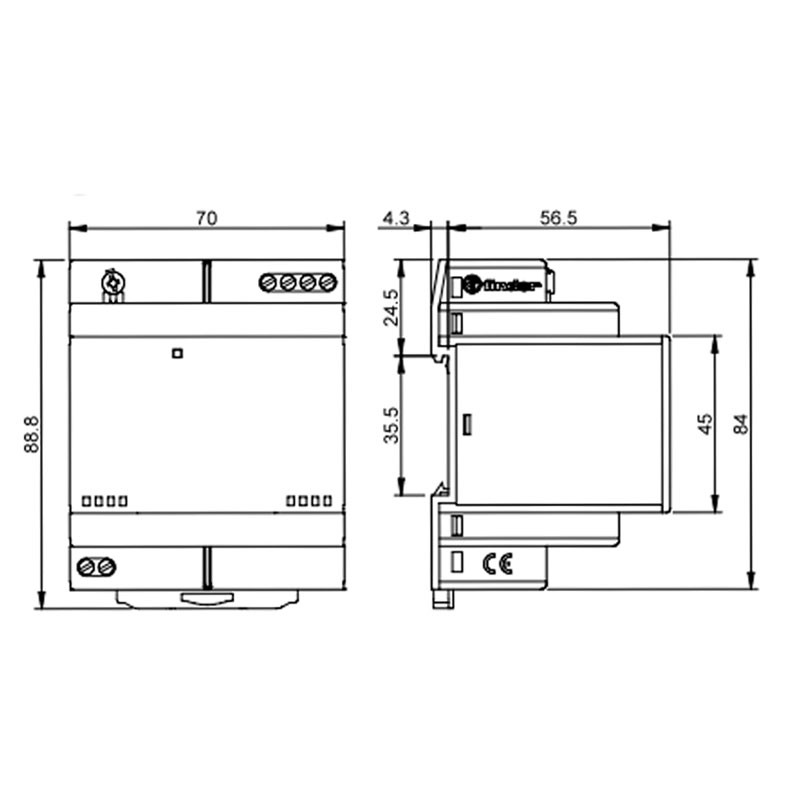

- Small size: 70 mm (4 modules) wide
- 35 mm bar mounting (EN 60715)
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Degree of protection: IP20
- Amps: 2.5A
