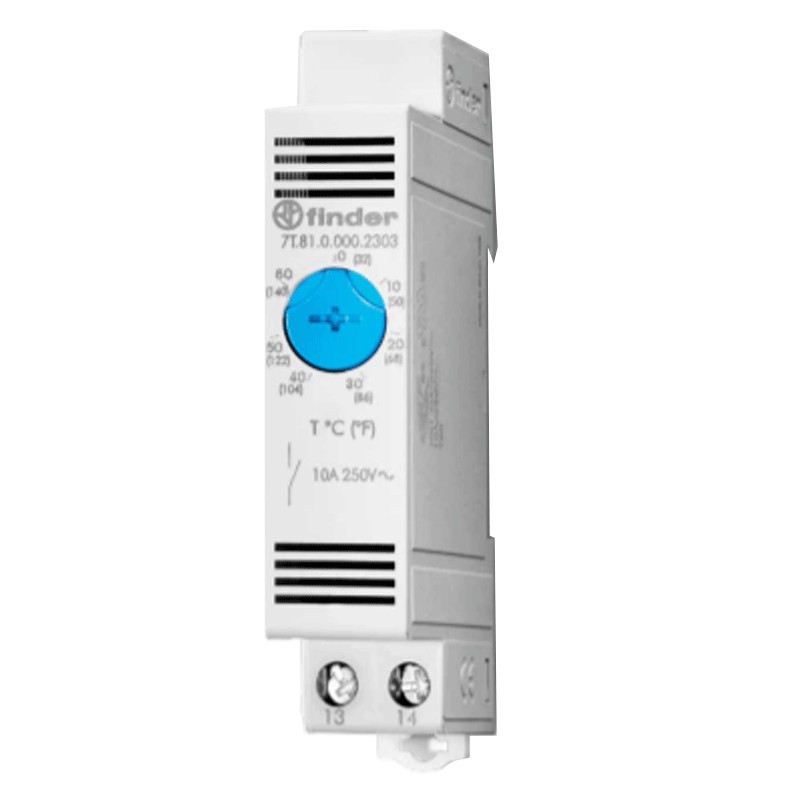

Finder analog thermostat for ventilation 10A 250V 7T8100002303
FIN 7T8100002303
8012823363264
Analog thermostat for ventilation Finder Type 7T81, with the following characteristics:
- Rated/Max instantaneous current 10/20A
- Nominal voltage/Max nominal voltage 250/250V AC
- Activates ventilation
- Contact configuration 1NO
- Nominal load in AC1 2500VA
- Nominal load in AC15 (230V AC) 250VA
Finder analog thermostat for ventilation 10A 250V 7T8100002303
€15.10
€15.10
Tax included
Tax included
Pay in installments with Klarna
Items Available: 72
Features:
- Finder Series
- Single-phase motor capacity AC3 (230 V AC) 1.1kW
- Breaking capacity in DC1: 30/110/220 V 1/0.3/0.15A
- Minimum switching load mW (V/mA) 500 (12/10)
- Standard contact material AgNi
- Setting range (ventilation): -20...+40 -20...+60 0...+60 °C
- Differential 7 ± 4K
- Electrical life in AC1 cycles 100 - 10
- Ambient temperature °C: -45...+80
- Protection category IP20
Advantages:
- Small size (width 17.5 mm)
- Bimetal contact
- Wide adjustment range
- Long electrical life
- Mounting on 35 mm bar (EN 60715)
Data sheet
- Type:
- Thermostats
- Voltage:
- 250 Vac
- Degree of protection:
- IP20
- Amps:
- 10A
