Ferrari Elastic rubber joint for water diameter 100 mm 070362/E
FER 070362/E
8025584855626

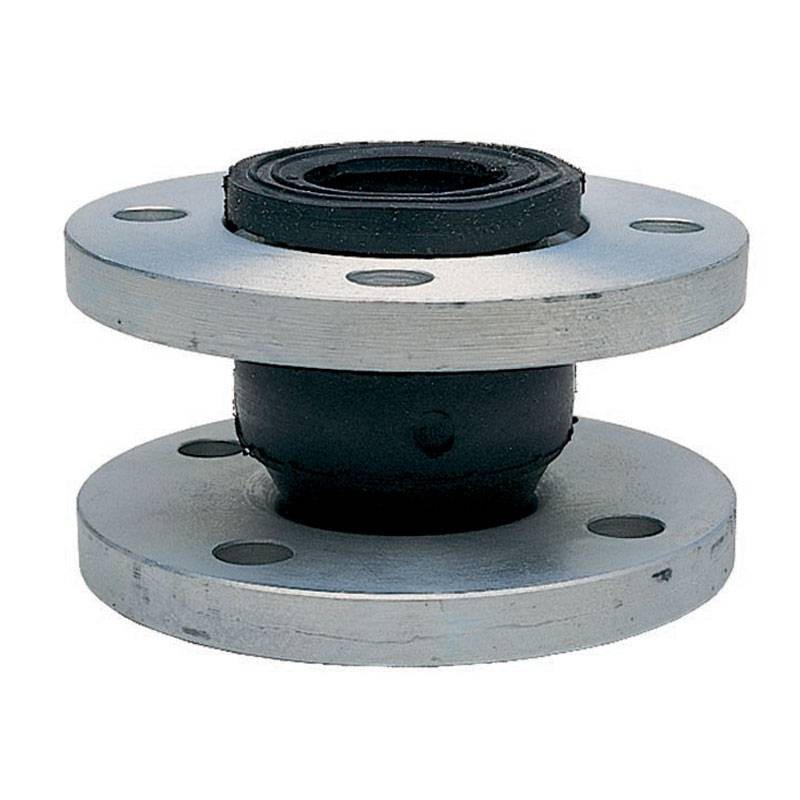

Ferrari Rubber elastic joint for water with the following characteristics:
- Diameter: 100 mm - 4 inches
- Length: 150 mm
- Compression stroke: 19 mm
- Elongation stroke: 10 mm
- Lateral stroke: 13 mm
- Angular stroke: 15 degrees
Elastic joints perform a function of protecting implants from elongation, compression and bending movements.
They also perform a vibration-damping and noise-absorbing function and enable the effects of water hammers to be reduced.
They are suitable: for water systems, pumping systems, air conditioning and heating systems.
€75.79
Items Available: 4
: 2
Features:
- Sleeve: EPDM
- Flange: carbon steel
- Operating pressure: 10 bar
- Temperature: -10/+80 degrees
- Reinforcement handle: Nylon
- Ring: Steel
- Flange: Carbon steel PN10/16
- Use: Hot and cold water
There are no reviews
Data sheet
- Diameter: 100mm
- Type: Connections
- Model: Straight
- Connections: 4 inches
- Material: Rubber
