Fischer STFN 10°/15° pre-assembled triangle 00524335


FIS 00524335 8001132036884

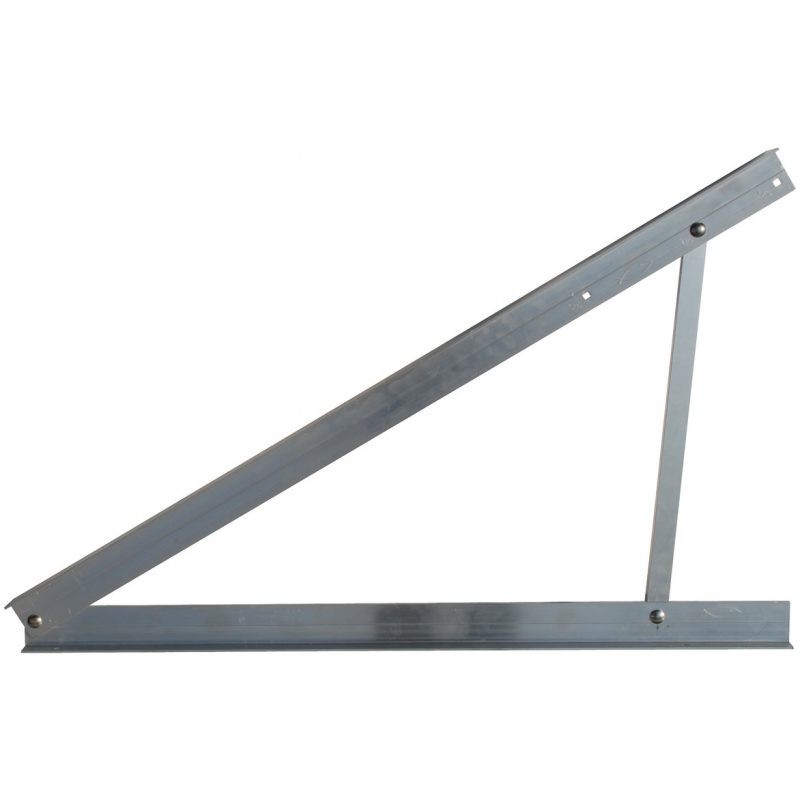

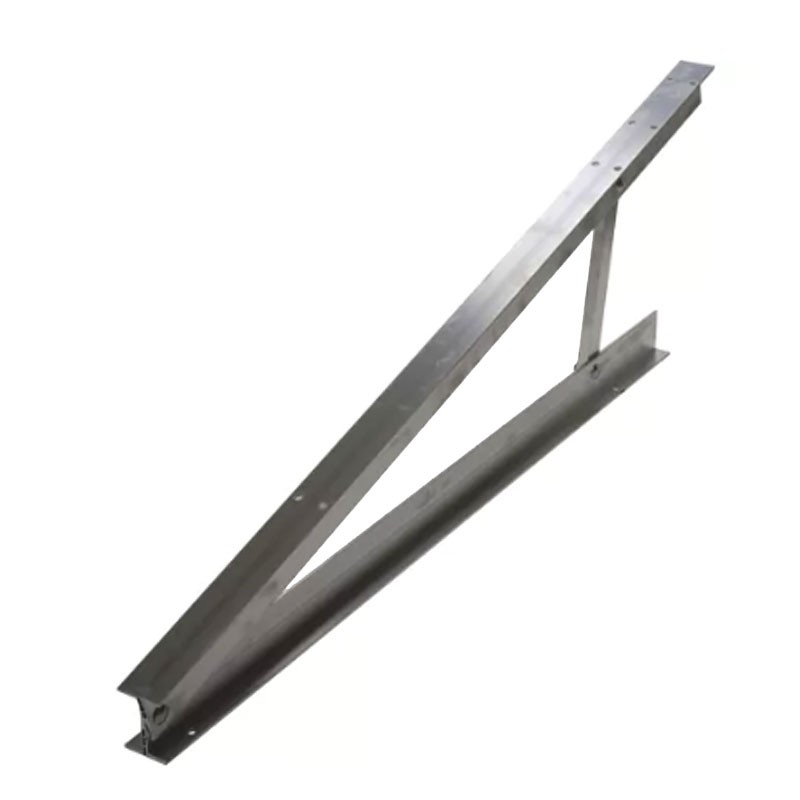

Fischer STFN 10°-15° pre-assembled triangle for flat roofs for both vertically and horizontally oriented modules with the following characteristics:

  • Profile cross section: 3.78 cm²
  • Hole diameter 9 mm
  • Tightening torque: 10 Nm
  • Clamping wrench: 13 mm
  • Certifications: TUV - R 60154136

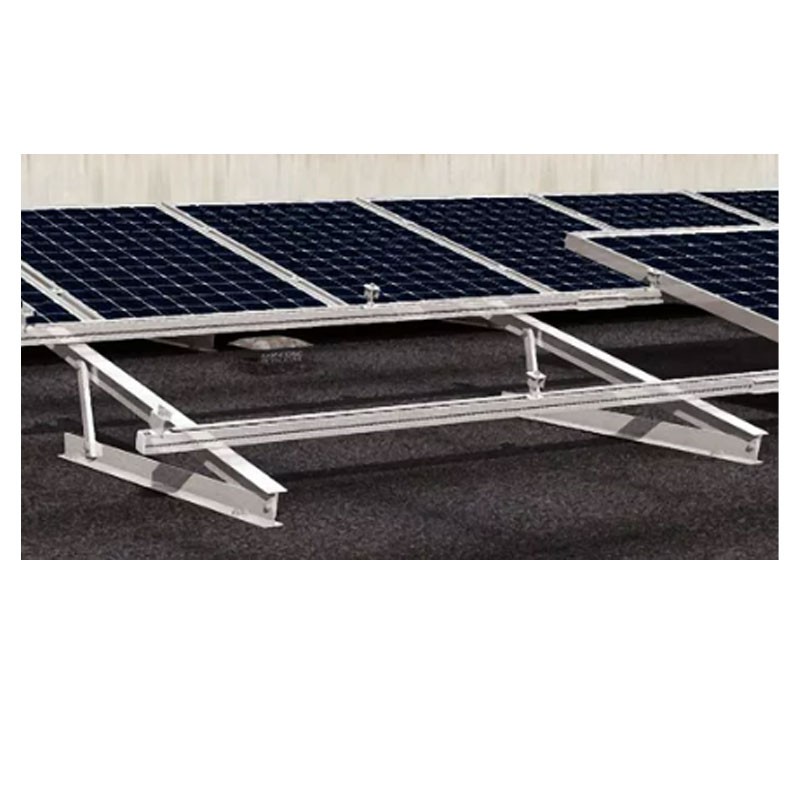

Suitable for flat roofing system with triangles with Solar-fish Profile and solar panels.


Possible configurations: single module in horizontal - single module in vertical.

Request info about this product

Fischer STFN 10°/15° pre-assembled triangle 00524335

€40.44
€40.44

Fischer STFN 10°/15° pre-assembled triangle 00524335

€40.44
Tax included
klarna Pay in installments with Klarna
qty

Fischer STFN 10°/15° pre-assembled triangle 00524335

€40.44

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

Advantages:

  • Complete: the STFN triangle comes pre-assembled, and the accessories for connection to Solar profiles are included in the package
  • Flexible: the triangle is available in 2 models (STFN 10° - 15°, STFN 25° - 30° - 35°) and 8 different angles are possible by moving the diagonal in 2 or 3 positions respectively

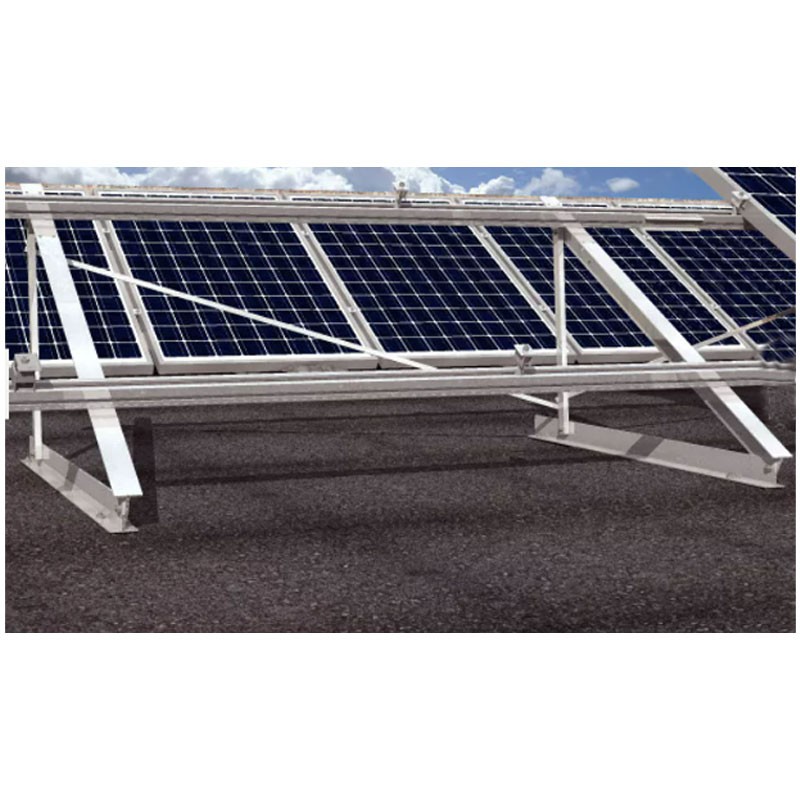

  • Versatile: all STFN triangles allow modules to be arranged both horizontally and vertically

Versions:

  • AW 6063/6060 T66 aluminum triangular frame according to EN 755-2:2013
  • A2-70 stainless steel hardware according to EN ISO 3506- 1/2:2009

Assembly:

  • Define the spacing of the triangles according to the snow and wind loads of the installation area of the system, according to the National Standards.
  • Identify the position of the triangles according to the supporting structure and layout of the installation.
  • Secure the base of the triangle with the appropriate anchor depending on the substrate support material.
  • Connect the Solar profile to the diagonal of the triangle.

Data sheet

Type:
Fixing Accessories
