Fischer pre-assembled triangle 25 30 35 degrees for photovoltaic 00511874


FIS 00511874

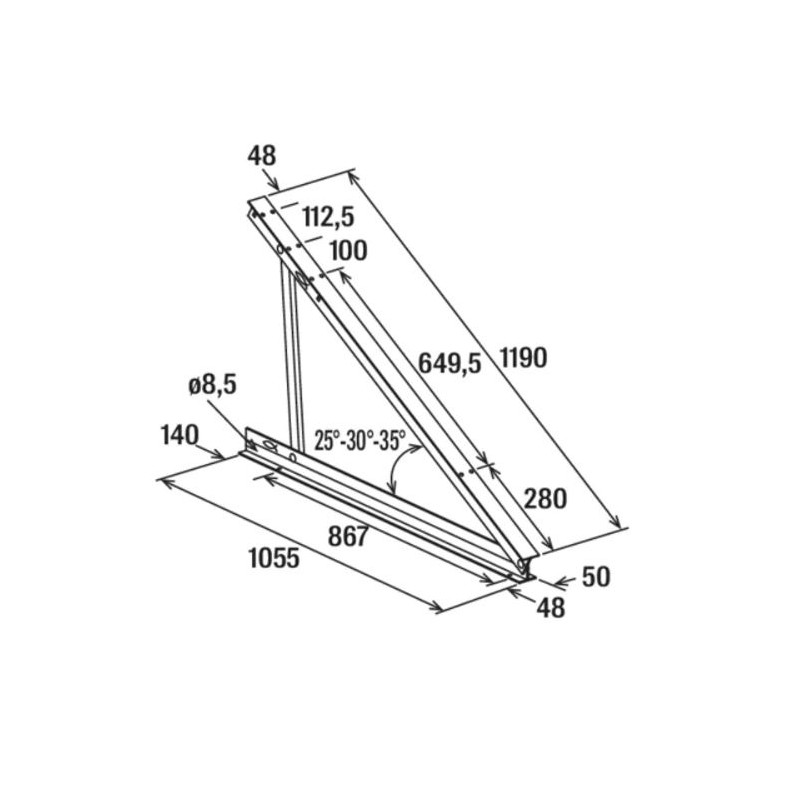

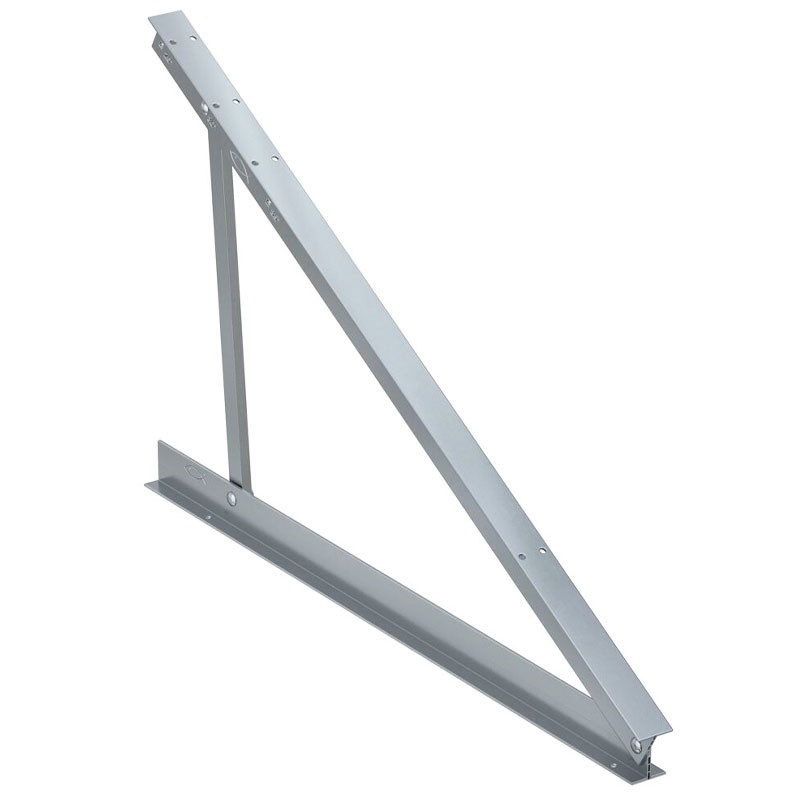

Fischer STFN pre-assembled triangle bracket for photovoltaic installations, with the following features:



  • Adjustable tilt: 25/30/35 degrees
  • Made of AW 6063/6060 T66 aluminum
  • Supplied pre-assembled and connection accessories to Solar profiles are included in the package
  • Stainless steel A2-70 hardware in accordance with EN ISO 3506-1/2:2009
  • Profile cross-sectional area: 3.78 cm²
  • Hole diameter: 9 mm
  • Tightening torque: 10 Nm
  • Tightening wrench: 13 mm
  • Certifications: TUV - R 60154136



The selling price refers to the purchase of a single piece.

Request info about this product

Fischer pre-assembled triangle 25 30 35 degrees for photovoltaic 00511874

€46.56
€46.56

Fischer pre-assembled triangle 25 30 35 degrees for photovoltaic 00511874

€46.56
Tax included
klarna Pay in installments with Klarna
qty

Fischer pre-assembled triangle 25 30 35 degrees for photovoltaic 00511874

€46.56

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

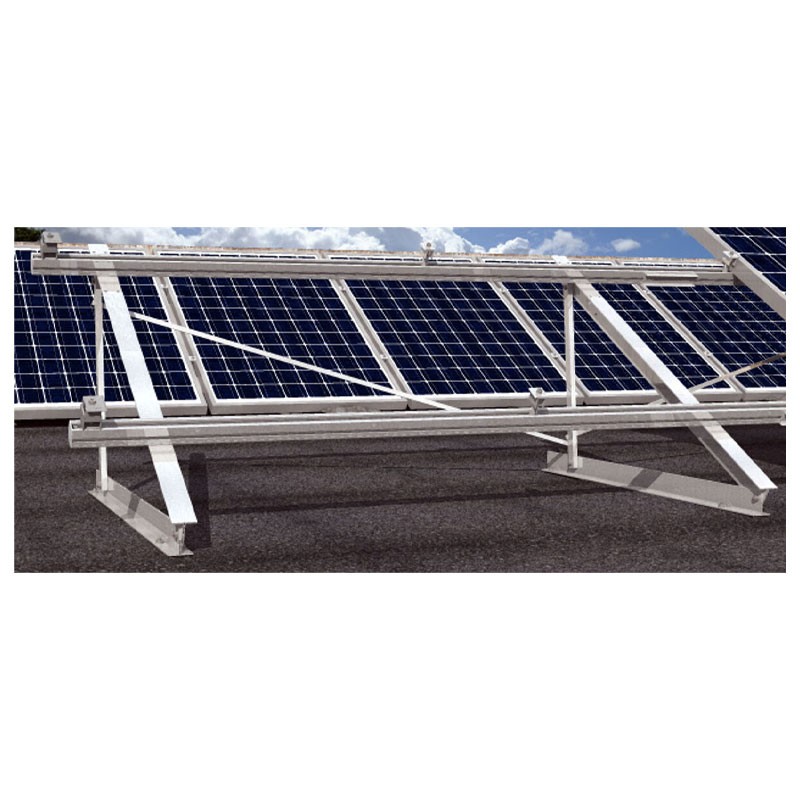

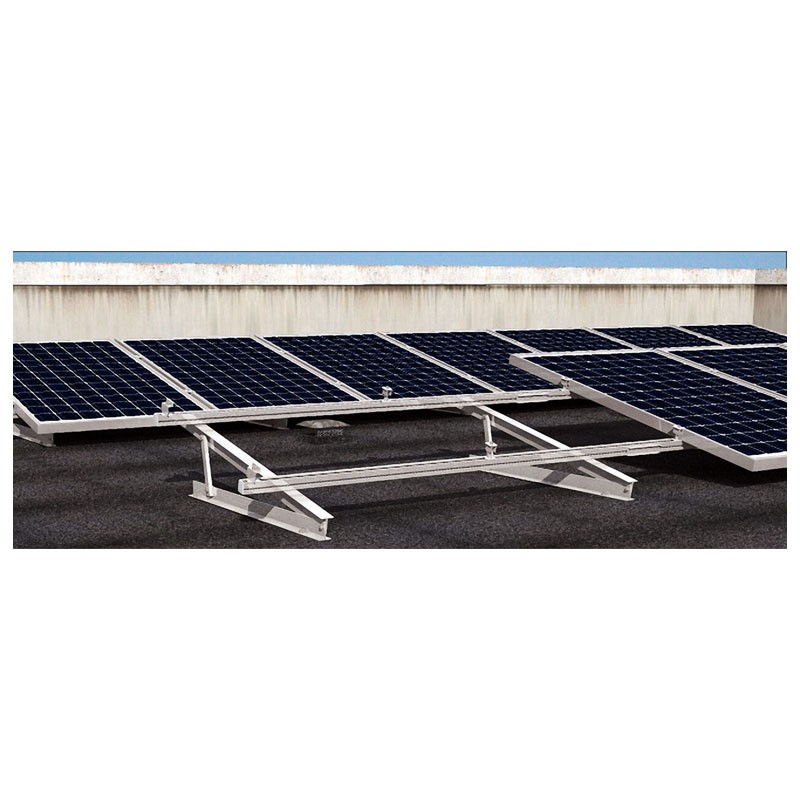

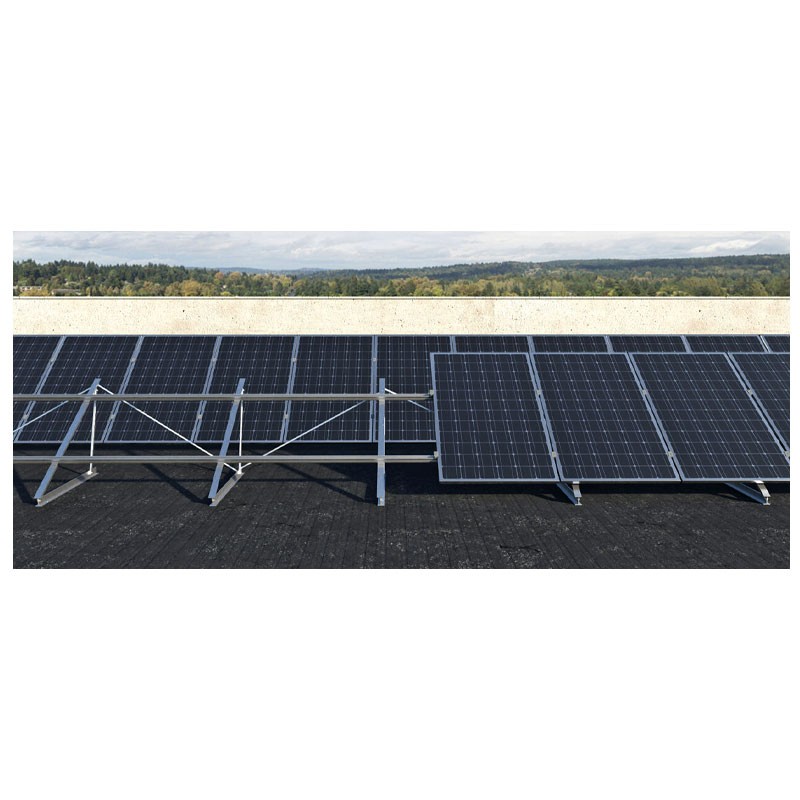

The STFN 25°-30°-35° triangle for low-position installation of PV panels on flat roofs. Suitable for installation of panels in potrait or landscape orientation. It allows both horizontal and vertical arrangement of modules.





Assembly:

  • Define the spacing of the triangles according to the snow and wind loads of the installation area of the system, according to the National Standards
  • Locate the position of the triangles according to the supporting structure and layout of the system
  • Secure the base of the triangle with the appropriate anchor depending on the substrate support material
  • Attach the Solar profile to the diagonal of the triangle using the screws in the package

Data sheet

Type:
Fixing Accessories
