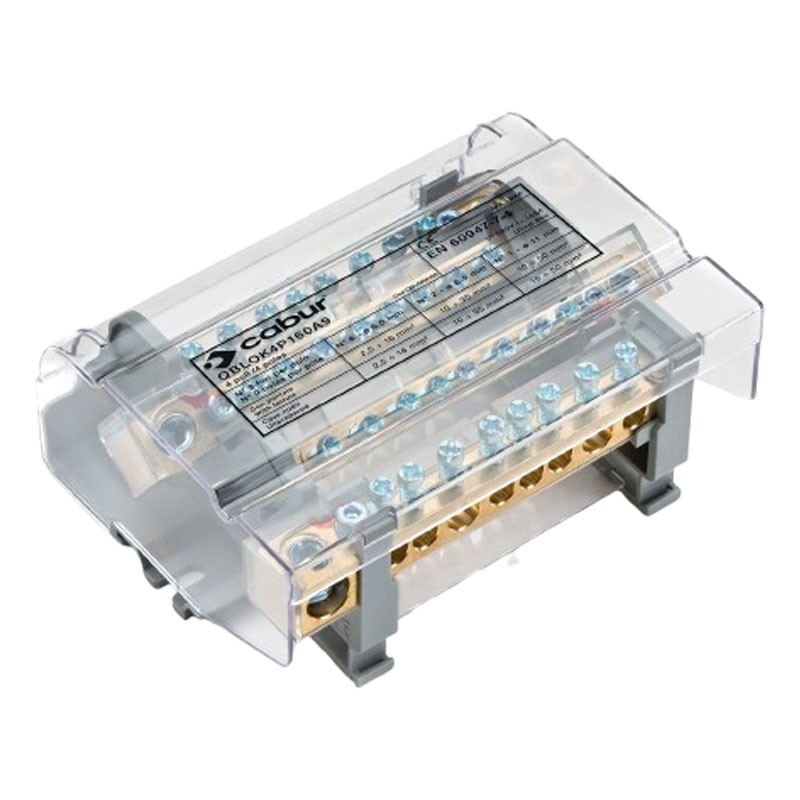

Cabur four-pole terminal block 160A 500V 4P Gray QBLOK4160S
CBR QBLOK4160S
8017963098151
Cabur four-pole terminal block, safe and orderly distribution with DIN rail or panel mounting, with the following features:
-
Rated current: 160A
-
Max AC/DC voltage: 500V
-
Number of poles: 4 (tetrapolar)
-
Mounting: DIN rail (TH35) or panel mounting
-
Multiple connections: 1 input + 8 outputs
-
Color: Gray
€33.62
Items Available: 11
: 3
Safe and professional electrical distribution
The QBLOK 160A four-pole terminal block is designed for orderly and safe power distribution in industrial and civil electrical panels. The QBLOK4P160A9 model, with 4 poles and current rating up to 160A, is ideal for multiple connections in medium power systems. Made of high-performance materials, it ensures high electrical and mechanical strength, with compact size and easy assembly.
Versatile mounting and simplified wiring
This terminal block can be installed on a TH35-7.5 / TH35-15 DIN rail or panel mount, offering maximum flexibility to the installer. Staggered holes facilitate wiring and tightening, reducing service time. It also features insulating shields on each conductor bar, increasing installation safety.
Recommended applications
-
LV switchboards
-
Power distribution in civil and industrial installations
-
Multiple connections in switchboards and control cabinets
-
4-pole distribution systems
Cabur Terminal Block Technical Specifications
Available Connections
| Input A | 1 × 50 mm² (rigid or flexible) - WP 350/30 terminal |
| Output B | 2 × 35 mm² (rigid or flexible) - WP 250/29 terminal |
| Output C | 6 × 16 mm² (2.5-16 mm² rigid or flexible) - WP 160/22 terminal |
Performance and Safety
| Rated voltage | 500 V AC/DC |
| Short duration current (Icw 1s) | 6 kA |
| Peak current (Ipk) | 28 kA |
| Rated impulse voltage | 8 kV |
| Pollution degree | 3 |
| Tightening torque | 2 / 2.5 Nm |
| Conductor stripping length | 13 mm |
| Insulating material | High-strength polyamide and polycarbonate |
Dimensions
| Width | 131 mm |
| Length | 99 mm |
| Height (on DIN rail) | 54 mm (TH35-7.5) / 61 mm (TH35-15) |
| Height (panel) | 53 mm |
Compatible Accessories
| Single tag for marking | CNU/8/51 (Ref. NU0851S) |
| Screw terminal block | BT/3 (cod. BT003) |
| TH35 interlocking block | BTO (cod. BT007) |
| TH35 and G32 interlocking block | BTU (cod. BT005) |
There are no reviews
Data sheet
- Type: Terminal blocks
