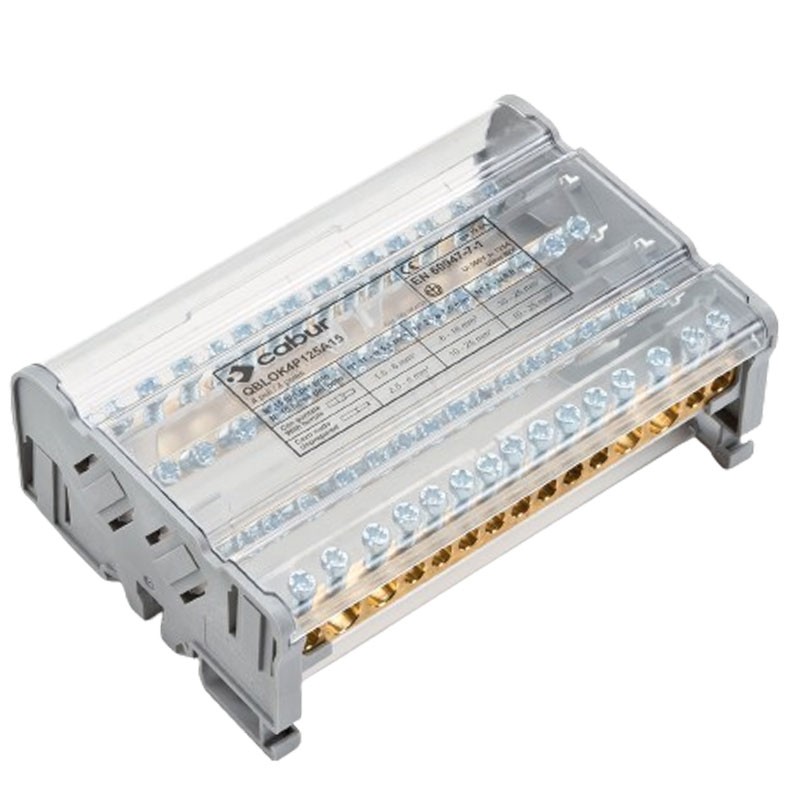

Cabur distribution terminal block QBLOK4P125A15 125A 4 Poles QBLOK4126
CBR QBLOK4126
8017963060264
Cabur QBLOK series tetrapolar distribution terminal block:
- Max AC/DC voltage 500 V
- Max current with rated section 125 amps
- Allowable short-time withstand current (Icw) 4.2 kA
- Peak current (Ipk) 19 kA
- Rated impulse voltage / pollution degree 8kV / 3
- Stripping length 13 mm
- Tightening torque (nom. / max.) 2 / 2.5 Nm
- Plastic material Polyamide, polycarbonate
- Width (pitch) 137 mm
- Length 97 mm
- Height mounted on: 52 / 59 mm
€24.60
Items Available: 43
: 13
Advantages:
- Rail and panel mounting
- Insulation shield for each conductor rod
- Staggered holes to simplify wiring
- Galvanized steel screws with combined cut-out
Input A:
- 2 x 35 mm² nominal cross-section
- Gray color
- Connection capacity (flexible) 10-35 mm²
- Connection capacity (rigid) 10-35 mm²
- Connection capacity (with terminal) 25 mm² - WP 250/29
Output B:
- Nominal cross-section 2 x 25 mm²
- Connection capacity (flexible) 10-25 mm²
- Connection capacity (rigid) 10-25 mm²
- Connection capacity (with terminal) 16 mm² (WP 160/22)
Output C:
- Nominal cross-section 11 x 6 mm²
- Connection capacity (flexible) 2.5-6 mm²
- Connection capacity (rigid) 2.5-6 mm²
- Connection capacity (with terminal) 4 mm² (WP 40/16)
Terminal block:
- Screw-on TH35 BT/3 (code BT003)
- Interlocking TH35 BTO (cod. BT007)
- Interlocking TH35 and G32 BTU (code BT005)
There are no reviews
Data sheet
- Type: Terminal blocks
- Cross-Section: 35mm
