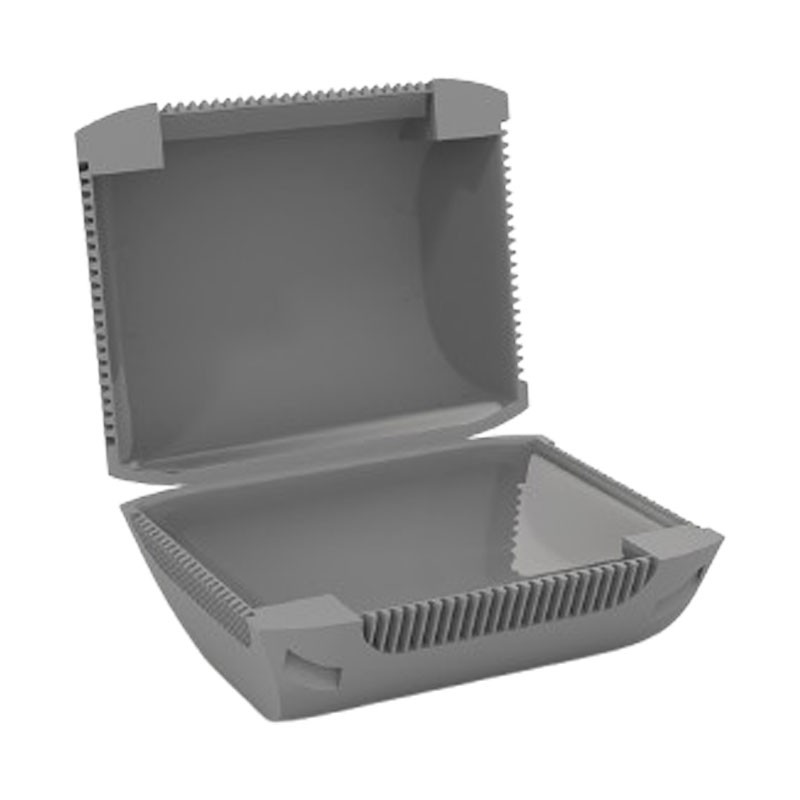

Etelec Cable protection and insulation device MINIBOX SIZE-2 MBX02
ETL MBX02
8058774268463
Cable protection and insulation device in gel Etelec, snap closure and the silicone gel contained within, isolates and protects electrical connections even in the presence of water, with the following characteristics:
-
Enclosure material: Polypropylene
-
Closure system: Snap
-
Type of protection: Silicone gel
-
Protection rating: IPX8
-
Dimensions: 42.6×32.8×22 mm
-
Compatibility: Spring Box, TBOX, terminal blocks, LED strip, BNC, F, CCTV, balun, audio cables
€2.41
Items Available: 31
: 4
Etelec protection device for connections even in humid environments

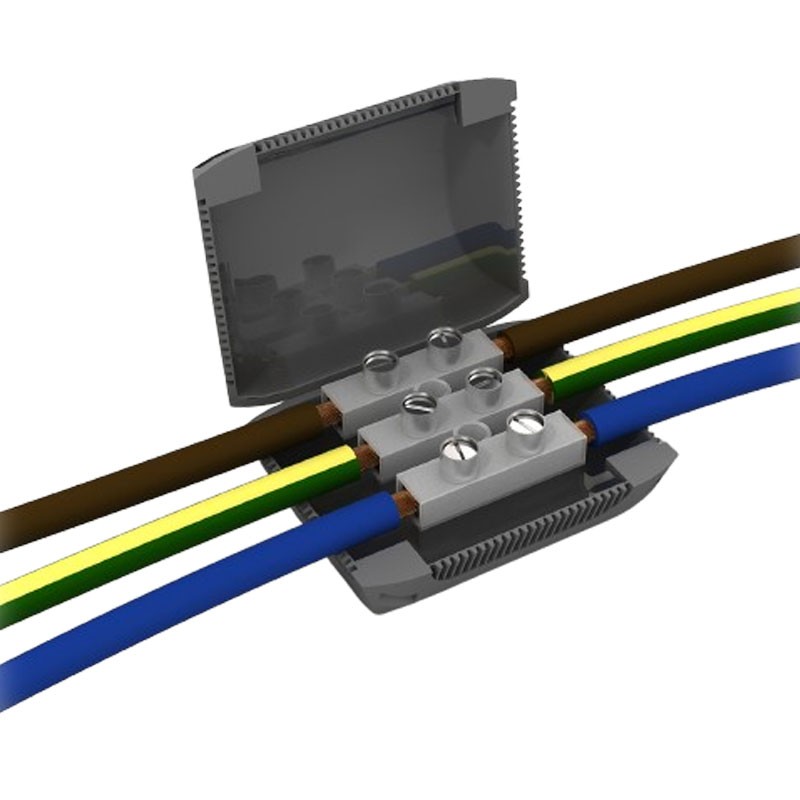

The cable protection and insulation device Etelec MINIBOX SIZE-2 is the ideal solution to ensure safety and reliability in electrical and audio/video connections. Thanks to its IPX8 protection rating, it is perfect for applications in environments exposed to humidity or direct contact with water, such as gardens, terraces, home automation systems, or external video surveillance systems.
Compact and durable structure
The structure of the MINIBOX is made of high-strength polypropylene, equipped with a snap closure that facilitates installation and ensures a perfect seal. The reduced dimensions make it extremely versatile, easily adapting to confined spaces and hard-to-reach housings.
Silicone gel: durable and non-toxic insulation
Inside the MINIBOX there is a preformed silicone gel, designed to completely wrap and insulate the connectors. This gel is non-toxic, has no expiration date, and is classified as non-hazardous according to the European Regulation No. 1272/2008 (CLP). It maintains its properties over time, ensuring constant protection from infiltration, dust, and atmospheric agents.
Maximum compatibility with the most common connectors
The device is compatible with a wide range of connectors, including:
-
Electrical connectors: Spring Box, TBOX, terminal blocks, LED strip connectors
-
Audio/video connectors: BNC, F type, balun, CCTV camera connectors, balanced audio cables
This versatility makes it suitable for multiple application fields, from the electrical sector to telecommunications, up to professional audio/video systems and home automation.
Data sheet
- Type: Connections
