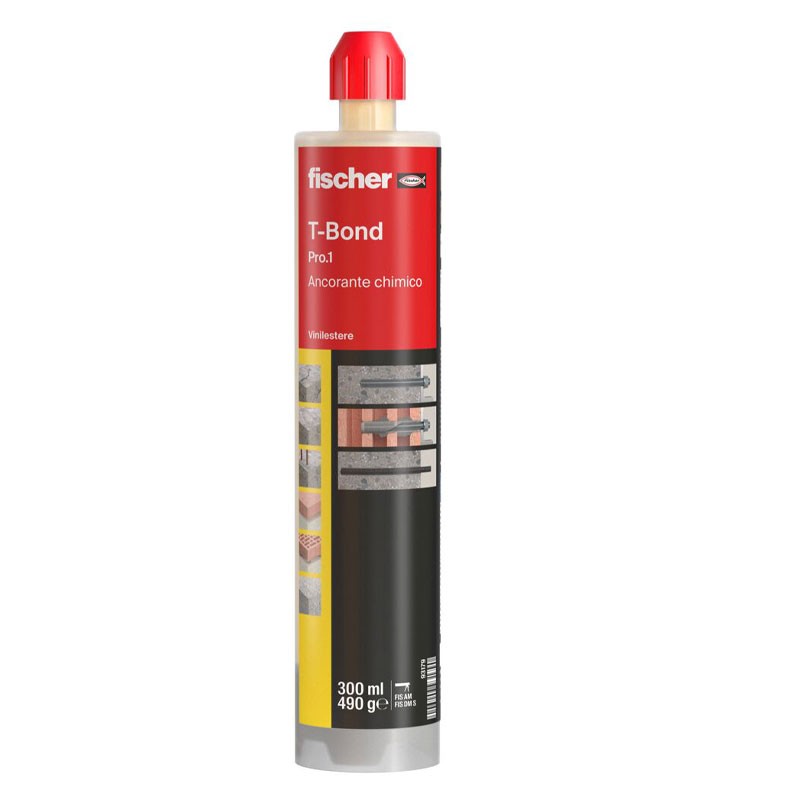

Fischer cartridge chemical anchor T Bond 00093179
Cartridge Fischer T-BOND PRO.1 hybrid two-component chemical injection anchor, in 300 ml silicone-size cartridge.
Certified for anchorages in cracked and non-cracked concrete and masonry.
Certified for application to masonry made of solid or semi-filled brick or calcium silicate.
![](https://www.elettronew.com/55340-large_default/cartridge-fischer-adhesion-layer-chemical-t-bond-00093179.jpg)
Fischer cartridge chemical anchor T Bond 00093179
Tax included
![klarna](/../img/logo-klarna-list.png)
It is also a chemical anchor perfect for building applications in hollow or lightweight concrete blocks or in cracked and non-cracked concrete from class C20/25 up to C50/60. T-Bond is certified for the use of adhesion bars with a diameter of 10 to 20 mm for fastening metal and wooden constructions, for facades, stairs, awnings, canopies, and many other everyday applications.
Its performance has been tested by EOTA, the European Organization for Technical Approval, which has certified a minimum product life of 50 years, during which time it maintains its technical characteristics unchanged.
Compared with most commercially available resins, T-Bond Pro.1 di boasts enormous flexibility in building applications, with the ability to be used without loss of strength, from -40°C to 120°C with performance therefore certified at both high and low temperatures.
Key features:
- Resin and hardener are in two separate containers and are not mixed or activated until extrusion occurs through the mixer
- Perform hole cleaning according to the directions before installation
- Extrude the resin starting from the bottom of the hole, taking care not to leave without air bubbles
- Insert the bar manually by rotating it until the base of the hole is reached
- The resin adheres to the entire surface of the anchor bar and the surface of the hole, sealing it
- The two cartridges are quick and easy to use with fischer guns
- Partially used cartridges can be reused simply by replacing the mixer
Advantages:
- Injection resin can be used in wet and water-wet holes
- The Portland cement contained in the chemical anchor T-BOND PRO.1 allows high load levels to be maintained for the temperature range of - 40 °C to +120 °C
- T-BOND PRO.1 can be used with standard silicone guns
- T-Bond PRO.1, the hybrid resin for anchors
Applications, injection resin for use with:
- FIS A threaded rod, for concrete and masonry
- Internally threaded bush RG MI, for concrete
- Internally threaded bushing FIS E, for masonry
- FIS HK mesh anchors, FIS HN sock anchors and FIS HL meshed sockets, for masonry
For fastening of:
- Metal constructions
- Wooden constructions
- Facades
- Stairs
- Steel brackets
- Machines
- Awnings
- Canopies
- Gates
- Consoles
- Grills
- Satellite antennas
Support materials- Certified for anchorages in:
- C20/25 to C50/60 class concrete, cracked (M 10, M 12, M 16 and M 20) and non-cracked
- Solid brick
- Solid calcium silicate brick
- Semi-full brick (vertically perforated) made of brick
- Semi-full (vertically perforated) calcium silicate brick
- Hollow block in normal concrete
- Lightened concrete hollow block
- Autoclaved aerated concrete (cellular)
- Certified for connection of post-installed reinforcing bars in: C20/25 to C50/60 class concrete, cracked and non-cracked, for 10 to 20 mm diameter improved adhesion bars
- Also suitable for concrete C12/15
Assembly:
- T-BOND PRO.1 is a hybrid two-component chemical injection anchor.
- Resin and hardener are in two separate containers and are not mixed or activated until extrusion occurs through the mixer
- Perform hole cleaning according to the directions before installation
- Extrude the resin starting from the bottom of the hole, taking care not to leave without air bubbles
- Insert the bar manually by rotating it until the base of the hole is reached
- The resin adheres to the entire surface of the anchor bar and the surface of the hole, sealing it
- Silicone-size cartridge in combination with fischer guns allows for quick and easy installations
- Partially used cartridges can be reused simply by replacing the mixer
Data sheet
- Type:
- Fixing Accessories
