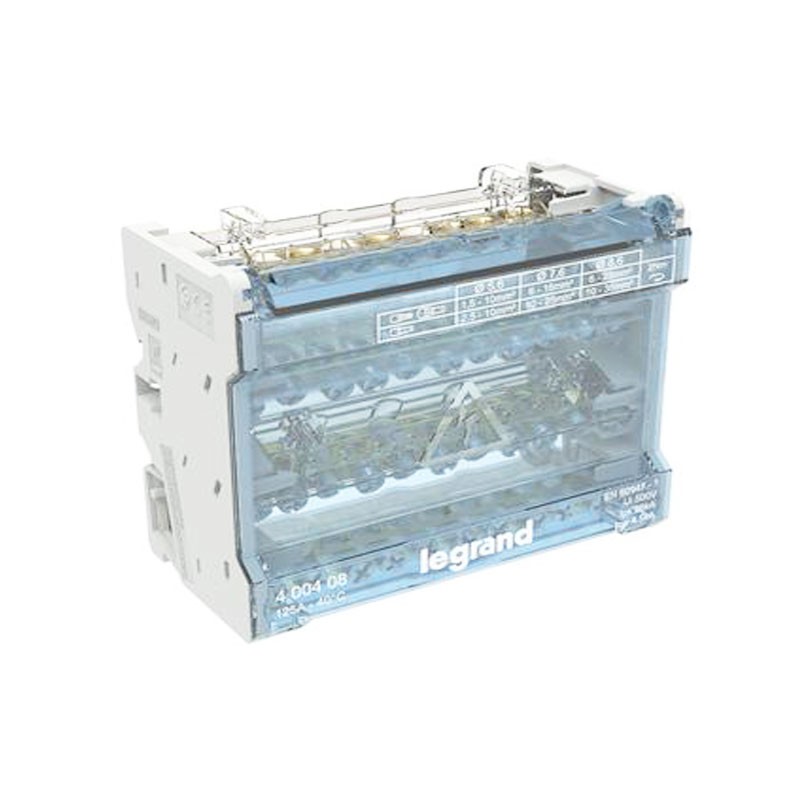

Legrand modular distribution blocks with staggered bars allow fast two-pole or four-pole distribution. Compliant with the EN 60947-1 standard, they combine electrical performance and mechanical robustness, as well as an ergonomic design to facilitate the use of this key component of electrical distribution systems.

Thanks to maximized wiring space, optimized bar orientation and adapted sizing of screw connections, wiring and connection are facilitated. In addition, the input and outputs of large sections are staggered between each bar to avoid overlapping of large conductors.

The connection points are also sufficiently spaced to allow the use of standard ferrules.

A transparent insulating protection equips each brass bar for maximum safety. In addition, a system integrated into this protection stops accidental unscrewing of the screws of unconnected connections. A protection also insulates the rear of the distribution block from the rail.

A transparent, removable and 180° rotatable protection cover (up to 125 A) allows adaptation to all wiring situations.

Advantages:

• Distributors for DIN35 rail installation with marking on the transparent cover of all electrical parameters
• 180° rotating and removable cover with improved internal visibility of connections
• Separation between input and output holes
• Staggered holes for cables of larger section and distance to facilitate wiring and avoid confusion when using cables with ferrules
• Anti-loss screw system.

Features:

• Voltage 400Vac
• Current In 125A
• Modules 6
• Poles 4P
• Protection degree IP20
