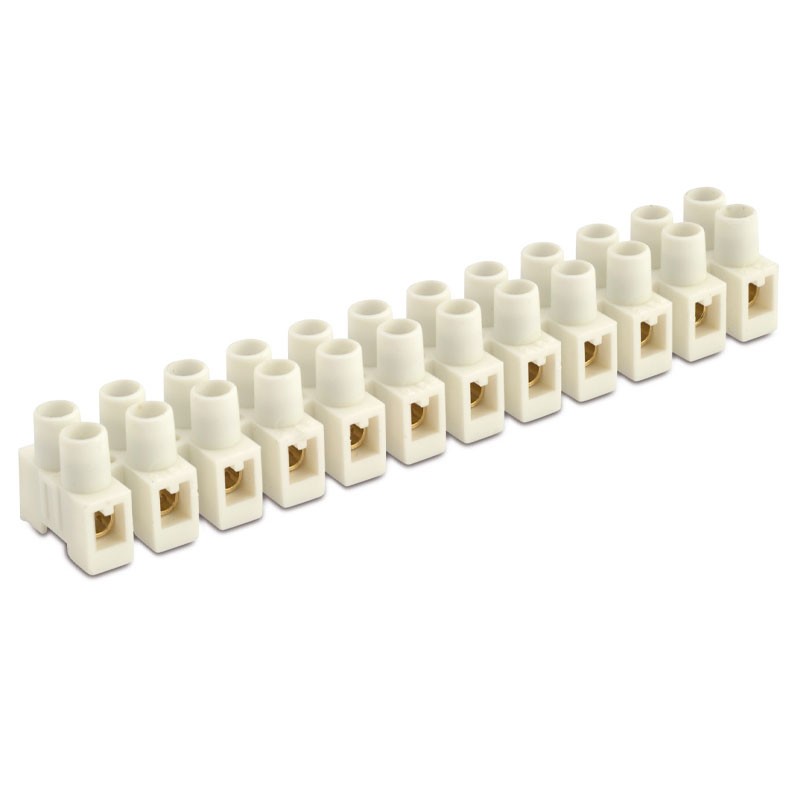

BM MAMMUT terminal block 25 mm 12 poles 9204
BMM 9204
8013629920408
BM series 920 polypropylene multiple terminal block with the following features:
- 12 poles
- Insulating body: polypropylene (PP)
- Color: natural
- Conductive body: brass
- Captive screws made of: galvanized steel
- Self-extinguishing level: EN 60335-1: 2002+A2:2006 (para. 30.2.3), EN 60695-2-10 at 850 °C, EN 60695-2-11
- Conductor type: rigid and flexible
- Max operating temperature: 85 °C
- Test voltage: 3000V
- Rated voltage: 500V
- Test current: 101 amperes
- Stripping length: 11.5 mm
- Screw: M5 - 0.8
- Degree of protection: IP20
- Cross-section: 25 mm²
€10.24
Items Available: 128
: 2
- Reference Standards: EN 60998-1: 2004, EN 60998-2-1: 2004, EN 60335-1: 2002 + A2: 2006 (Sec. 30.2.3), IEC/EN 60695-2-11

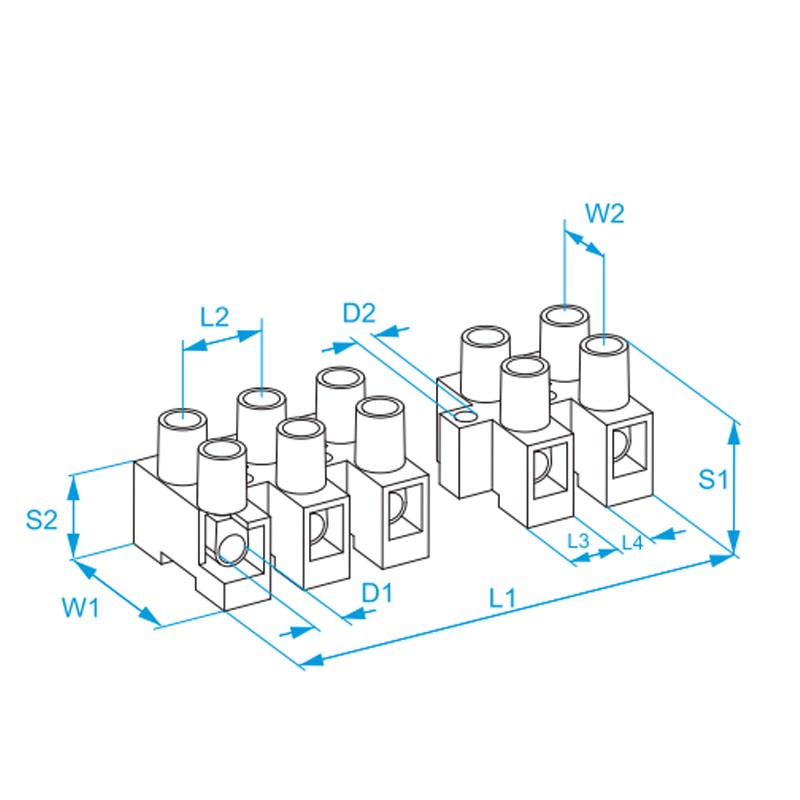

- Dimensions: L1 (mm) L2 (mm) L3 (mm) L4 (mm) W1 (mm) W2 (mm) S1 (mm) S2 (mm) D1 (mm) D2 (mm): 228 19.5 14 5.3 35.2 15 33.5 19 7.2 4.1
There are no reviews
Data sheet
- Type: Terminal blocks
- Cross-Section: 25mm
