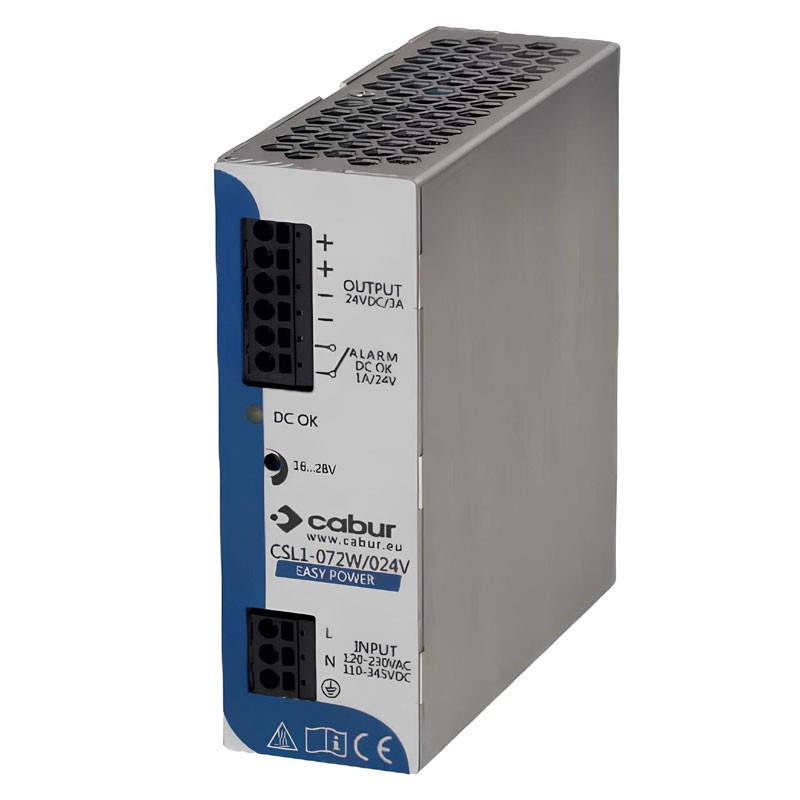

Cabur Easy Power switching power supply 24V 3A 72W IP20 XCSL1072W024VAA
CBR XCSL1072W024VAA
8017963183215
Cabur Easy Power switching power supply, ideal for standard applications. Full protection, alarm contact, DIN rail installation, compact and reliable, with the following features:
-
Input voltage: 120-230V AC/100-370V DC
-
Output voltage: 24V DC (adjustable 16-28V DC)
-
Output current: 3A (rated) - 6A (overload)
-
Short circuit current: 15A for 50ms
-
Mounting: Vertical DIN rail
-
Degree of protection: IP20
-
Material: aluminum
-
Dimensions: 40x115x115 mm (WxHxD)
€41.64
Items Available: 3
: 2
Cabur Easy Power Supply - Efficiency and Safety
The Cabur power supply is the professional solution for ensuring continuous and safe power supply in switchboards, industrial automations and standard installations. With its advanced features and built-in protections, it offers reliable performance even in critical environmental conditions.
Wide and Universal Input Voltage
Supports a wide range of input voltages:
- AC: 85 to 264 Vac (nominal 120 to 230 Vac)
-
DC: 100 to 370 Vdc (derating below 130 Vdc)
This makes it suitable for global single-phase and DC power systems.
Adjustable Output and High Reliability
The output is adjustable from 16 to 28 Vdc, with a nominal voltage of 24 Vdc ±1% and a maximum current of 3 A (72W). Built-in protections include:
-
Current limitation (6 A for 30s)
-
Short-circuit protection (up to 15 A for 50ms)
-
Overtemperature and overvoltage input/output.
In addition, the "DC OK" LED enables quick monitoring of operational status.
Compact and Versatile Design
With dimensions of 40x115x115 mm and aluminum body, the power supply is:
-
Installable vertically on a DIN rail
-
Equipped with terminals for cables up to 2.5 sq. mm
-
Ideal for automation panels, civil and industrial electrical systems
A minimum distance of 20 mm from other components is recommended to ensure proper thermal dissipation.
Technical Characteristics Cabur switching power supply
| Parameter | Value |
|---|---|
| Input voltage | 120-230 Vac / 100-370 Vdc |
| Output voltage | 24 Vdc ±1% (adjustable 16-28 Vdc) |
| Output current | 3 A nominal (72 W), 6 A under overload |
| Short-circuit current | 15 A for 50 ms |
| Efficiency | 87% (at 120 / 230 Vac) |
| Protection | Short circuit, overvoltage, overtemperature |
| Alarm contact | 1 A max @ 24 Vdc (Uout > 22 V) |
| Status LEDs | DC OK |
| Mounting | Vertical DIN rail |
| Operating temperature range | -20 °C to +70 °C (derating > 50 °C) |
| Degree of protection | IP20 |
| Material | Aluminum |
| Dimensions (W x H x D) | 40 x 115 x 115 mm |
There are no reviews
Data sheet
- Type: Power supplies
