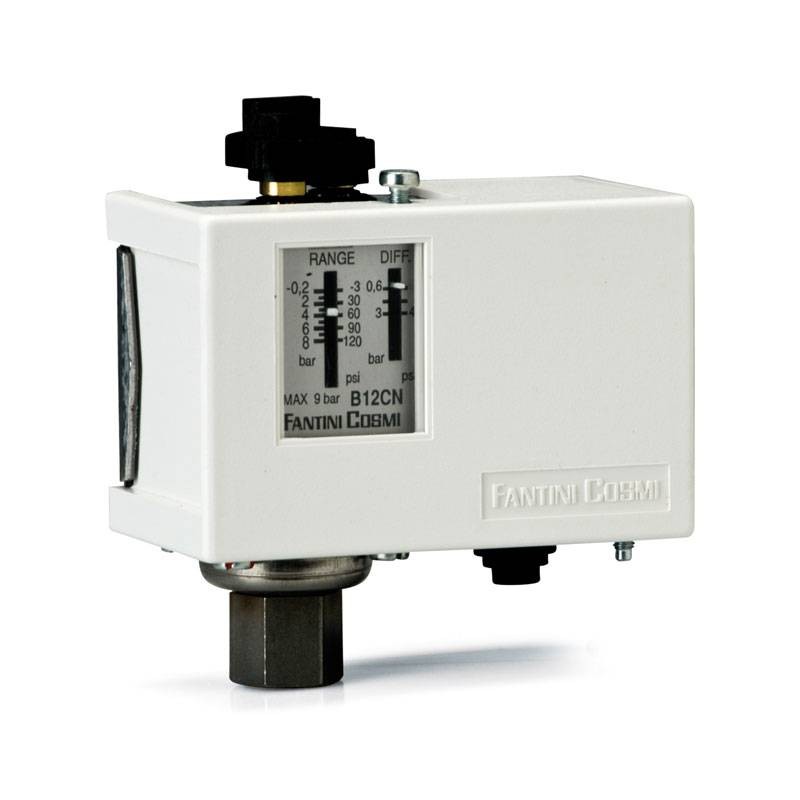

Fantini Cosmi regulating pressure switch 0.2-8 bar B12CN
FAN B12CN
8025863000730
Fantini Cosmi adjustable differential pressure switch, for control and regulation of nonexplosive fluids and gases, Suitable for compressor systems, in boilers, tanks, autoclaves, in ventilation systems, lubrication:
-
0.2 ÷ 8 bar scale
-
Differential (must be subtracted from the scale value) 0.6 ÷ 3
-
Maximum pressure sensitive element bar 9
-
G 1/4 inch female connection
-
Degree of protection IP40
€79.46
Items Available: 35
: 9
Fantini Cosmi regulating pressure switch up to 0.2-8 bar B12CN
Installation:
-
Direct branch installation
-
Connection to the pressure switch element G 1/4 inch female
-
In the case of fluids with a temperature higher than the maximum indicated, connect the pressure switch to the pipeline by interposing a spiral-wound metal tube to allow heat dissipation
-
Metal bracket mounting possible, except for versions in watertight enclosure
Operation
-
When pressure increases: opens 1-2 closes 1-4
-
In the pressure switch with manual lockout and re-engagement at maximum pressure, re-engagement may occur when the pressure is below the value set on the differential
Technical Characteristics
| Feature | Detail |
|---|---|
| Sensing element | Stainless membrane, laser welded |
| Frame | Metallic |
| Lid | Shock-resistant thermoplastic material |
| Connection outlet | With PVC grommet |
| Differential | Adjustable |
| Connection | G 1/4 female (wrench 17 mm) |
| Maximum controlled fluid temperature | 120°C |
| Permissible temperature of pressure switch body | -35 ÷ 60°C |
| Storage and transport temperature | -35 ÷ 60°C |
Electrical Characteristics
| Feature | Detail |
|---|---|
| Rated insulation voltage Ui | 415V~ |
| Rated continuous service current Ith | 16A |
There are no reviews
Data sheet
- Type: Pressure switches
- Connection: F
- Connections: 1/4 inches
